Curograph | 710
Toyo Seiki · Others

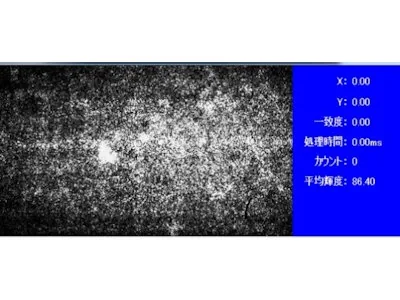

The drying and curing time of paints, inks, adhesives, etc. has traditionally been evaluated by the contact method. This non-contact measurement device, which adopts a laser interference technology, applies the laser light to sample surface and processes the spotted interference fringes pattern generated in the reflected laser light with its unique image processing technology.
เอกสารดาวน์โหลด
ข้อมูลจำเพาะ
| Model | H-1 |
|---|---|
| Measurement time | 1 minutes to 1200 hours, depending on measurement intervals |
| Measurement interval | 0.05 to 120 seconds |
| Laser | Red semiconductor Laser / Emission wavelength 640nm Class 3B / Maximum output less than 30mW |
| Measurement results | Drying or curing time, and its process (graph) |
| Heating plate | Size: 150mm × 40mm Material: Brass |
| Heater capacity | 300W |
| Temperature range | RT or RT+20°C to 300°C (PID control system) |
| C-MOS camera | Monochrome 2560×2048 pixels Pixel pitch 5μm |
| PC & software | Provided as standard accessories |
| Power supply | Single-phase, AC100V, 50/60Hz, 10A |
| Dimensions | W455 × D294 × H570mm |
| Weight | Approx. 20kg |
