Measuring Single-screw Extruders for Labo Plastomill | 655
Toyo Seiki · Mixing & Kneading / Extrudability / Stretching
In small size extruder test of Labo Plastomill, in addition to detecting torque, the pressure and temperature (maximum 4 points each) are also continuously detected during molding by installing resin temperature sensor and resin pressure sensor in the cylinder or die and the values are displayed on the monitor. Various kinds of molding dies and take-off devices are also available, allowing you to determine molding conditions by simulating and obtain various information such as pressure, temperature, torque, specific energy (MJ/m3) and extrusion amount at each rpm (each shear rate) in addition to detecting mold status such as extrusion mold product’s fish eye, dispersion, transparency and gloss by using a small quantity of sample.
In small size extruder test of Labo Plastomill, in addition to detecting torque, the pressure and temperature (maximum 4 points each) are also continuously detected during molding by installing resin temperature sensor and resin pressure sensor in the cylinder or die and the values are displayed on the monitor.
Various kinds of molding dies and take-off devices are also available, allowing you to determine molding conditions by simulating and obtain various information such as pressure, temperature, torque, specific energy (MJ/m3) and extrusion amount at each rpm (each shear rate) in addition to detecting mold status such as extrusion mold product’s fish eye, dispersion, transparency and gloss by using a small quantity of sample.
Single-screw Extruders

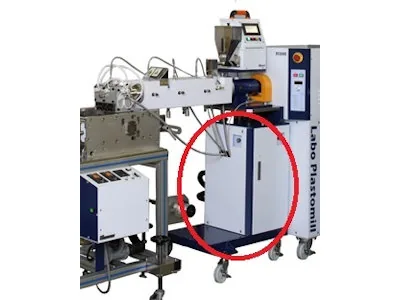

Dedicated mobile benches (to be selected mandatory)
Die Heads
Pressure and Temperature Transducers
Feeding System
Film/Sheet Take-off Units
Pelletizers
Key features
• Example of application
• Simulation test using various kinds of molding die head
• Viscosity measuring test by slit die (measuring apparent and true values of shear rate, shear stress, viscosity)
• Specific energy measuring test (evaluation of productivity)
• Filter pressure resin test (measuring gel substance in resin)
• Die swell measuring test (resin(s elasticity recovery swelling test)
• Melt strength test (measuring melt tension and breaking speed)
• Garvey die test (ASTM D2230, rubber moldability evaluation)
• Compounding and pelletization
• Fixed quantity extrusion test by gear pump (pressure/revolution control)
• Inflation take-off bubble tension measuring test (Take-off unit tension measuring device)
ตารางเปรียบเทียบรุ่น
| Model | D2015 | D2020 | D2025 |
|---|---|---|---|
| Screw diameter | 20mm | ||
| L/D | 15 | 20 | 25 |
| Max. temperature | 250°C | 350°C | |
| Heating system | Electric | ||
| Heating zone (cylinder) | 2 | 3 | |
| Vent port | N/A | 1 | |
| Standard die head | Garvey die | Strand die (∅3mm x 1) | |
| Standard screw | Full flight (CR1.6) | Full flight (CR2.5) | Vent screw |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
| Mobile bench for extruder | KEXT2 | ||
|---|---|---|---|
| KEXT1 |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
| Strand die | ST1 | ||
|---|---|---|---|
| ST3S | |||
| T die | T25F | ||
| T60F | |||
| T120C | |||
| T150C | |||
| Inflation die | I25C | ||
| I25S | |||
| Tube die | TU10 | ||
| TU20 | |||
| Wire coating die | WD | ||
| Slit die | CAPF2 | ||
| Capillary die | CAPR | ||
| Garvey die | GD |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
| Pressure transducer | PS | -Mercury fill / -Pressure range: Max. 50MPa / -Permissible temp.: Max. 400°C | |
|---|---|---|---|
| PSY | |||
| PSH | |||
| PSN | -NaK fill / -Pressure range: Max. 50MPa / -Permissible temp.: Max. 400°C | ||
| Pressure/temperature transducer | PTS | ||
| PTSY | |||
| PTSN | |||
| Temperature transducer | TS |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
| Constant feeder | RCF-1R/RCF-1L | Proportional control of extruder screw rotation and feeder screw rotation. |
|---|---|---|
| Gravimetric feeder | WCF-1R/WCF-1L | The feeder is placed on an electronic balance, the weight of the sample to be discharged from the feeder is weighed from the overall feeder weighing value, and the screw rotation of the feeder is controlled to provide a fixed-volume feed. |
| Forced feeder | FH2 | The lower part of the agitator blade in the hopper is screw-shaped, and a variable-speed motor forces the sample into the hopper. / Funnel-flow, rat-hole, bridges, etc. occur in the hopper can be suppressed. |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
| Film/sheet take-off unit | FT2W20 | W1200 × D720 × H1200mm | 170kg |
|---|---|---|---|
| FT3W20 | W1200 × D720 × H1200mm | 180kg | |
| Inflation (blown film) take-off unit | INT | W800 × D800 × H2400mm | 250kg |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
| Cold cut pelletizer | PETEC4 | W480 × D1150 × H1230mm | 95kg |
|---|---|---|---|
| Hot cut pelletizer | PETEH | W480 × D1150 × H1230mm |
