Mini-Torque Rheometer | Labo Plastomill™ Micro | 666
Toyo Seiki · Mixing & Kneading / Extrudability / Stretching

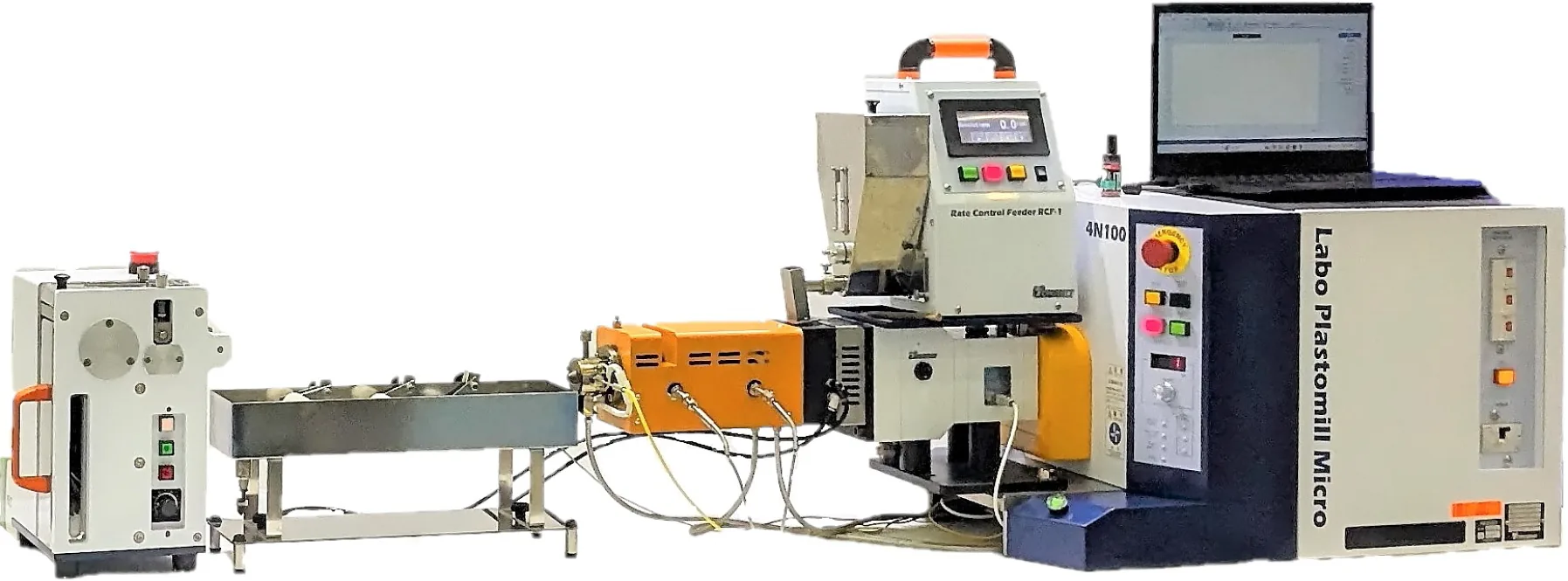

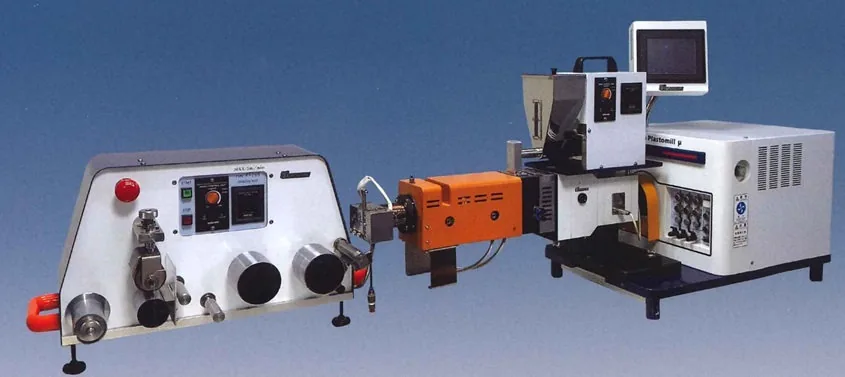

The Labo Plastomill™ Micro is a bench-top experimental system for evaluating kneadability and extrusion properties of very small quantities of laboratory synthesized samples, nanoparticle samples (such as carbon nanotubes, silica, titanium oxide), specialized and expensive samples, and composite materials in nature etc.
เอกสารดาวน์โหลด
ข้อมูลจำเพาะ

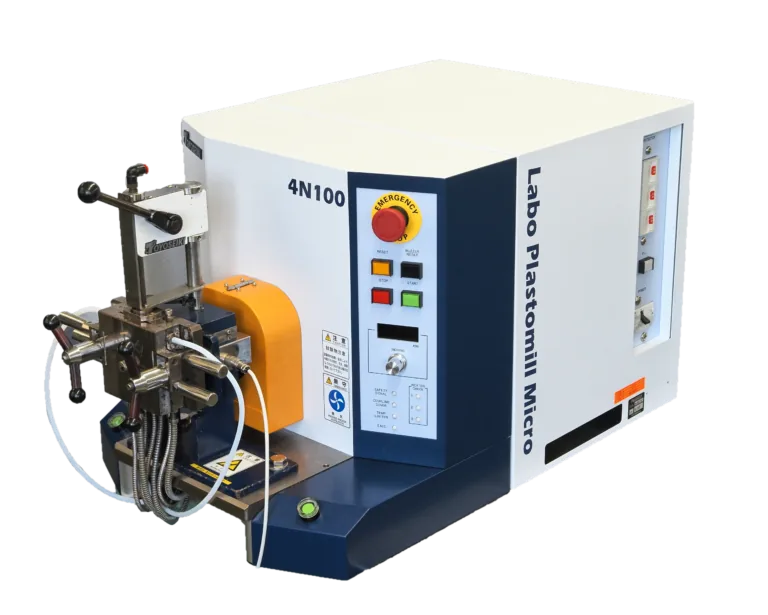

| Model | 4N100 |
|---|---|
| Max. torque | 40Nm |
| Max. speed | 100rpm |
| Torque detection | By load cell |
| Safety devices | Torque limiter, temperature limiter, emergency stop switch, mixer disassembly safety circuit, leakage breaker, SSR abnormal detection, overheat detection |
| Power supply | Three-phase, AC200V, 50/60Hz, 5.2kVA (or specify) |
| Compressed air requirement | 0.5MPa |
| Dimensions | W470 x D750 x H440mm (base unit) |
| Weight (approx.) | 62kg (base unit) |

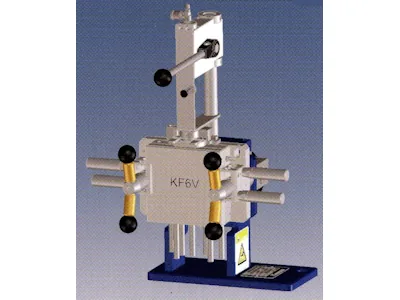

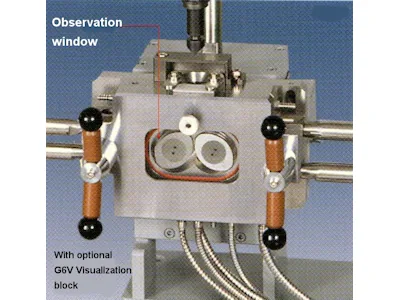

| Model | KF6V |
| Chamber capacity (approx.) | 5 or 6cm3 |
| System | Intermeshing type co-directional rotation |
| Max. speed | 300rpm (3x speed) |
| Temperature range | RT+100°C to 350°C (water cooling is possible under 100°C) |
| Heating zones | • Heating: 3 zones (cartridge heater) / • Cooling: 1 zone (#2 block) / with temperature trasducer |

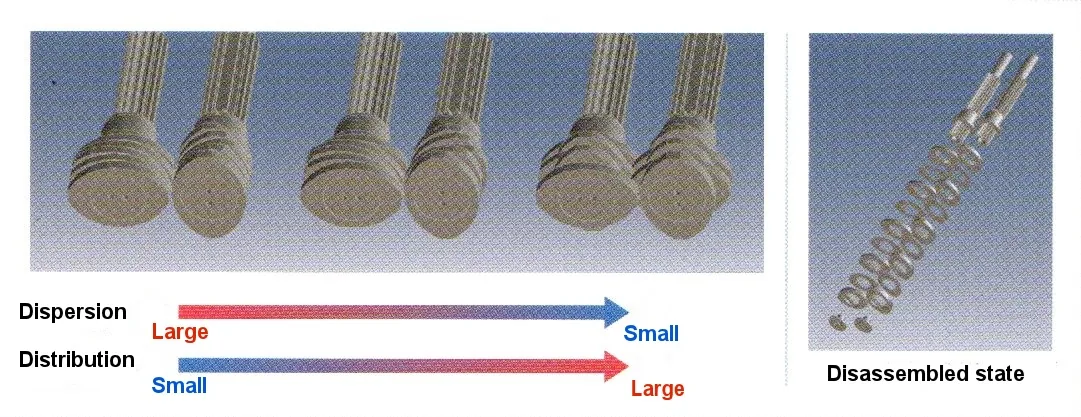

| Blade shape | 2 lobe disc, 5-pieces combination type / • KH6HB – high shear blades (standard feature) / • KF6LB – low shear blades (option) |
| Sample insertion port | ∅15mm |
| N2 purge | Nitrogen gas can be supplied from the top of the ram |
| Material | SUS440C |
| Safety feature | Shear pin |
| Power supply | Single-phase, AC100V, 50/60Hz, 1.5kVA |
| Dimensions | W290 x D260 x H370mm |
| Weight (approx.) | 20kg |

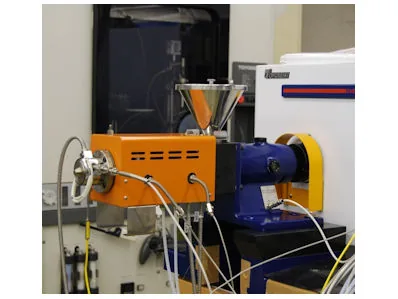

| Model | D1220 |
| Screw diameter | 12mm |
| L/D | 20 |
| Max. temperature | 350°C |
| Heating system | Electric |
| Heating zone (cylinder) | 2 |
| Die head | • Strand die (∅2.5mm x 1)...standard feature / • T-die (W60 or W80mm)...option / • Tube die (Inner dia 6mm, outer dia 8mm)...option |
| Standard screw | Full flight (CR2.5) |
| Model | FT2B8 |
| Roll diameter | ∅80mm |
| Roll width | 80mm |
| Take-off speed | 0.3 to 5m/min. |
| Temperature | Max. 80°C |
| Power supply | Single-phase, AC100V, 50/60Hz, 3A |
| Dimensions | W630 x D360 x H360mm |
| Weight (approx.) | 36kg |
| Model | MPETEC1 |
| Take-off speed | 2 to 8m/min. |
| Pellet length | 3mm |
| Water bath | approx. 1L |
| Water supply | 0.1MPa, 3L/min. |
| Dimensions | W260 x D345 x H380mm (main unit) / W450 x D150 x H220mm (water bath) |
| Weight (approx.) | 10kg (main unit) / 2kg (water bath) |
ตารางเปรียบเทียบรุ่น
| Item | Value |
|---|---|
| Model | 4N100 |
| Max. torque | 40Nm |
| Max. speed | 100rpm |
| Torque detection | By load cell |
| Safety devices | Torque limiter, temperature limiter, emergency stop switch, mixer disassembly safety circuit, leakage breaker, SSR abnormal detection, overheat detection |
| Power supply | Three-phase, AC200V, 50/60Hz, 5.2kVA (or specify) |
| Compressed air requirement | 0.5MPa |
| Dimensions | W470 x D750 x H440mm (base unit) |
| Weight (approx.) | 62kg (base unit) |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
| Item | Value |
|---|---|
| Model | KF6V |
| Chamber capacity (approx.) | 5 or 6cm3 |
| System | Intermeshing type co-directional rotation |
| Max. speed | 300rpm (3x speed) |
| Max. torque | 40Nm |
| Temperature range | RT+100°C to 350°C (water cooling is possible under 100°C) |
| Heating zones | • Heating: 3 zones (cartridge heater) / • Cooling: 1 zone (#2 block) / with temperature trasducer |
| Blade shape | 2 lobe disc, 5-pieces combination type / • KH6HB – high shear blades (standard feature) / • KF6LB – low shear blades (option) |
| Sample insertion port | ∅15mm |
| N2 purge | Nitrogen gas can be supplied from the top of the ram |
| Material | SUS440C |
| Safety feature | Shear pin |
| Power supply | Single-phase, AC100V, 50/60Hz, 1.5kVA |
| Dimensions | W290 x D260 x H370mm |
| Weight (approx.) | 20kg |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
| Item | Value |
|---|---|
| Model | D1220 |
| Screw diameter | 12mm |
| L/D | 20 |
| Max. temperature | 350°C |
| Heating system | Electric |
| Heating zone (cylinder) | 2 |
| Die head | • Strand die (∅2.5mm x 1)...standard feature / • T-die (W60 or W80mm)...option / • Tube die (Inner dia 6mm, outer dia 8mm)...option |
| Standard screw | Full flight (CR2.5) |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
| Item | Value |
|---|---|
| Model | FT2B8 |
| Roll diameter | ∅80mm |
| Roll width | 80mm |
| Take-off speed | 0.3 to 5m/min. |
| Temperature | Max. 80°C |
| Power supply | Single-phase, AC100V, 50/60Hz, 3A |
| Dimensions | W630 x D360 x H360mm |
| Weight (approx.) | 36kg |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
| Item | Value |
|---|---|
| Model | MPETEC1 |
| Take-off speed | 2 to 8m/min. |
| Pellet length | 3mm |
| Water bath | approx. 1L |
| Temperature | Max. 80°C |
| Power supply | Single-phase, AC100V, 50/60Hz, 3A |
| Water supply | 0.1MPa, 3L/min. |
| Dimensions | W260 x D345 x H380mm (main unit) / W450 x D150 x H220mm (water bath) |
| Weight (approx.) | 10kg (main unit) / 2kg (water bath) |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
