Fully-Automated Melt Flow Index Tester / Melt Flow Rater | 520-D-M
Toyo Seiki · Melt Flow Index (MFR, MVR) / Melt Viscosity
The Melt Flow Rater model D-M is a compact/bench-top Melt Flow Index Tester for determination of MFR (melt mass-flow rate) and MVR (melt volume-flow rate) in fully automatic mode according to ISO 1133 and ASTM D1238. Once samples are loaded to magazine, the sequence from sample filling to cylinder, MFR/MVR measurement, residue purging, data collection, and cleaning (cylinder/die/piston) is performed without human intervention.
เอกสารดาวน์โหลด
ข้อมูลจำเพาะ
| ISO 1133 | Plastics-Determination of the melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of thermoplastics |
|---|---|
| ASTM D1238 | Standard Test Method for Melt Flow Rates of Thermoplastics by Extrusion Plastometer |
| Model | D-M |
| Sample magazine | • 10 individual measurements (standard) / • 40 individual measurements (optional) |
| Capacity of sample cups / (Single magazine chambers) | • 6g (standard) / • 9g (optional) |
| Test temperature | 300°C max. |
| Test load | 0.325kg, 2.160kg, 5.000kg, 10.000kg |
| Sample filling | Automatic |
| Weight lifting | Automatic |
| Residue purging | Automatic |
| Cylinder cleaning | Automatic |
| Piston cleaning | Automatic |
| Die cleaning | Automatic |
| PC & testing software | Standard feature |
| Electrical | Single-phase, AC100V, 50/60Hz, 1.5kVA (or specify) |
| Compressed air | 0.6MPa |
| Dimensions | W900 × D700 × H1060mm |
| Net weight (approx.) | 320kg |
ตารางเปรียบเทียบรุ่น
| Item | Value |
|---|---|
| ISO 1133 | Plastics-Determination of the melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of thermoplastics |
| ASTM D1238 | Standard Test Method for Melt Flow Rates of Thermoplastics by Extrusion Plastometer |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
| Item | Value |
|---|---|
| Model | D-M |
| Sample magazine | • 10 individual measurements (standard) / • 40 individual measurements (optional) |
| Capacity of sample cups / (Single magazine chambers) | • 6g (standard) / • 9g (optional) |
| Test temperature | 300°C max. |
| Test load | 0.325kg, 2.160kg, 5.000kg, 10.000kg |
| Sample filling | Automatic |
| Weight lifting | Automatic |
| Residue purging | Automatic |
| Cylinder cleaning | Automatic |
| Piston cleaning | Automatic |
| Die cleaning | Automatic |
| PC & testing software | Standard feature |
| Electrical | Single-phase, AC100V, 50/60Hz, 1.5kVA (or specify) |
| Compressed air | 0.6MPa |
| Dimensions | W900 × D700 × H1060mm |
| Net weight (approx.) | 320kg |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
| Code | Name | |
|---|---|---|
| D-M-A | Procedure A automation unit | |
| D-HL | 21.6kg test load option (including automatic test load changing unit) | |
| K | Automatic test load changing unit | |
| D-A | Dry air supply unit for magazine / Note: This function is intended to prevent samples dried in a oven, etc. from absorbing moisture again, and is not intended to dry samples by itself. | |

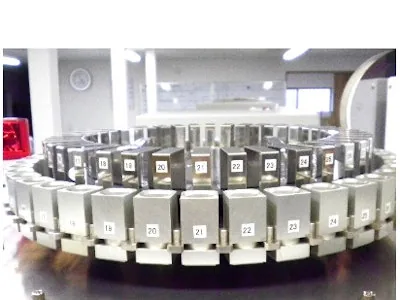

| D-40L | Sample magazine for 40 individual measurements (Including large size sample cups) | |
| Dedicated bench / (When D-40L option is selected, the use of dedicated bench is recommended) |
