- ISO 289: 2018
- ASTM D1646
- ASTM D 3346
- DIN 53523
- BS 903
- AFNOR T43-00
- BS 1673
- GOST 10722-76
- JIS K6300
- DIN 53523 Part 4
- AFNOR T43-00/005
- TGL 25-689

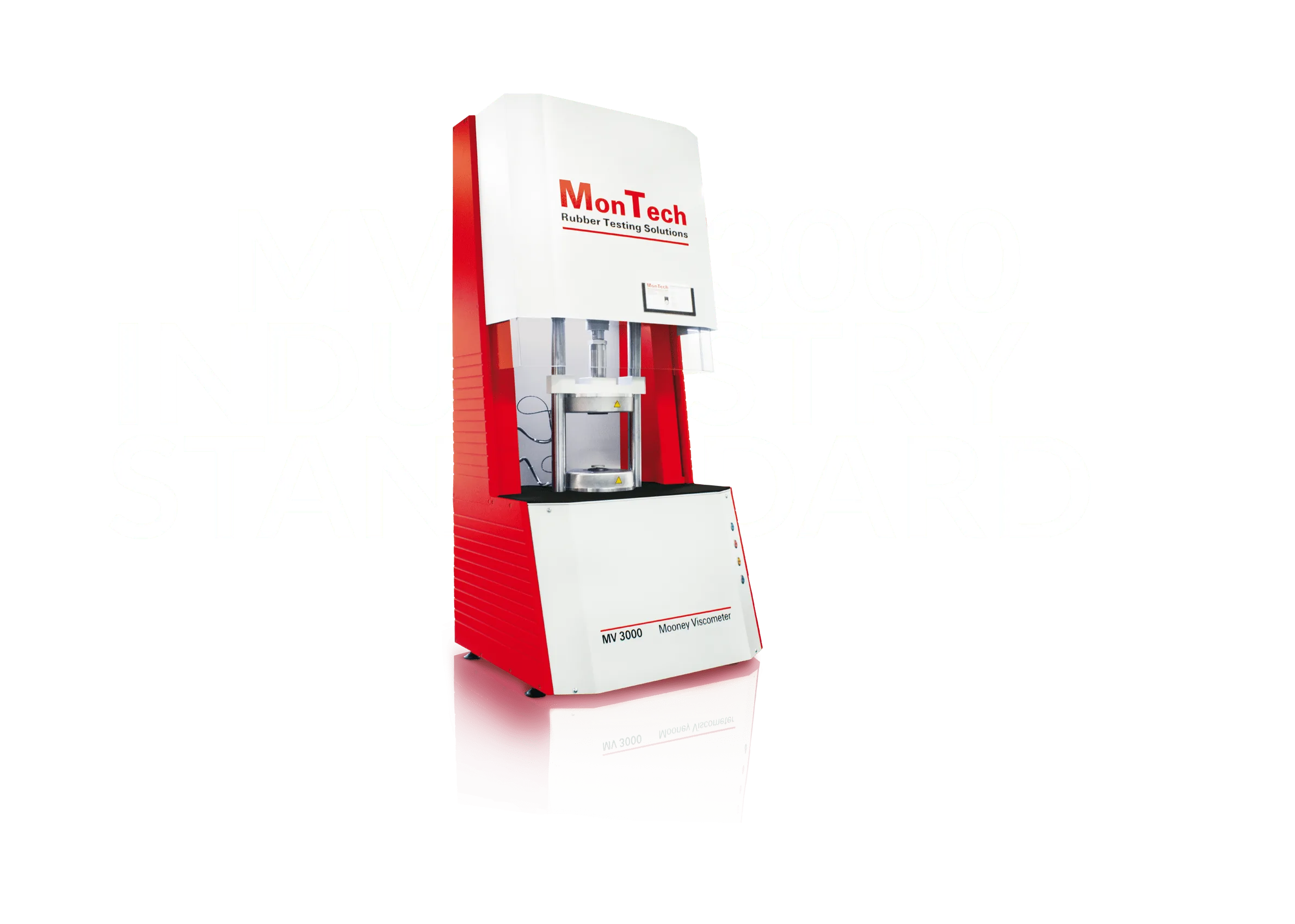

MV 3000 Mooney Viscosimeter
MonTech · Mooney Viscosimeter
Standard instrument for QC and R&D testing according to international standards.
เอกสารดาวน์โหลด
- MonTech General Cataloguemontech-product-catalogue-2023.pdfดาวน์โหลด PDF
- MonTech Specimen and Die cuttingmontech-specimen-and-die-cutting-2021.pdfดาวน์โหลด PDF
- MV 3000 datasheetmooney-viscometer-2021.pdfดาวน์โหลด PDF
ข้อมูลจำเพาะ
| International standards | ISO 289:2018, ASTM D 1646, ASTM D 3346, DIN 53523, BS 903: Part 58, AFNOR T43-00/005, BS 1673, GOST 10722-76, JIS K6300, TGL 25-689, ... |
|---|---|

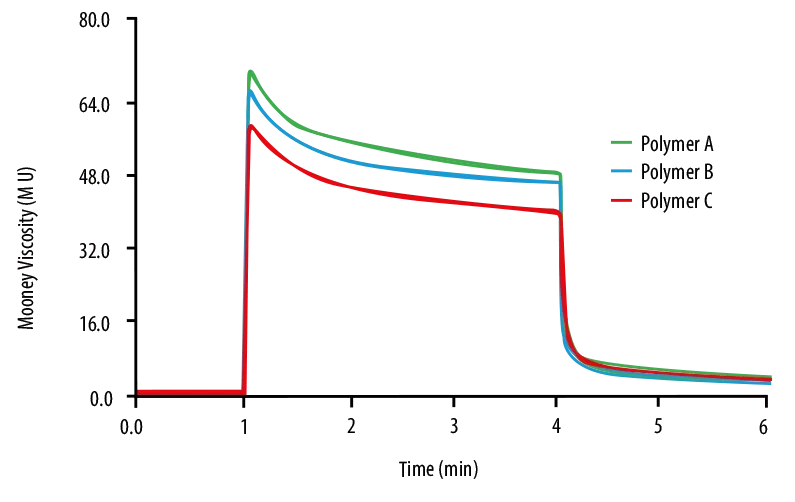

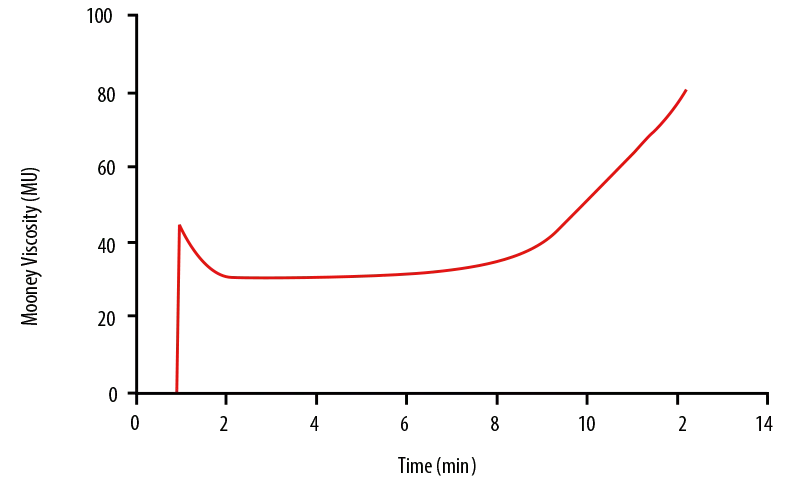

| Test modes | Mooney Viscosity, Mooney Scorch, Stress Relaxation, Mould release, Delta Mooney |
| Rotor | Large (38.10 mm) and Small (30.48 mm) Sealed, with longlife seals |
| Rotor speed | 2.00 turns per minute (0.209 Radians / second) |

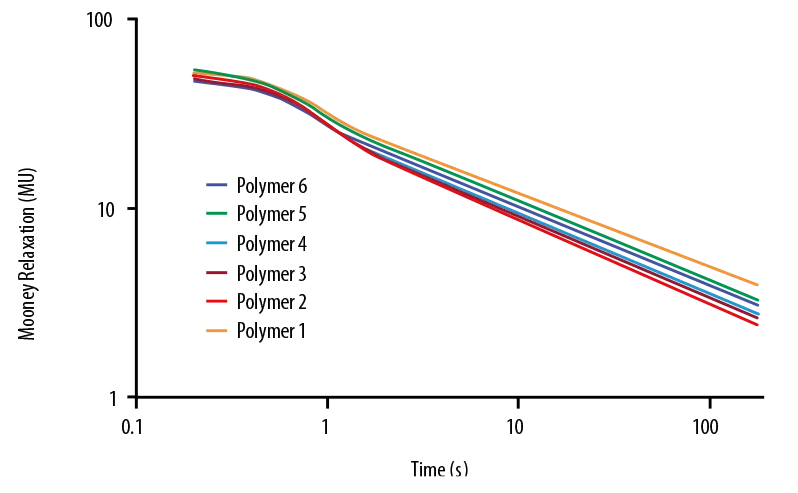

| Stress Relaxation | According to ISO 289:2018, DIN 53523 Part 4 |
| Temperature control system | Ambient to 232 °C, precision +/- 0.03 °C, digital, microprocessor controlled |
| Units | Mooney - units (MU), Temperature (°C, °F), Time (min - min / min - sec) |
| Closing force | 11.5 kN |
| Force measurement | In-line torque transducer |
| Rotor shaft seal | Standard or longlife seals available |
| Torque range | 0.01 to 230 MU |
| Sample volume | Two specimens having a combined volume of 25 cm³ |
| Temperature check system | Recordings of the temperature gradient on the screen, PID microprocessor monitored |
| Calibration | Fully automatic by built in calibration weights, Software guided |
| Data Interface | Ethernet (10/100 MBit), USB (int.), CF card (int.), RS232 (opt.) |
| Data points | Over 3500 data points available Including: Initial viscosity, ML / ML 1+X, Y+X+Z, Scorch viscosities and cure times, Stress Relaxation (log-log), Slope, Intercept, Regression coefficient, Multi-zone Stress Relaxation |
| Pneumatics | min. 4.5 Bar / 60 psi |
| Electrical | 200-240 V, 6 Amps, 47-63 Hz, Single phase |

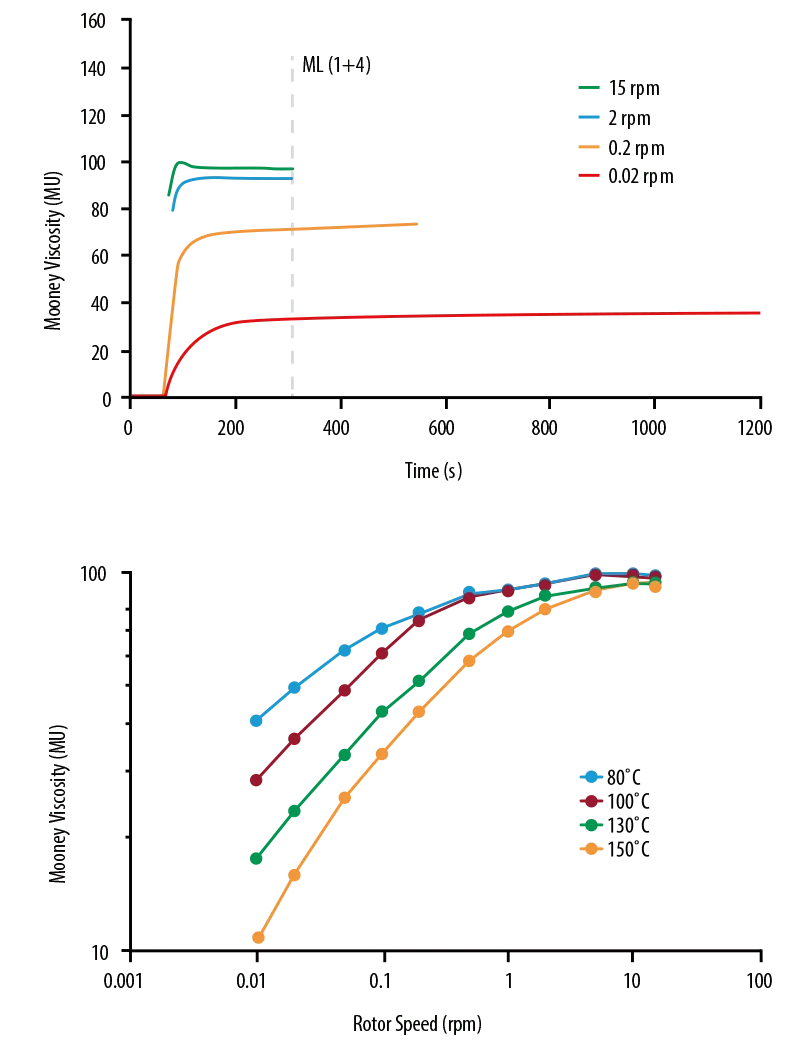

| Instrument options | - Instrument control panel with 5" touchscreen display and printer - Easy access and encapsulated electronic system - Rotor detection - Reinforced drive shaft and rotor to 300MU - Variable Rotor speed from 0.50 to 10.00rpm - Variable Rotor speed from 0.10 to 20.00rpm - Double channel forced air cooling system - Low-temperature cooling system MCool 10 - M-VS 3000 constant volume sample cutter Mooney Viscosity Mooney Scorch Stress Relaxation Calculated results 152 cm 60 cm 68 cm |
| Die configuration / Rotor | According to international standards large (ø 38.1 mm) and small (ø 30.48 mm) Rotor |
| Measured data | Mooney - value (MU) Temperature (°C, °F) Time (min - min / min - sec / sec) |
