ISO 6502
ASTM D5289
DIN 53529

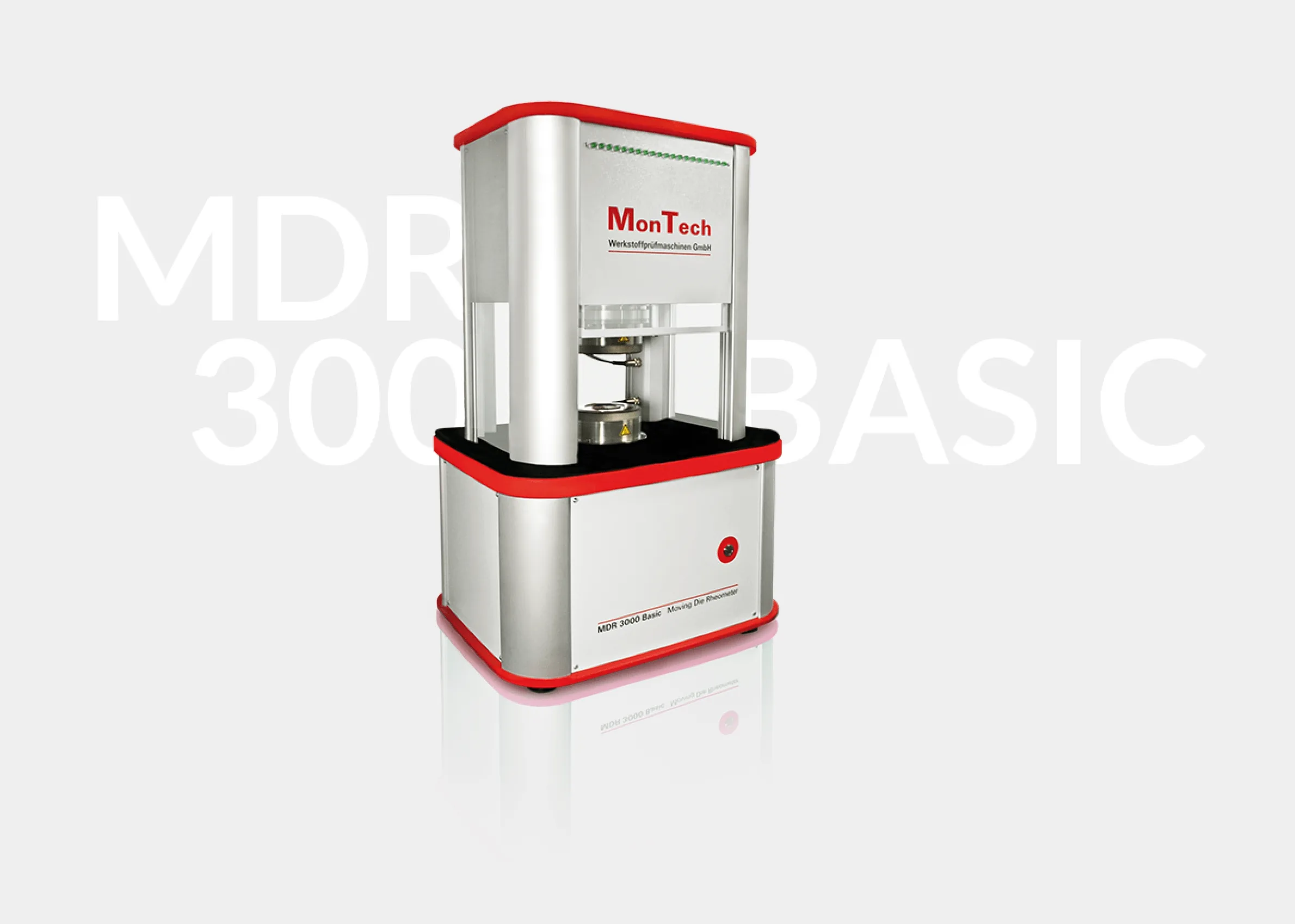

MDR 3000 Basic Moving Die Rheometer

รุ่นMDR 3000 Basic

MonTech · Moving Die Rheometer

Compact, entry model instrument for repetitive quality control testing as well as simple R&D applications.

ขอใบเสนอราคา

เอกสารดาวน์โหลด

ข้อมูลจำเพาะ

International standards	ISO 6502, ASTM D 5289, DIN 53529, ...

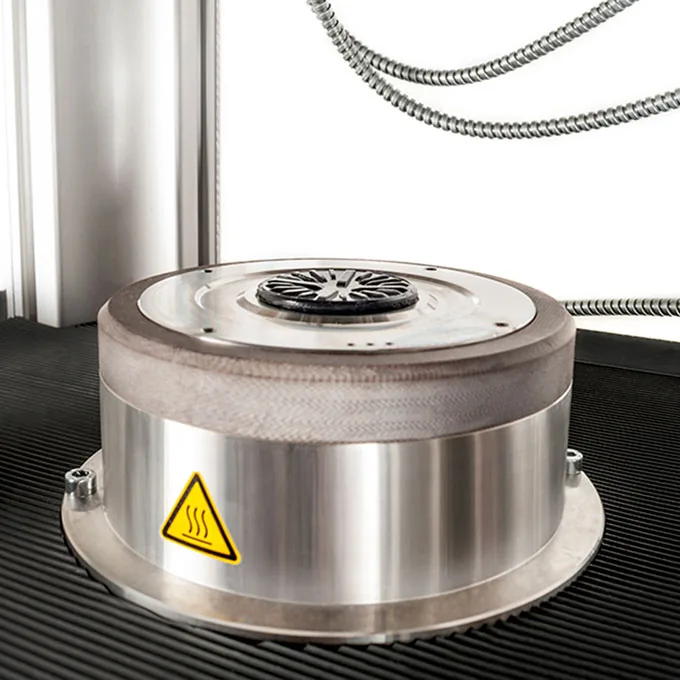

Die configuration	Biconical, closed System, sealed
Drive system	Mechanical, brushless DC eccentric drive
Oscillation frequency	1.667 Hz (100 cpm)
Oscillation strain	+/- 0.1°, 0.2°, 0.5° (Std), 1°, 3°, 7.17°, Mechanically adjustable (equals +/- 1.4%, 2.8%, 7% (Std), 14%, 42%, 100%)
Torque range	0.01 to 250 dNm
Measured Data	Torque (dNm, lbf.in, kgf.cm), Temperature (°C, °F), Pressure (bar, kg per cm²), Time (min - min / min - sec / sec), Shear rate (1/s, rad/s), Cure rate (1/min, 1/sec)
Calculated Data	S΄, S˝, S * , tan δ, phase angle, cure rate, ...
Die gap	0.45 mm nominal
Sample volume	approx. 4.5 cm³
Machine frame	Rugged 4 column frame with 4 stable posts - Large post distance for easiest access to test dies for loading, cleaning and maintenance - Pre-tensioned tiebars for highest rigidity avoiding any frame deformation under load - Integral crosshead with guiding on all 4 posts for precision parallel closing of test dies - Intelligent die alignment by special coupling of main cylinder to moving crosshead ensuring perfect and uniform pressurized sealing of test dies - Symmetrical alignment due to auto-alignment feature, mechanical and thermal symmetrical frame compensating for non-compliance ensuring highest test result precision
Closing system	Pneumatic with soft-close to prevent tearing of test film
Temperature control system	Ambient to 232 °C, precision +/- 0.03 °C, Max. heating rate: 85°C/min digital, microprocessor PID controlled,

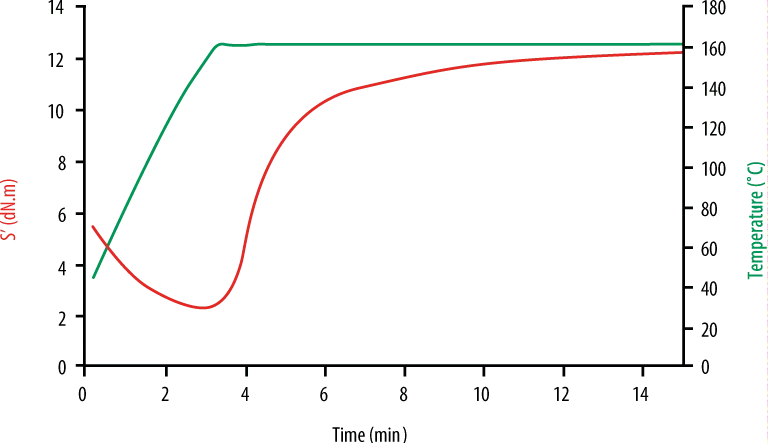

Temperature check system	Recordings of the temperature gradient on the screen, microprocessor monitored
Data Interface	Ethernet (10/100 MBit), USB (int.), CF card (int.), RS232 (opt.)

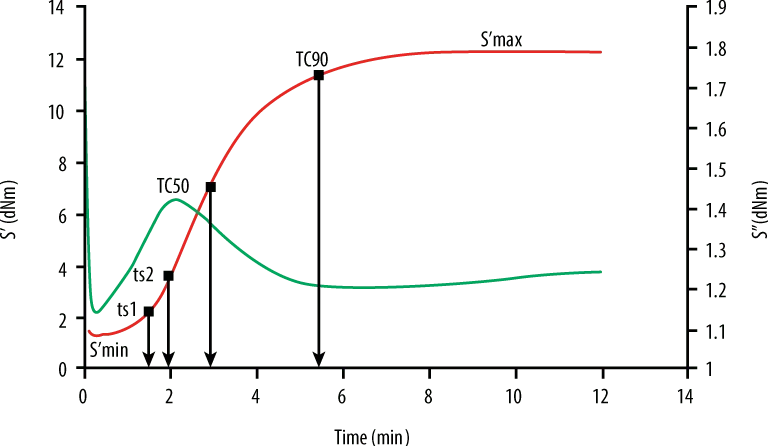

Data points	Over 3500 data points available for each test Including: S‘ Min, S‘ Max, TS 1, TS 2, TC 10, TC 30, TC 50, TC 90
Pneumatics	min. 4.5 Bar / 60 psi
Electrical	100-120 V, 8 Amps or 200-240 V, 5 Amps, 47-63 Hz, Single phase

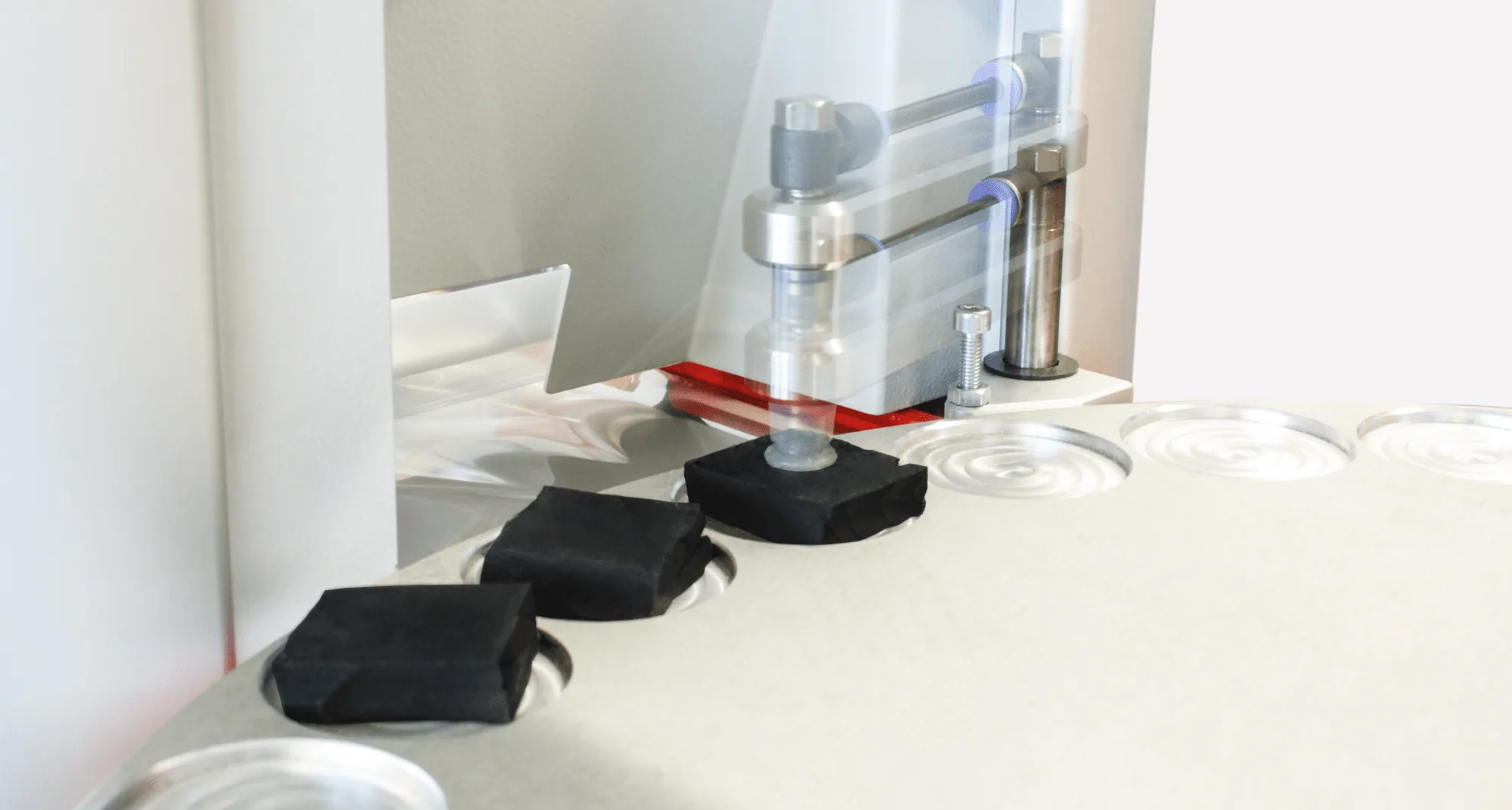

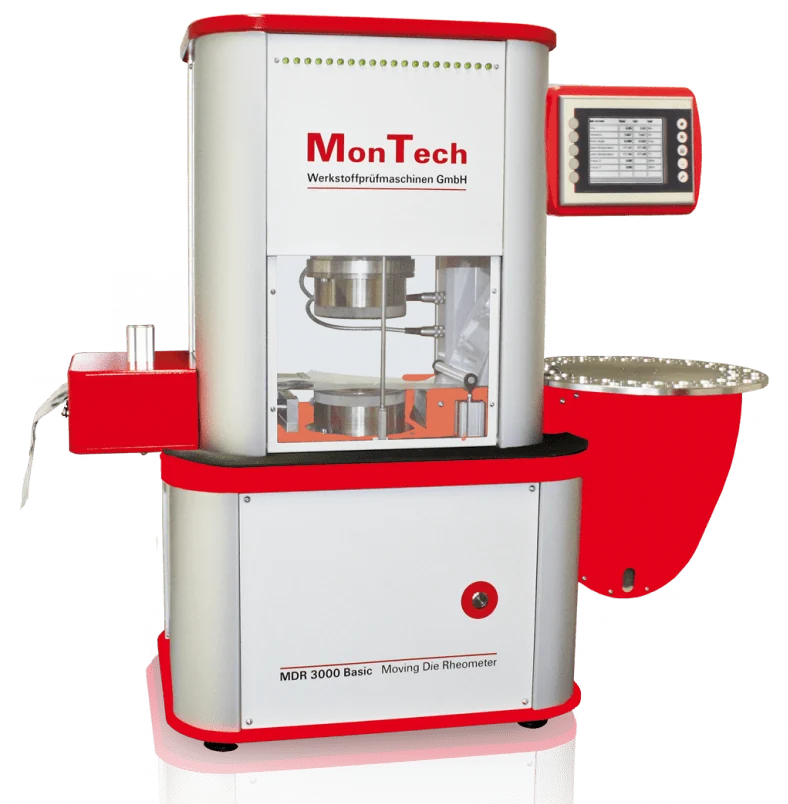

Instrument options	- Instrument control panel with 5" touchscreen display and printer - Selectable oscillation frequency 1,67 / 0,83 Hz (100 / 50 cpm) - Adapted transducers for high or low-viscosity torque range - Normal force / Pressure measurement - Single channel forced air cooling system - Extended thermal range to +300°C - Autoloader 5 or 10 sample linear - Autoloader with 24 or 48 sample tray - R-VS 3000 constant volume sample cutter - Label Printer - Signal tower - Dustproof version / Safety package
Temperature range	Ambient to 232 °C

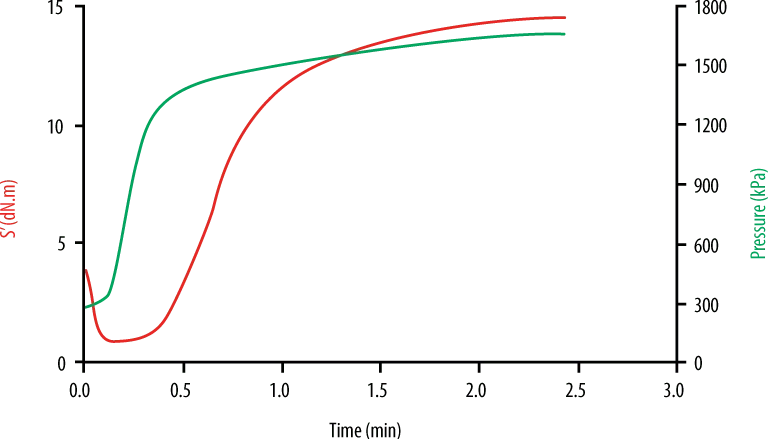

Normal force / Pressure (opt.)	0 to 10.000 kPa (1.450 lbin), Auto tare

ตารางเปรียบเทียบรุ่น

MonTech Moving Die Rheometers and Rubber Process Analyzers - range comparison (pp. 20-21; MDR 3000 Basic / MDR 3000 = static testing, MDR 3000 Professional / D-MDR 3000 / D-RPA 3000 = static and dynamic testing)

	MDR 3000 Basic	MDR 3000	MDR 3000 Professional	D-MDR 3000	D-RPA 3000
Instrument description	Compact, entry model instrument for repetitive quality control testing as well as simple R&D applications	High-end instrument for QC and static R&D testing for a broad range of materials (from LSR, all kinds of elastomers to composite materials)	Entry model instrument in the Rubber Process Analyzer (RPA) technology. The MDR 3000 Prof. can be operated either in static testing mode (MDR) or also in dynamic testing mode (RPA).	Top model for advanced dynamic testing of all kinds of rubber, rubber-like, curing or crosslinking materials. This includes TPE, TPV, LSR, Composite materials, Polyolefins, ...	High-end instrument for demanding static and dynamic testing in QC and R&D with a huge set of customizing options. This enables testing capabilities that have not been possible to measure in a Rheometer before, such as die gap regulation, High-speed data acquisition, FT-Rheology, low-temperature cooling, …
International standards	ISO 6502, ASTM D 5289, DIN 53529	ISO 6502, ASTM D 5289, DIN 53529	ISO 13145, ISO 6502, ASTM D 5289, ASTM D 6204, ASTM D 6601, ASTM D 6048, ASTM D 7050, ASTM D 7605, ASTM D 8059, DIN 53529	ISO 13145, ISO 6502, ASTM D 5289, ASTM D 6204, ASTM D 6601, ASTM D 6048, ASTM D 7050, ASTM D 7605, ASTM D 8059, DIN 53529	ISO 13145, ISO 6502, ASTM D 5289, ASTM D 6204, ASTM D 6601, ASTM D 6048, ASTM D 7050, ASTM D 7605, ASTM D 8059, DIN 53529
Die configuration	Biconical, closed die system, sealed	Biconical, closed die system, sealed	Biconical, closed die system, sealed	Biconical, closed die system, sealed	Biconical, closed die system, sealed
Drive system	Mechanical, brushless DC eccentric drive	Direct, wearless servo drive system	Direct, wearless servo drive system with ceramic bearings	Direct, wearless servo drive system with ceramic bearings	Advanced wearless servo drive system with ceramic bearings
Oscillation frequency	1.667 Hz	1.667 Hz	0.001 Hz to 33 Hz (0.001 Hz to 50 Hz optional)	0.001 Hz to 100 Hz	0.001 Hz to 100 Hz
Oscillation strain	+/- 0.1°, 0.2°, 0.5°, 1°, 3° or 7.17° Mechanically adjustable	+/- 0.01° to 5° Programmable via Software	+/- 0.01° to 20° (+/- 0.01° to 90° optional)	+/- 0.001° to 180°	+/- 0.0001° to 360°
Temperature range	Ambient to 232 °C	Ambient to 232 °C	Ambient to 232 °C	Ambient to 232 °C	Ambient to 232 °C
Measured Data	Torque, temperature, frequency / Optional: Normal force	Torque, temperature, frequency, strain / Optional: Normal force	Torque, temperature, frequency, strain / Optional: Normal force	Torque, temperature, frequency, strain / Optional: Normal force	Torque, temperature, frequency, strain / Optional: Normal force, die gap, die pressure
Calculated Data	S΄, S˝, S *, tan δ	S΄, S˝, S *, tan δ	S΄, S˝, S , G΄, G˝, G , tan δ, η΄, η˝ and η*	S΄, S˝, S , G΄, G˝, G , tan δ, η΄, η˝ and η*	S΄, S˝, S , G΄, G˝, G , tan δ, η΄, η˝ and η*
