- ISO 132
- ISO 6943
- ASTM D430
- ASTM D813
- ASTM D4482
- DIN 53
- DIN 53522

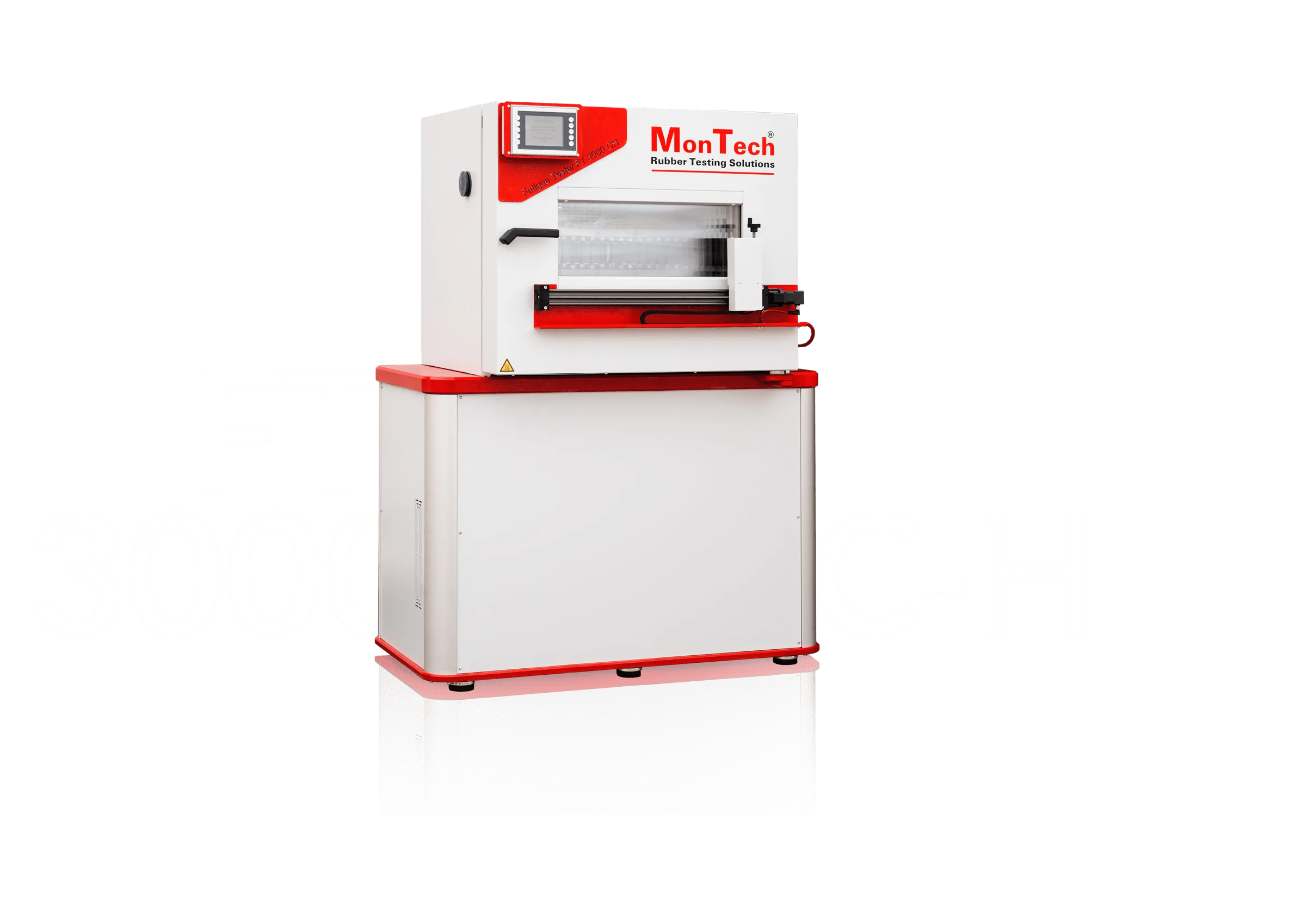

FT 3000 C-H Fatigue Tester
MonTech · Fatigue
The instrument is designed for continuous operation in applications such compound and material development as wellas in-process quality control in rubber plants and other areas requiring dynamic testing of rubber samples.
เอกสารดาวน์โหลด
- MonTech General Cataloguemontech-product-catalogue-2023.pdfดาวน์โหลด PDF
- MonTech Specimen and Die cuttingmontech-specimen-and-die-cutting-2021.pdfดาวน์โหลด PDF
- FT 3000 C-H datasheetfatigue-2021.pdfดาวน์โหลด PDF
ข้อมูลจำเพาะ
| International Standards | ISO 132, ISO 6943, ASTM D 430-B, D 813, D4482; DIN 53 522 -1/2/3 |
|---|---|
| Speed adjustment | DIRECT LINEAR DRIVE from 0,05 to 5 Hz (higher frequencies possible at reduced stroke) |
| Dynamic stroke | from 0 to 60 mm (up to 150mm with reduced frequency) |
| Static grip distance | 0 to 160 mm |
| Maximum force in traction | 600 N (at 1 Hz oscillation frequency) Heating |
| Sample holder | 16 samples can be tested at the same time. |
| Thermal chamber temperature | From –40°C to 180°C with +/-1°C accuracy |
| Instrument Dimensions (W x D x H) | 1880 x 1200 x 900 mm |
| Weight | approx. 870 kg net |
| Electrical Requirements | 400 V, 50Hz, 16 Amps, Triple phase (480V / 60Hz version available upon request) Cooling |
