- ISO 11345: 2006
- ASTM D7723
DisperCut 3000 Dispersion
MonTech · Dispersion

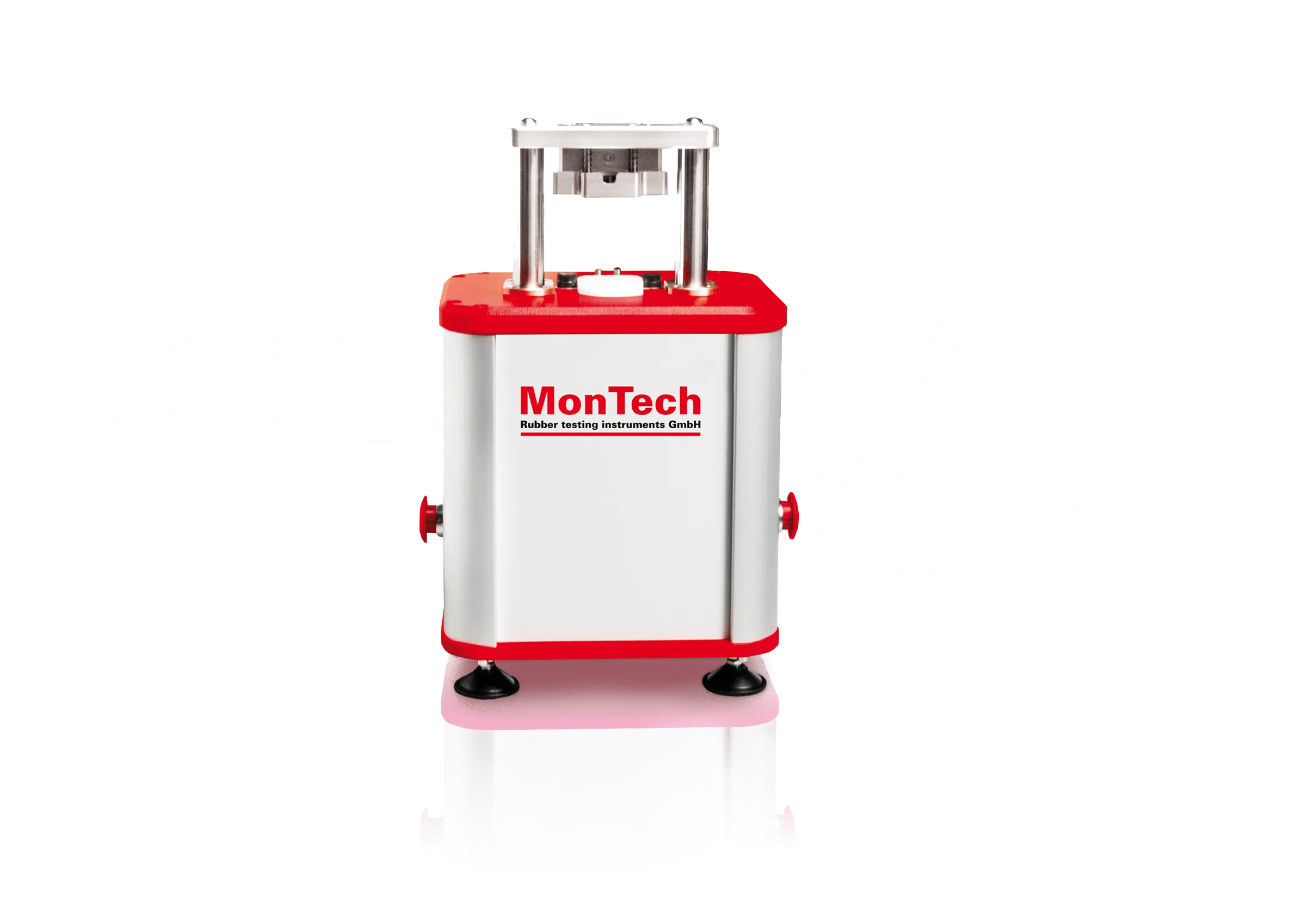

The DisperCut 3000 is the most accurate and effective way for preparing fine cut samples of cured and uncured rubber for dispersion testing applications. The sample is stretched while cutting to avoid any smearing or contamination of the cut surface. Precise sample cuts can be prepared in less then a second. For highest operator safety, the unit is fitted with two hand safety operation with anti-tiedown as well as automatic knife cover.
เอกสารดาวน์โหลด
- MonTech General Cataloguemontech-product-catalogue-2023.pdfดาวน์โหลด PDF
- MonTech Specimen and Die cuttingmontech-specimen-and-die-cutting-2021.pdfดาวน์โหลด PDF
- DisperCut 3000 datasheeten-dispersion-low.pdfดาวน์โหลด PDF
ข้อมูลจำเพาะ
| International standards | ISO 11345 : 2006, ASTM D 7723 |
|---|---|
| Cutting blades | Ultra-sharp heavy duty single edge blades, easily replaceable |
| Sample dimensions | Max. Ø 45 mm or 40 x 40 mm |
| Pre-stretching | adjustable by different cutting plates from 5 to 10% |
| Operation | 2-hand safety control with anti-tiedown |
| Cutting speed | Up to 20 cuts per minute |
| Dimensions (H x W x D) | 430 mm x 295 mm x 205 mm |
| Weight | approx. 12.0 kg net |
| Pneumatics | min. 5 Bar |
