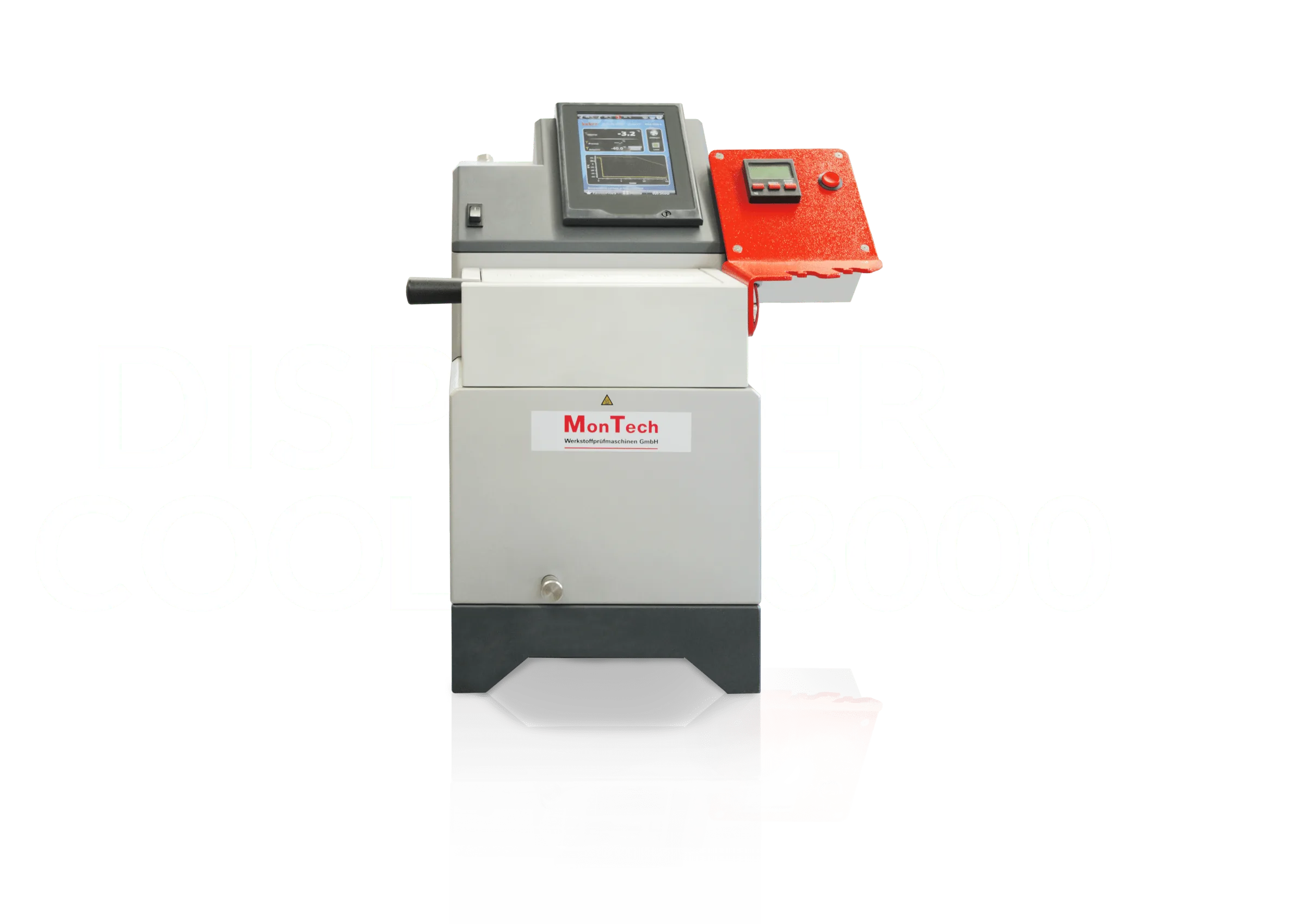

DisperCool 3000 Dispersion
MonTech · Dispersion
The DisperCool 3000 is used for deep-freezing test samples to about glass-transition temperature prior to sample cutting. This patented system is specifically designed for Dispersion Testing to ensure a perfect test sample preparation and highest quality of the samples surface area.
เอกสารดาวน์โหลด
- MonTech General Cataloguemontech-product-catalogue-2023.pdfดาวน์โหลด PDF
- MonTech Specimen and Die cuttingmontech-specimen-and-die-cutting-2021.pdfดาวน์โหลด PDF
- DisperCool 3000 datasheeten-dispersion-low.pdfดาวน์โหลด PDF
ข้อมูลจำเพาะ
| Temperature range | -40 to 200°C (depending on cooling / heating liquid) |
|---|---|
| Cooling liquid | Silicone oil, approximately 3 liters |
| Chamber size (HxWxD) | Approx. 170 mm x 90 mm x 170 mm |
| Sample capacity | Two independent sample holders |
| Sample size | Max. 25 x 20 x 20 mm |
| Display | 6-digit timer display with acoustic signal 3,5“ color-touch temperature display |
| Additional Inputs (optional) | PT 100 temperature port for immersion probes to measure temperature directly in the sample |
| Chiller capacity | Max. 420 Watts, air cooled |
| Electrical Requirements | 230 - 250 VAC, 50 – 60 Hz, 10 Amps |
| Output Interfaces | USB, RS232 |
| Protection levels | Configurable user input modes and levels Integrated temperature and level protection switches |
| Dimensions (H x W x D) | 500 mm x 425 mm x 450 mm |
| Weight | approx. 40.5 kg net |
| Chamber size | Approx. 170 mm x 90 mm x 170 mm (H x W x D) |
| Electrical | 230-250 V, 10 Amps, 47-63 Hz, Single phase |
