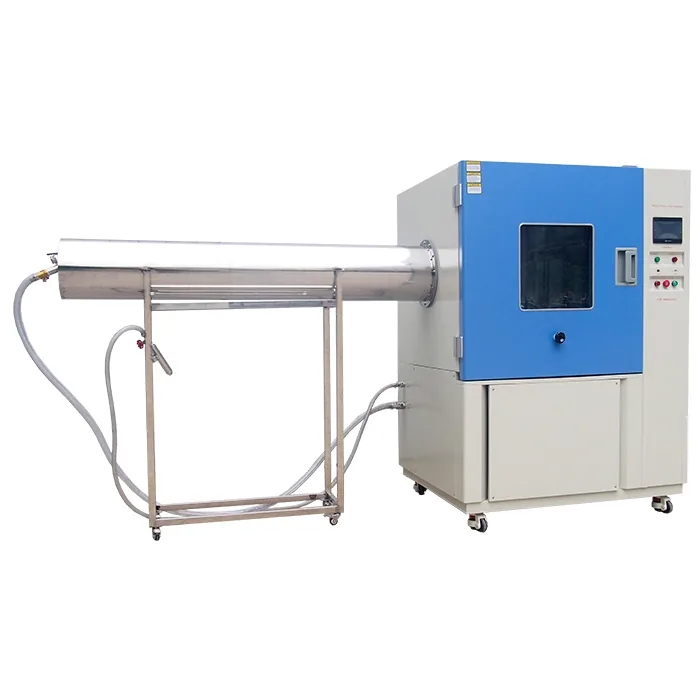

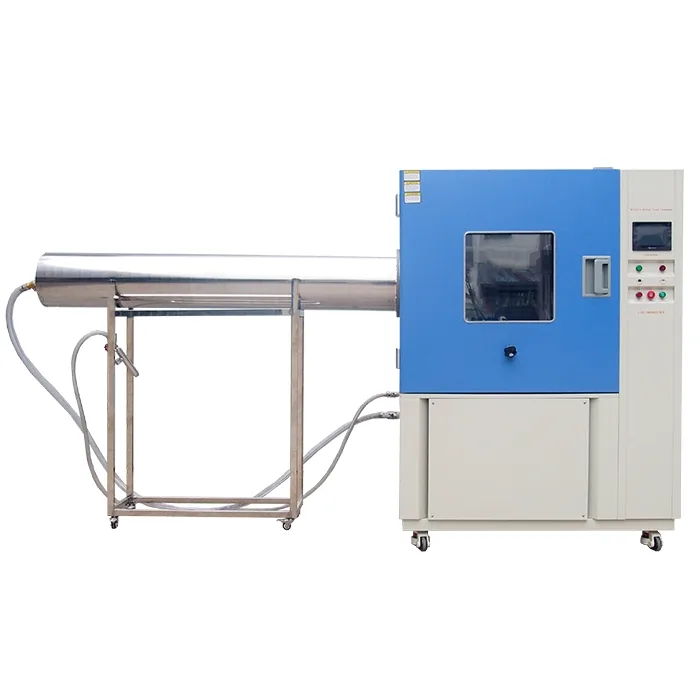

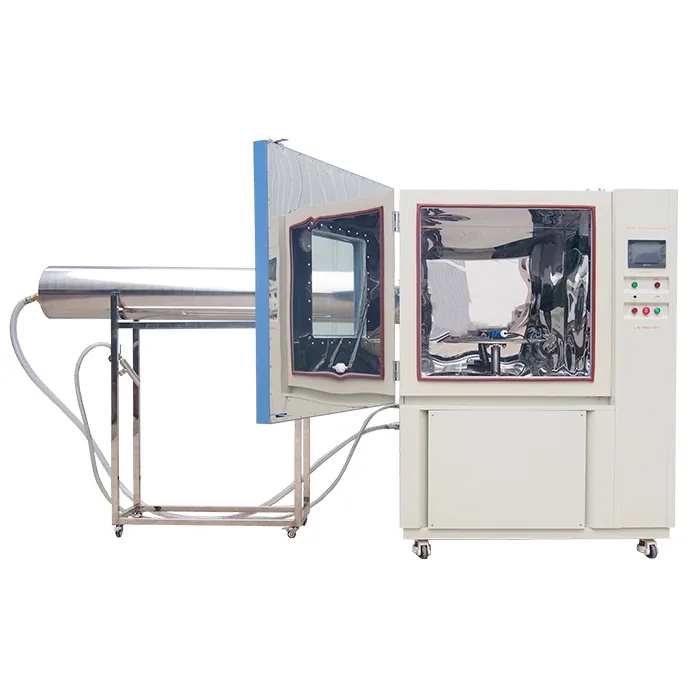

IPX5 IPX6 Water Test Chamber

LIB · Water Ingress & Rain Testing (IPX)

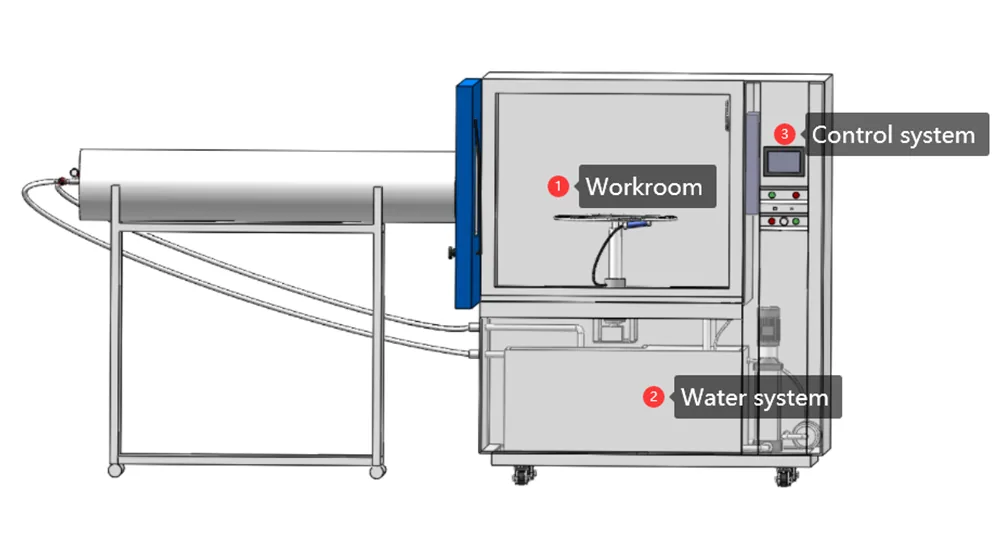

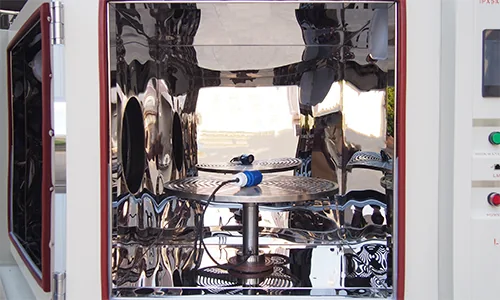

The LIB industry IPX5 IPX6 water test chamber is engineered to verify a product’s waterproof rating and resistance to powerful water jets under IEC 60529 . Using a controlled spray distance of 2.5 m to 3 m , the system reproduces realistic outdoor rain and jet-stream exposure conditions for accurate IPX5 and IPX6 performance evaluation. The entire interior—including the test workroom, water circuits, and nozzles—is constructed from SUS304 stainless steel , ensuring long-term durability, corrosion resistance, and clean water flow.

เอกสารดาวน์โหลด

• Lib Ip Test Equipmentlib-ip-test-equipment.pdfดาวน์โหลด PDF

คุณสมบัติ

• Accurate Parameter Control
• IPX5 waterproof spray aperture is 6.3mm, IPX6 waterproof test spray aperture is 12.5mm, IPX5 water flow is (12.5±0.625) L/min; The water flow rate for the IPX6 waterproof test is (100±5) L/min.
• Reinforced Structure for High-Pressure Water Impact
• Designed with a heavy-duty framework and SUS304 stainless steel, the IPX5 IPX6 water test chamber maintains stability and long service life even under continuous high-pressure jet impact,preventing deformation, leakage, and corrosion.

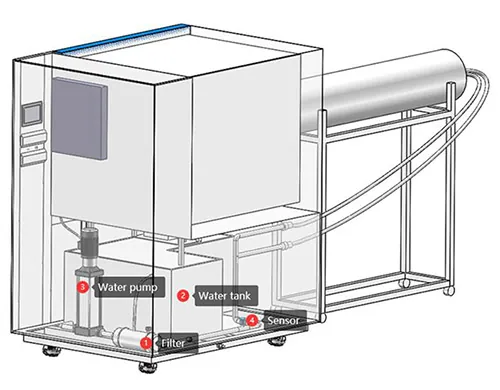

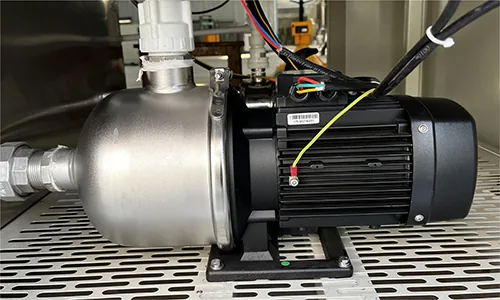

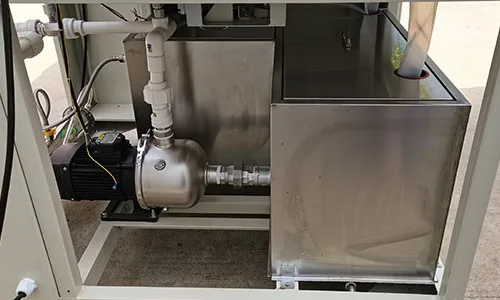

• Automatic Water Circulation and Multi-Stage Filtration

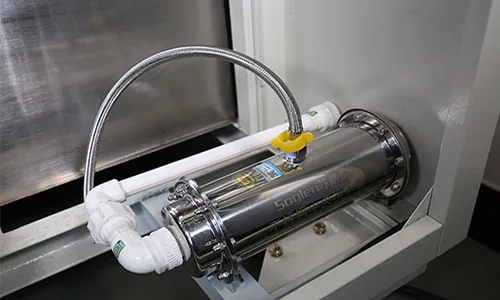

• The integrated circulating water system continuously recycles water to reduce consumption and eliminate manual refilling. A built-in filtration mechanism prevents clogging of nozzles and piping, ensuring smooth operation, clean water flow, and reduced maintenance time.
• Independent IPX5 and IPX6 Spraying Assemblies
• IPX5 and IPX6 spray components operate independently, allowing users to switch between test modes without component replacement or mechanical adjustment.
