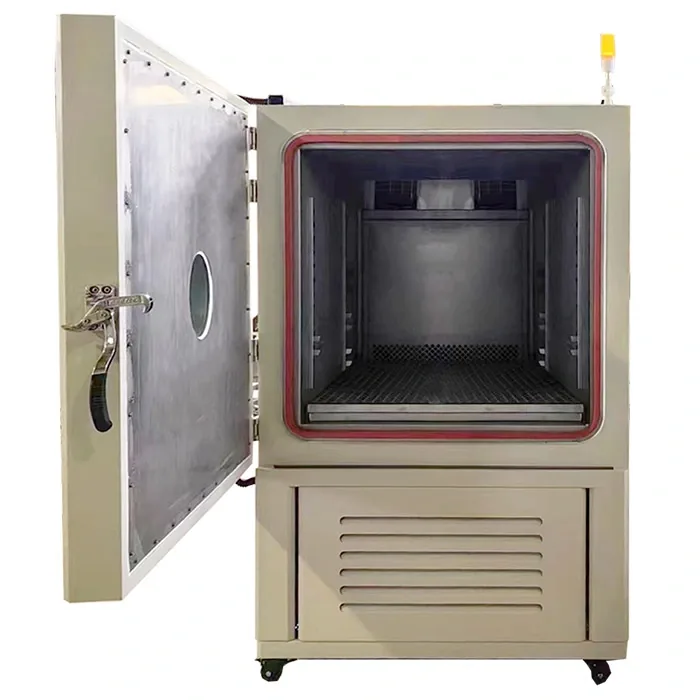

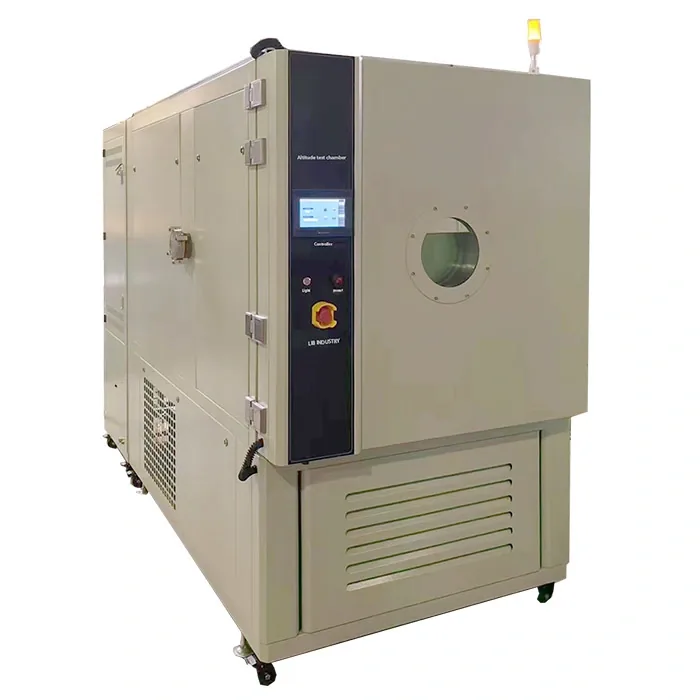

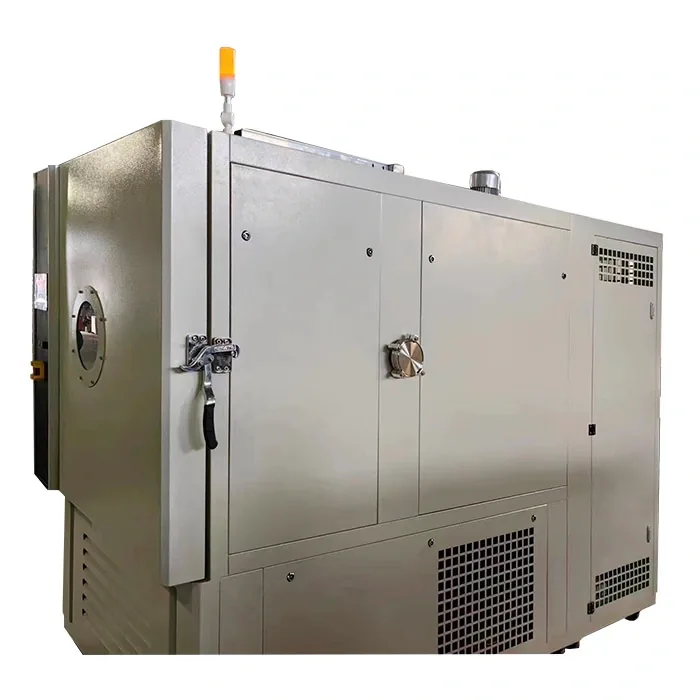

Altitude Chamber

LIB · Altitude, Vibration & Combined Simulation

LIB altitude chamber can simulate the air pressure at an altitude below 40,000 meters, and is used for combined temperature altitude humidity testing. The altitude test chamber can carry out low-pressure tests independently, and can also carry out comprehensive tests high temperature, low temperature and humidity. The high altitude test chamber is used to test the stability of the products when it is subjected to altitude, temperature, humidity, and comprehensive effects in the air or at high altitudes.

ขอใบเสนอราคา

เอกสารดาวน์โหลด

ข้อมูลจำเพาะ

Internal dimensionsD 1500 W 1000 H 970 mm
External dimensionsD 2050 W 1300 H 2200 mm
Temperature range—40℃ to +150℃
Humidity range20% ~ 95% (more than 50Kpa can be controlled)
Temperature fluctuation≤ ±0.5℃
Temperature deviation≤ ±2.0℃
Temperature uniformity≤ 2.0℃ (under normal pressure and no load)
Heating rate3℃/min
Cooling speed2℃/min
Pressure rangeAtmospheric pressure to 0.5kPa
Pressure deviation± 2Kpa
Depressurization timeAtmospheric pressure to 0.5k ≤30min
Pressure enclosureManganese steel, surface spray treatment
Other outer wall materialsDouble-sided galvanized steel plate, surface spray treatment

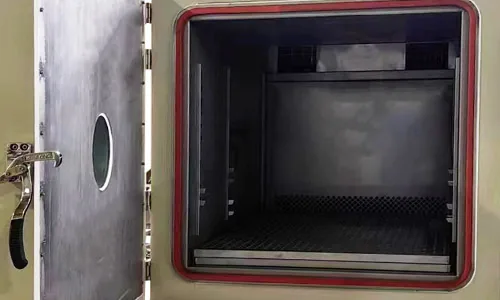

Inner wall materialSUS304 stainless steel plate

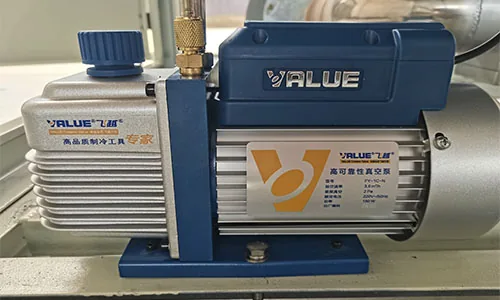

Vacuum systemVacuum pump, air pumping regulating valve, inflation regulating valve
