• ISO 20653
• IEC 60529
• UL 50E
• UL 1598
• UL 153
• UL 1573
• UL 60950
• GJB 150.8
• ISO 9001

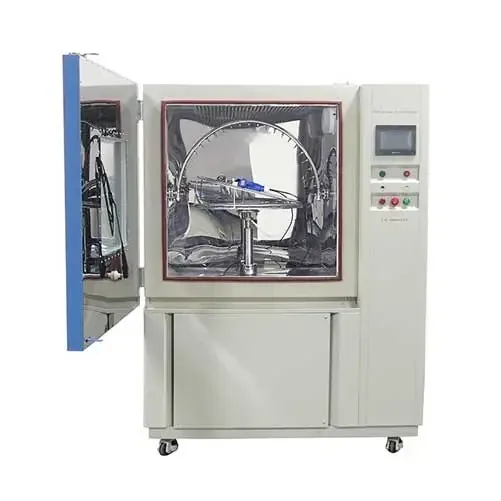

IPX3 X4 Test Chamber

รุ่นR-800C, R-1200C

LIB · Water Ingress & Rain Testing (IPX)

LIB IPX3 X4 Test Chamber can simulate environments of water and spray tests that electronic products and their components may be subjected to during transportation and use, so as to test the waterproof performance of the DUT. It is suitable for the protection test and detection of external lighting, signal devices and automobile lamp shells of scientific research units such as electronics, aerospace, and military industry. Model: R-800C, R-1200C Standard: ISO 20653, IEC 60529, UL 50E, UL 1598, UL 153, UL1573, UL 60950-1, IPX3, IPX4

เอกสารดาวน์โหลด

• Lib Industry Rain Test Chamberlib-industry-rain-test-chamber.pdfดาวน์โหลด PDF

คุณสมบัติ

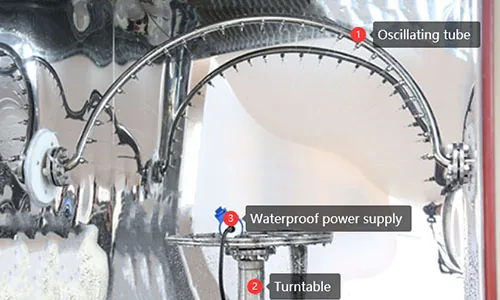

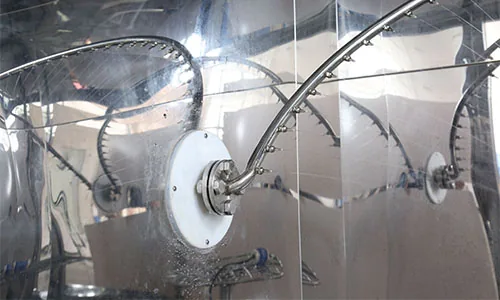

• Radius of oscillating tube: 400mm/600mm/800mm
• Water pipe diameter: 18mm Nozzle diameter: 0.4mm or 0.8mm Optional water spray pressure: 50～100kpa

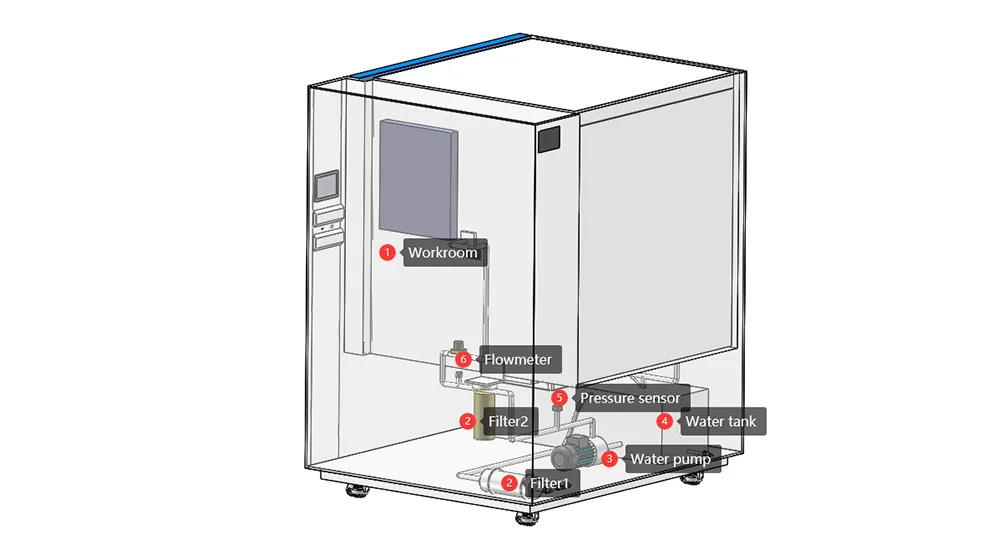

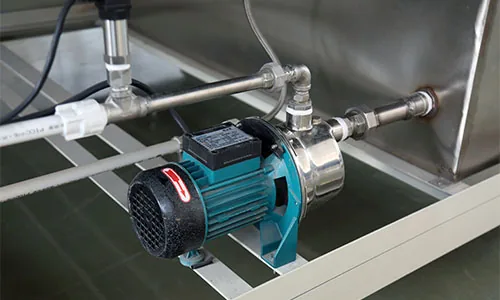

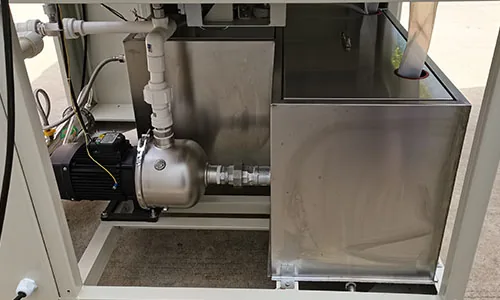

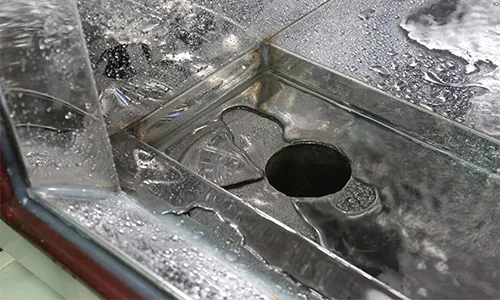

• There is a water tank at the bottom of the test chamber, a test water spray system, a worktable rotation system, and a swing tube swing drive device
• Sealing: Double-layer high-temperature resistant and high-tensile sealing strips are used between the door and the chamber to ensure the tightness of the test room.

ข้อมูลจำเพาะ
