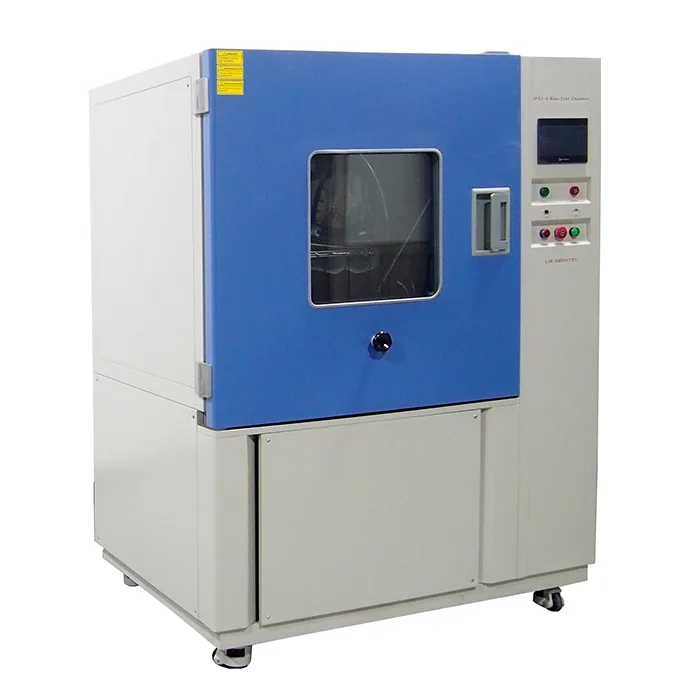

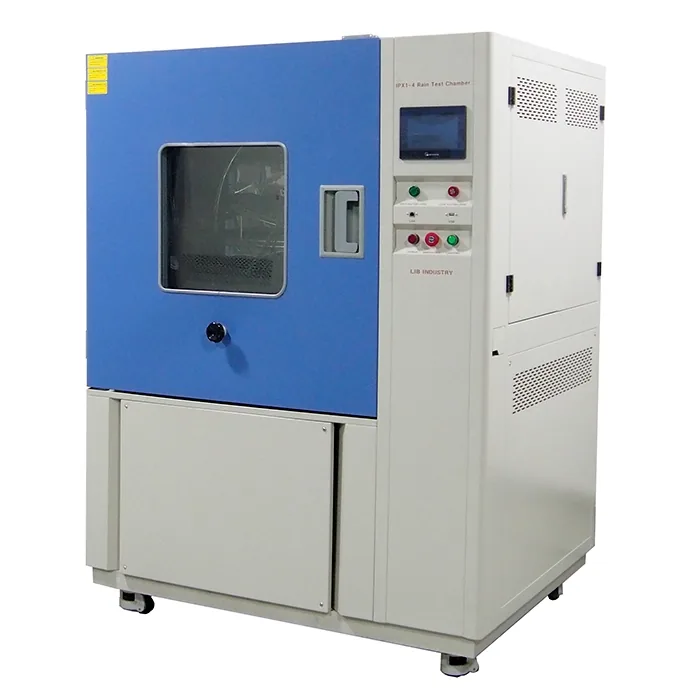

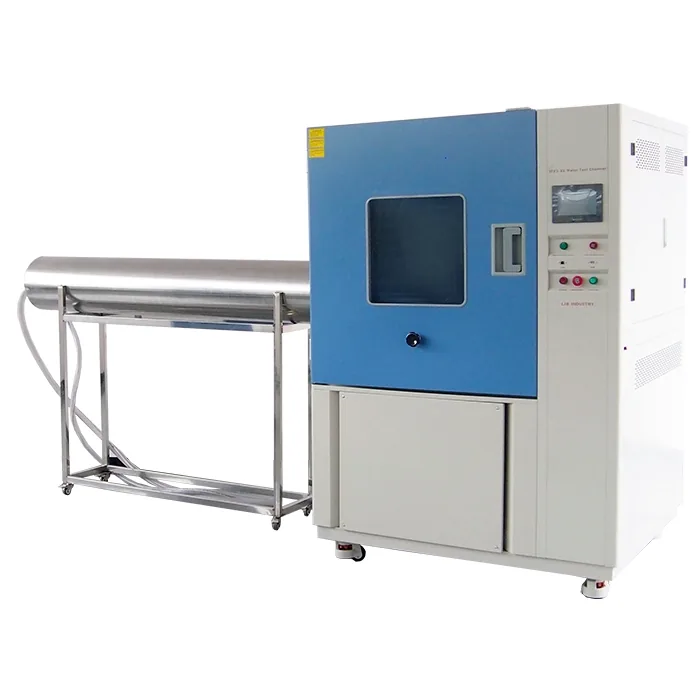

Waterproof Test Machine
LIB · Water Ingress & Rain Testing (IPX)
Integrated IPX1–IPX6 Waterproof Testing Solution LIB waterproof test machine integrates IPX1, IPX2, IPX3, and IPX4 waterproof grades into one workroom, with optional configurations for IPX5 and IPX6 . The system is designed in accordance with IEC 60529 and related international standards , and is widely used for waterproof performance testing of automotive lamps, wiper systems, sealing strips, locomotive instruments, low-voltage electrical enclosures, and other electronic and electrical products. By accurately simulating dripping, spraying, and splashing conditions, the LIB waterproof test mac
เอกสารดาวน์โหลด
ข้อมูลจำเพาะ
| How the Waterproof Test Machine Works | Standardized waterproof testing based on IEC 60529 |
|---|---|

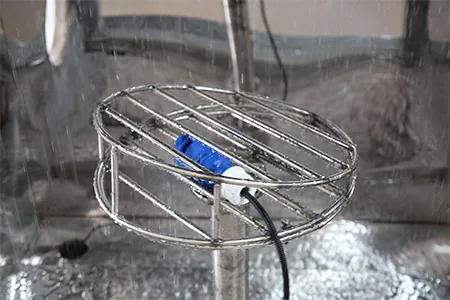

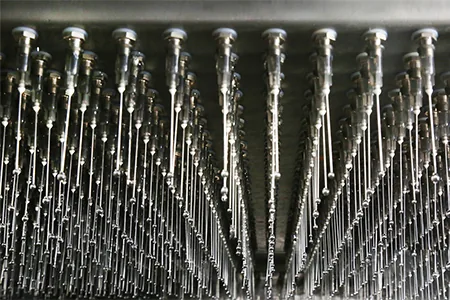

| The waterproof test machine performs standardized water exposure tests by precisely controlling water flow, spray angle, and test duration. | IPX1 Test: Vertical dripping onto a rotating sample at a controlled flow rate |

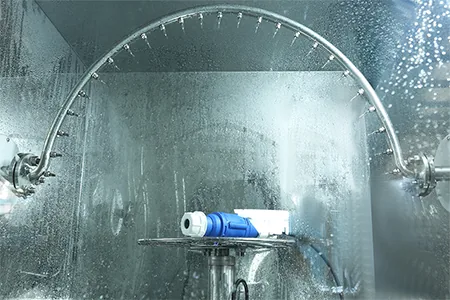

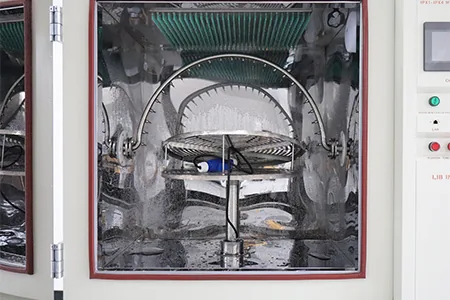

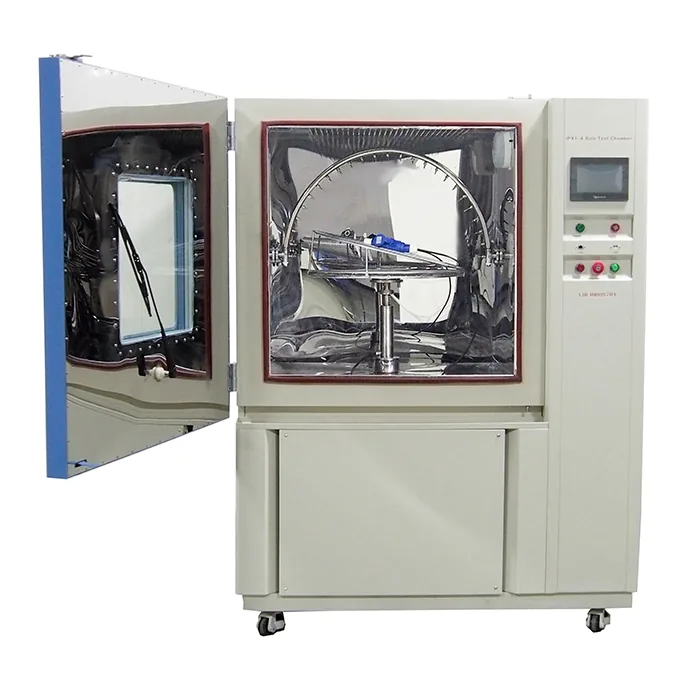

| IPX2 Test: Vertical dripping with the sample tilted at 15° | IPX3 Test: Oscillating tube sprays water from multiple angles to simulate rainfall |
| IPX4 Test: Increased spray intensity and coverage for more severe splash conditions | During testing, water is continuously filtered and recycled to maintain stable test conditions. After completion, samples are evaluated for water ingress, leakage, or functional failure to determine compliance with the specified IP rating. |
| CTA-Engineered for Compliance.Supported for Life. | With LIB industry, your waterproof test machine is backed by a 3-year warranty and lifelong technical guidance . |
| From IPX test setup to daily operation and maintenance, our engineers provide professional, standard-oriented support . | In the event of an unresolved fault, a replacement unit is supplied without additional cost , minimizing downtime and certification risk. |
| Spare parts are readily available from global warehouses, with delivery in 7–15 days . | Talk to LIB industry [email protected] about your IPX waterproof testing requirements |
| Send Inquiry | LIB Team will send you specs and quote today. |
| SUBMIT | Key features |
| • IPX1 Test: Vertical dripping onto a rotating sample at a controlled flow rate | • IPX2 Test: Vertical dripping with the sample tilted at 15° |
| • IPX3 Test: Oscillating tube sprays water from multiple angles to simulate rainfall | • IPX4 Test: Increased spray intensity and coverage for more severe splash conditions |
ตารางเปรียบเทียบรุ่น
| Model | RD-800C | RD-1200C |
|---|---|---|
| Internal Dimensions (mm) | 900*950*950 | 1300*1350*1370 |
| Overall Dimensions (mm) | 1180*1420*1920 (excluding stainless steel tube) | 1540*1820*2200 (excluding stainless steel tube) |
| Useful Volume (L) | 810 | 2400 |
| Drip Tray Size | 600*600 | 1000*1000 |
| Oscillating Tube Radius | 400mm | 600mm |
| Water Jetting Tube | / | / |
| Spraying Hole Diameter | φ0.4mm | |
| Hole Spacing | 50 mm | |
| Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable） | |

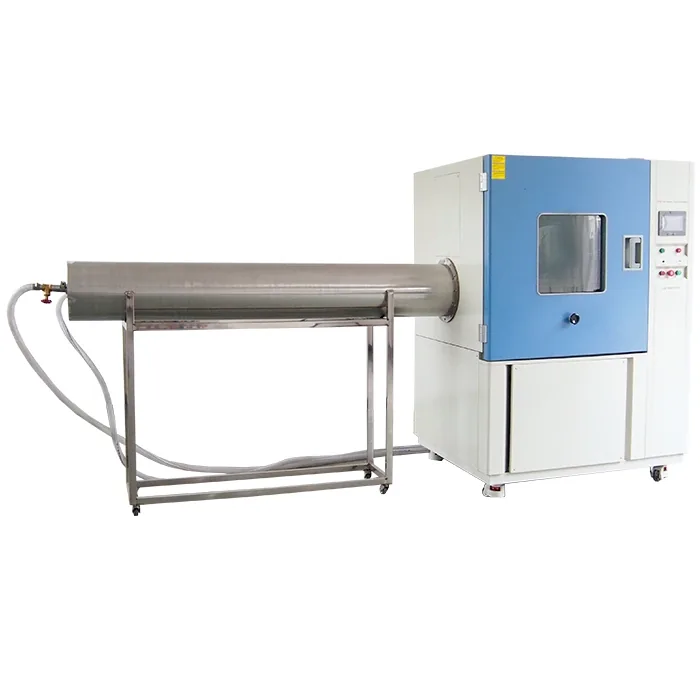

| Jet nozzles | IPX5: Dia6.3mm, IPX6: Dia12.5mm | |
| Jet distance | 2.5~3meter | |
| Turntable Rotation Speed | 1r/min (Adjustable speed) | |

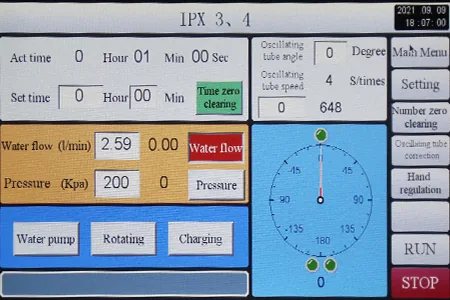

| Controller | Programmable color LCD touch screen controller, Ethernet connection, USB port | |
| Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
| Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | |
| Exterior Material | Steel Plate with protective coating | |
| Interior Material | SUS304 stainless steel | |
| Observation Window | Double layer insulating glass with wiper |
