- ASTM B117
- ISO 9227
- ASTM G85
- SAE J2334
- ISO 4611
- ISO 7253
- IEC 60068-2-11
- DIN 50021
- ASTM B368
- IEC 61701
- UL 1703
- IEC 61215

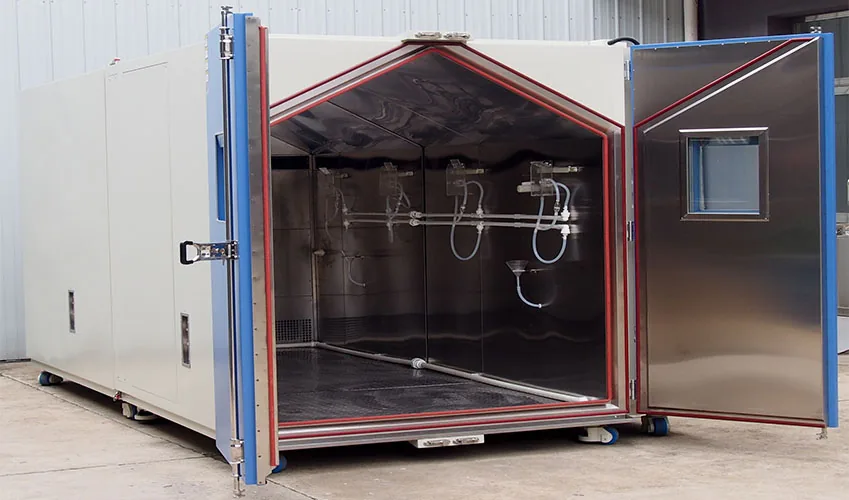

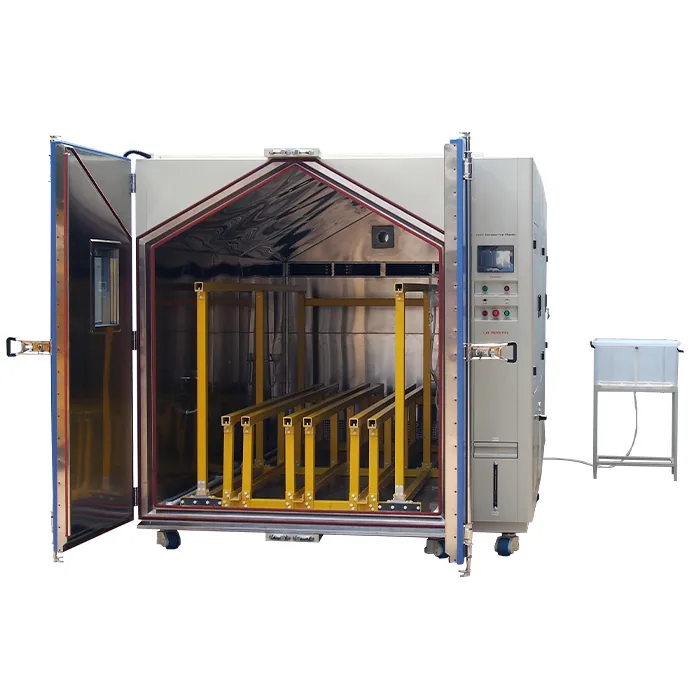

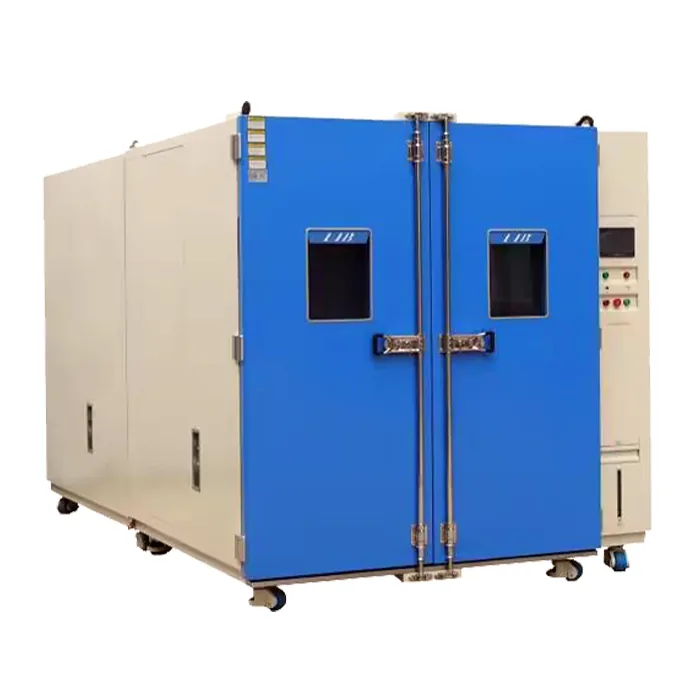

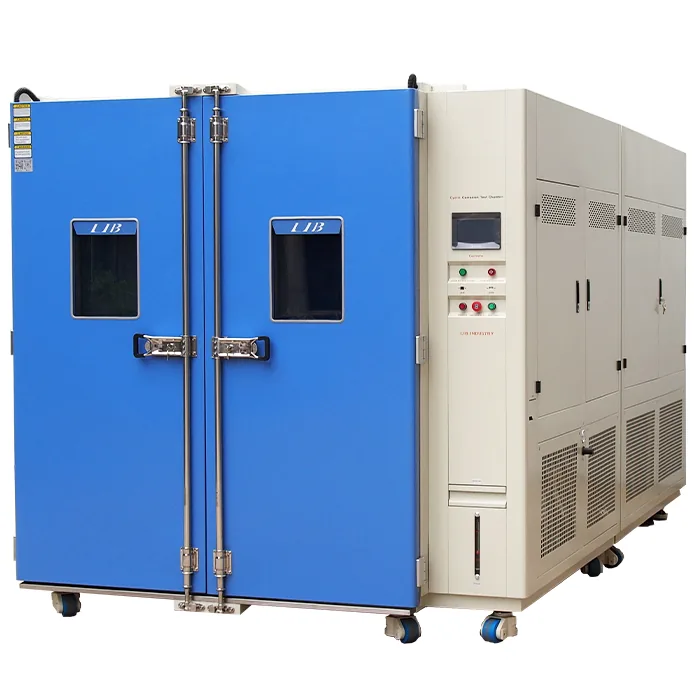

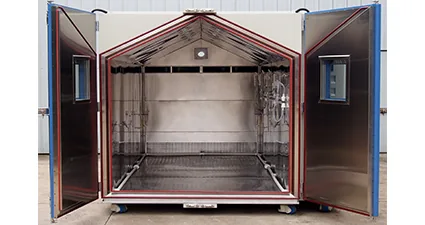

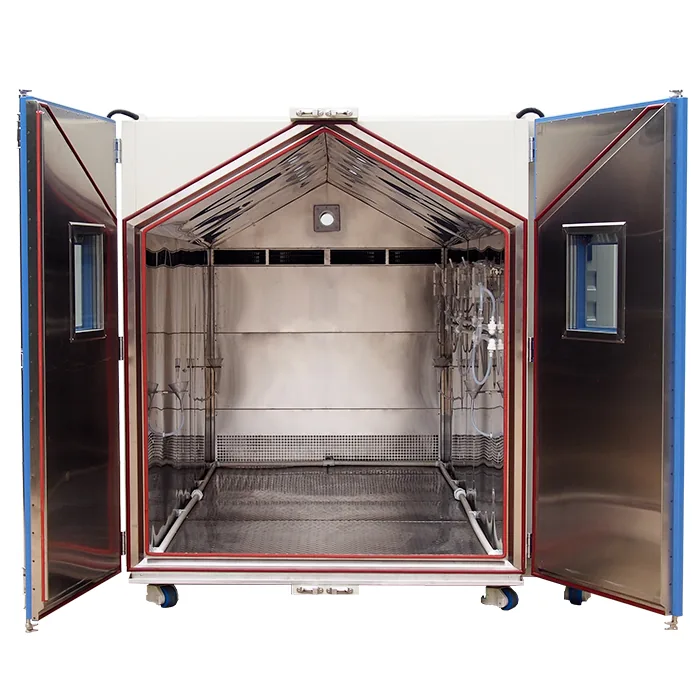

Walk-in Salt Spray Chamber
LIB · Walk-in & Drive-in Chambers
The walk-in salt spray chamber is a large-scale corrosion resistance testing equipment, specially designed for large-volume products or multiple samples to conduct salt spray corrosion tests simultaneously, allowing technicians to directly enter the test area for operation or observation. It simulates the Marine climate environment or coastal climate by atomizing a 5% NaCl solution (support AASS, CASS, etc.) and diffusing it in the test space, it simulates the Marine. The T&H are controllable,assessing the durability of materials, coatings, electronic components and etc.
เอกสารดาวน์โหลด
ข้อมูลจำเพาะ
| Temperature Range | +10 ℃ ～ +90 ℃ |
|---|---|
| Temperature Fluctuation | ± 0.5 ℃ |
| Temperature Deviation | ± 2.0 ℃ |
| Humidity Range | 30% ~ 98% RH |
| Humidity Deviation | + 2%, - 3% |
| Salt Fog Deposition | 1～2ml / 80cm2 · h |
| Cooling system | Mechanical compression refrigeration system |
| Water supply system | Water purification system |
| Air Preheating | Saturated air barrel |

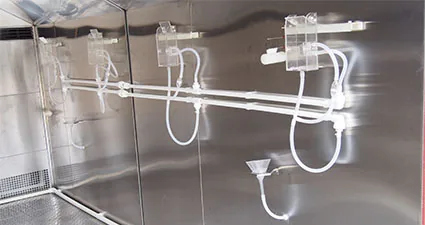

| Spraying System | Atomizer tower and Spray nozzles |
| Salt Fog Collected | Fog collector and fog measure cylinder |

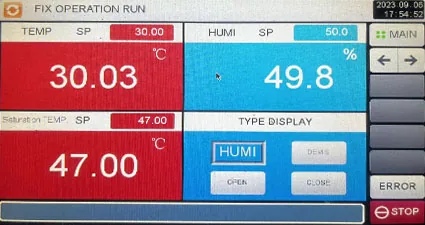

| Controller | Programmable color LCD touch screen controller, Ethernet connection |
| Air Circulation | Centrifugal wind fan |
| Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection |
| Material | SUS 304 stainless steel |
