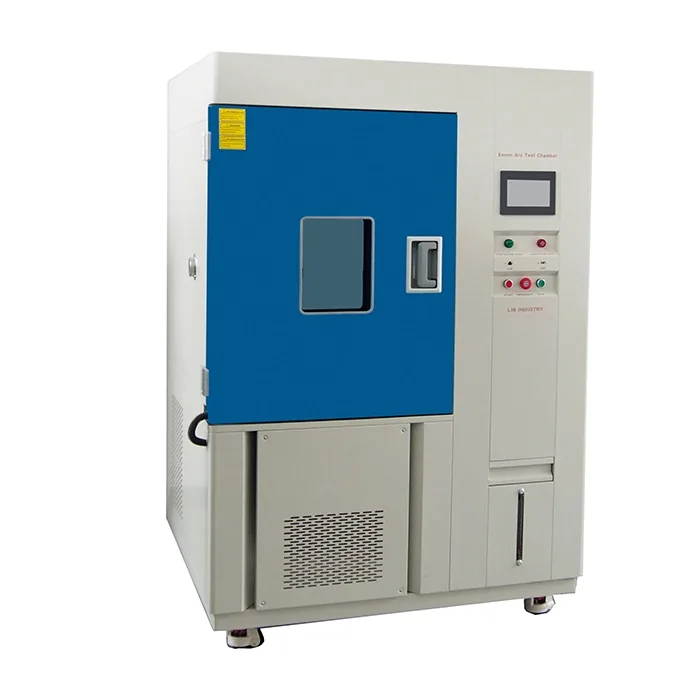

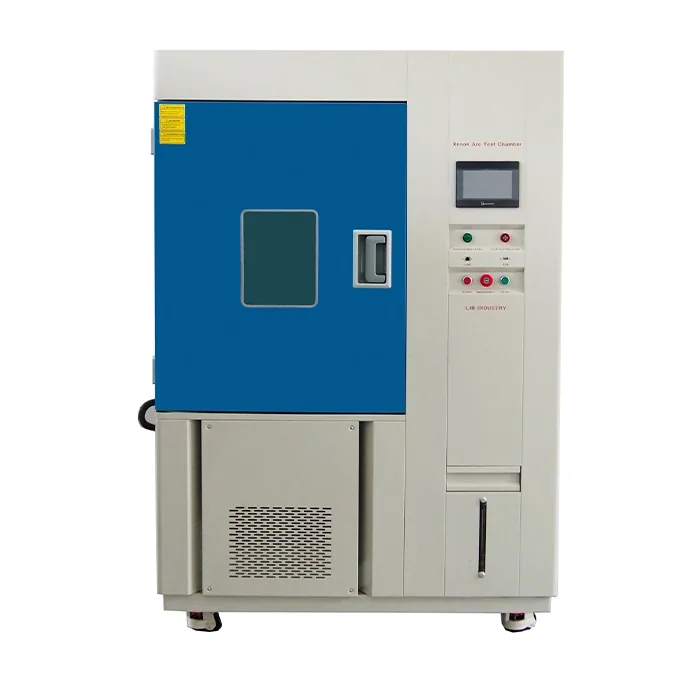

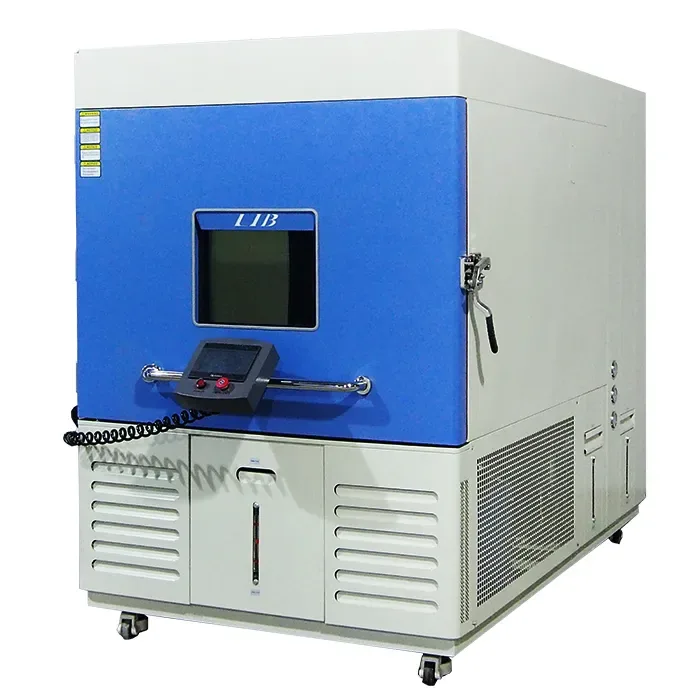

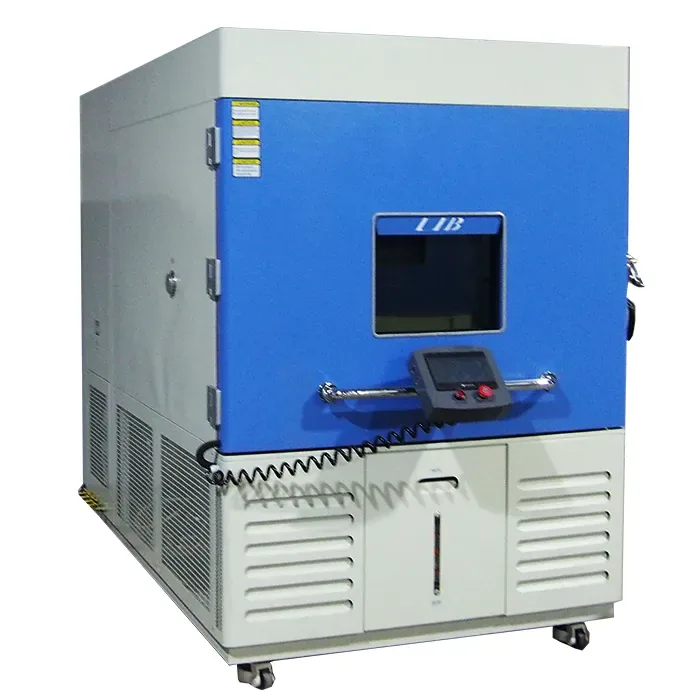

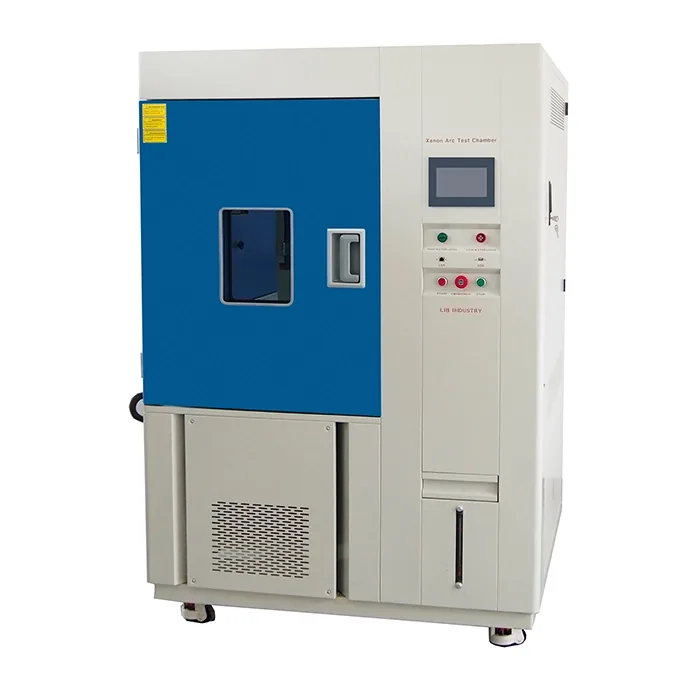

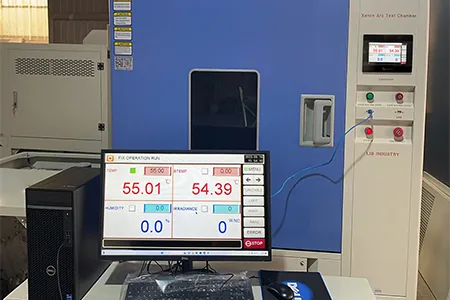

ASTM G151 G155 Xenon Light Radiation Exposure Test Machine
LIB · Weathering, UV & Ozone
The ASTM G151 G155 Xenon Light Radiation Exposure Test Machine is a full-spectrum solar aging simulator engineered to reproduce long-term outdoor environmental stress within a controlled laboratory cycle. Using a 4500W water-cooled xenon arc lamp, programmable irradiance from 35–150 W/m² , black panel temperature 35–85℃ , and moisture control from 50%–98% RH , it replicates the combined impacts of UV photolysis, infrared thermal expansion, condensation, hydrolysis, and temperature fatigue. Unlike color-focused fading chambers, this machine emphasizes material stability, structural displacement
เอกสารดาวน์โหลด
ข้อมูลจำเพาะ
| Internal Dimension (mm) | 950*950*850 mm |
|---|---|
| Overall Dimension (mm) | 1400*1400*1950 mm |

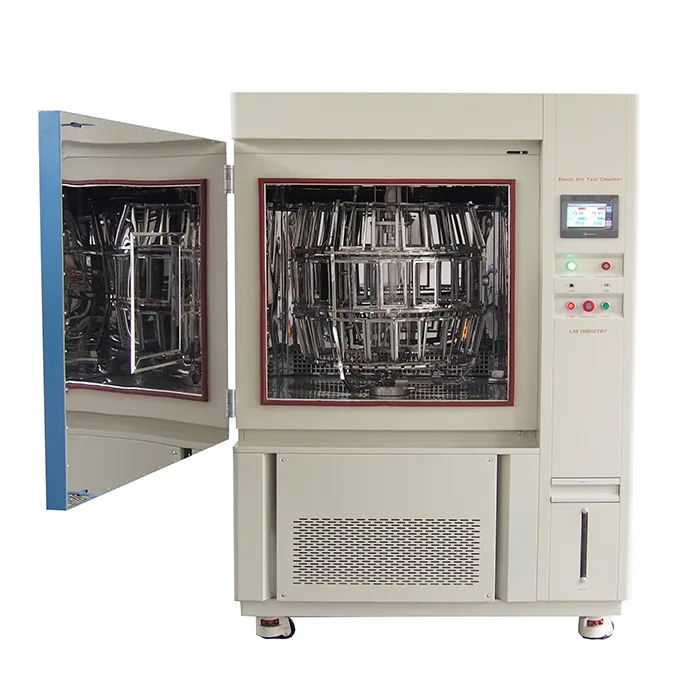

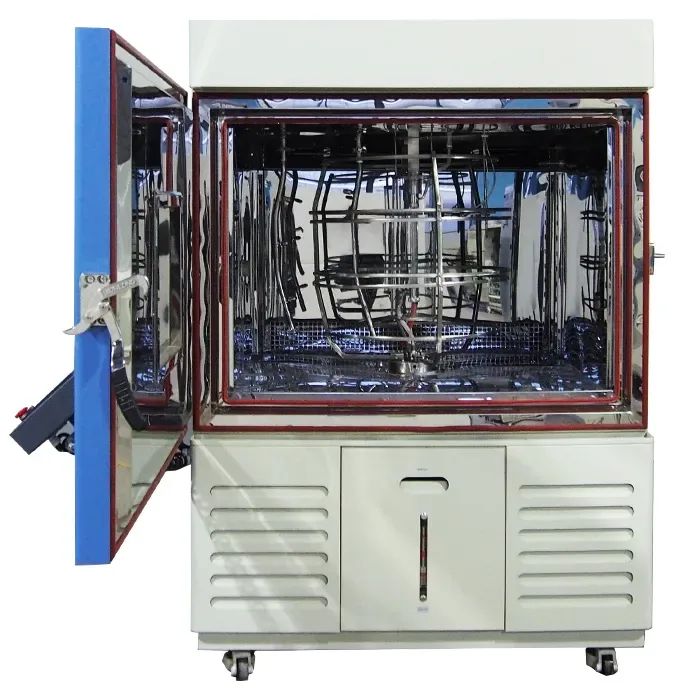

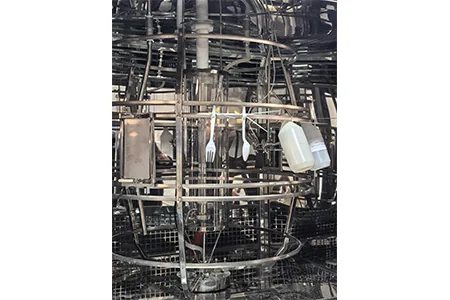

| Chamber Type | Rotating Holder Holds 42 Samples with a Size of 95mm*200mm |

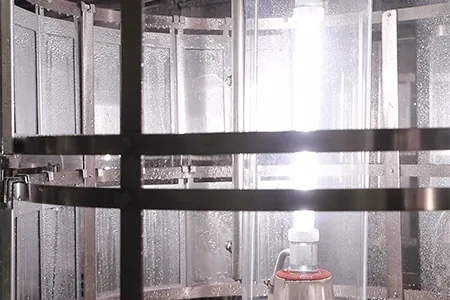

| Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp |
| Irradiance Range | 35~150 W/㎡ |
| Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
| Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
| Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
| Humidity Range | 50% ~ 98% RH |
| Humidity Deviation | ± 5% RH |
| Water Spray Cycle | 1~9999H59M (Adjustable) |
| Controller | Programmable color LCD touch screen controller |
| Radiometer | UV Radiometer, Tolerance: ±5% |
| Cooling System | Mechanical compression refrigeration system |
