- ASTM B117
- IEC 60068-2-11
- IEC 60068-2-52
- ISO 9227
- JIS Z2371
- SAE J2334
Combined Salt Spray and Climate Test Chamber
LIB · Salt Spray & Corrosion Chambers

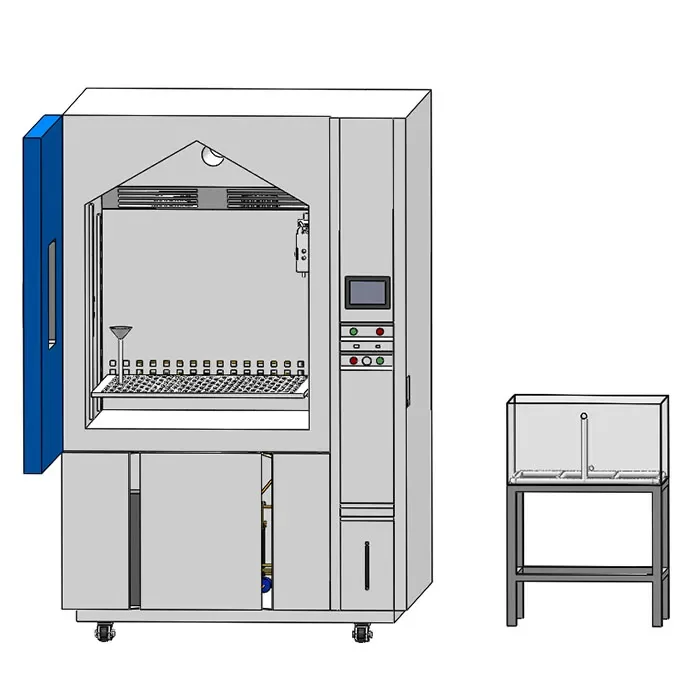

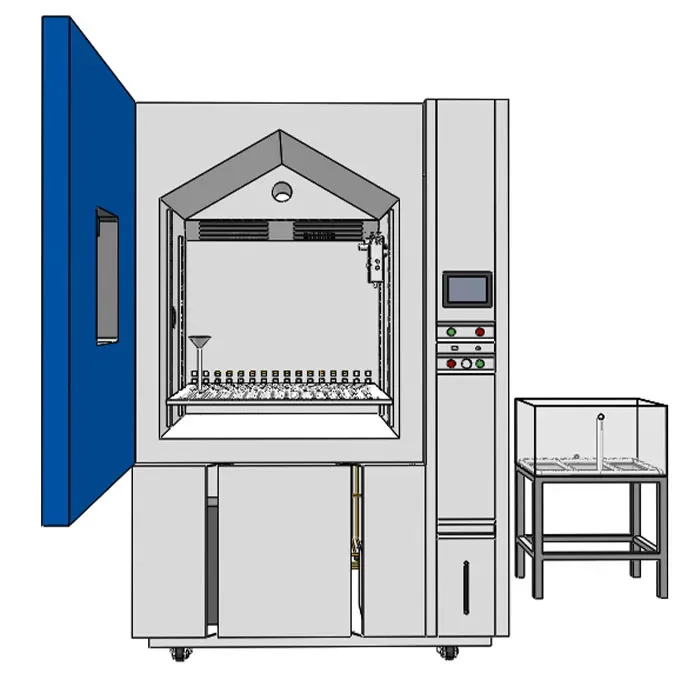

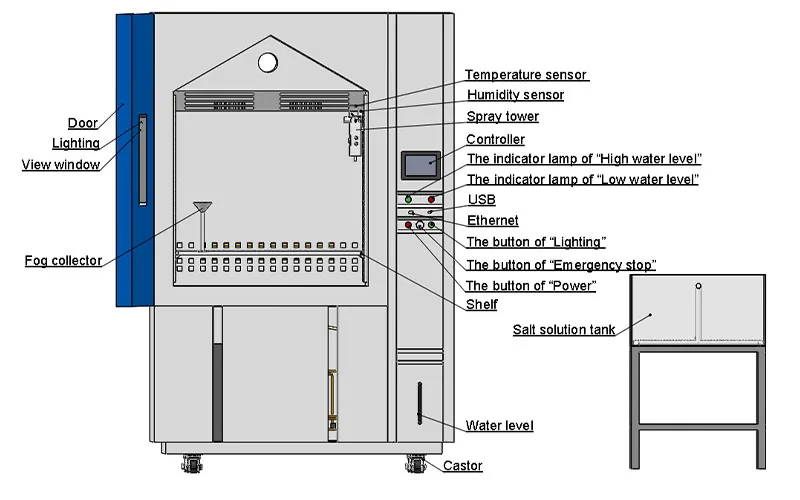

High-Performance Combined Salt Spray and Climate Test Chamber with Explosion-Proof System The Combined Salt Spray and Climate Test Chamber is an all-in-one environmental simulation system engineered for demanding automotive, electronics, and aerospace testing. By integrating a full-capability salt spray system into a standard vertical climatic chamber footprint, this advanced unit allows you to conduct complex cyclic corrosion tests (Salt Spray, Drying, Humidity, and Condensation) in a single continuous program without moving the specimens. Equipped with an industrial-grade Explosion-proof Win
เอกสารดาวน์โหลด
- Lib Th Chamber Cataloglib-th-chamber-catalog.pdfดาวน์โหลด PDF
- Lib Industry Temperature Humidity Chamber User Manuallib-industry-temperature-humidity-chamber-user-manual.pdfดาวน์โหลด PDF
- Lib Industry Temperature Humidity Chamber Applicable Standardslib-industry-temperature-humidity-chamber-applicable-standards.pdfดาวน์โหลด PDF
- Lib Industry Temperature Humidity Chamber Maintenance Processing Listlib-industry-temperature-humidity-chamber-maintenance-processing-list.pdfดาวน์โหลด PDF
- User Manual For Temperature Humidity Chamberuser-manual-for-temperature-humidity-chamber.pdfดาวน์โหลด PDF
คุณสมบัติ
- Advanced Personnel Safety:
- Reinforced with a multi-layer explosion-proof observation window, safeguarding operators during high-risk component tests (e.g., Li-ion battery cells or pressurized electronics).
- Zero-Drip Precision:

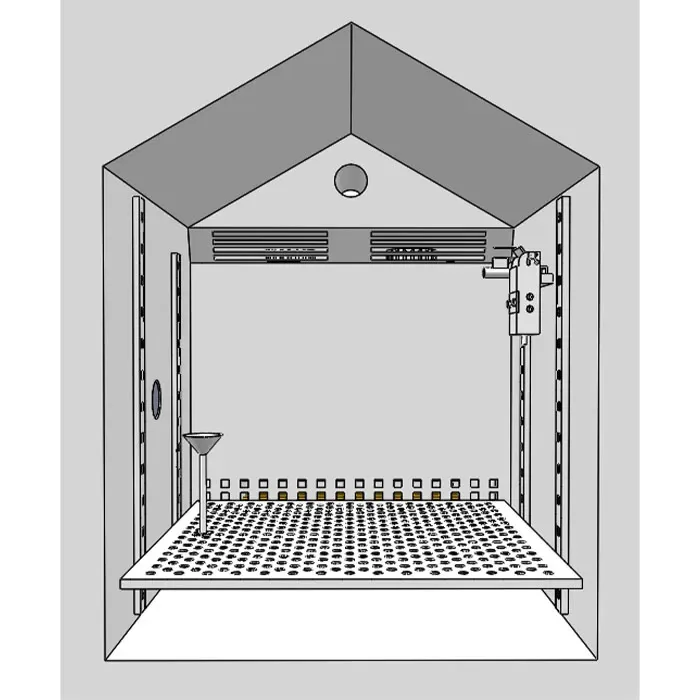

- The engineered V-shaped workspace ceiling channels condensation away from samples, eliminating false failures caused by localized corrosive dripping.
- Continuous Brine Agitation:
- Independent external brine tank equipped with an automated air-bubbling mixing system. Continuous bubble-driven agitation ensures the salt solution remains perfectly homogenous without salt precipitation, guaranteeing uninterrupted, long-term testing.
ข้อมูลจำเพาะ
| Parameter Item | Technical Specifications |
|---|---|
| Temperature Range | A: -20°C ~ +150°C / B: -40°C ~ +150°C / C: -70°C ~ +150°C (Customizable) |
| Temperature Stability | Fluctuation: ±0.5°C | Deviation: ±2.0°C |
| Humidity Range | 20% ~ 98% RH |
| Humidity Deviation | ±2.5% RH |
| Ramp Rates | Heating: ≥3°C/min | Cooling: ≥1°C/min(Customizable) |
| Salt Fog Deposition | 1.0 ~ 2.0 ml / 80cm²·h |
| Spray Automation | Continuous / Periodic programmable spray cycles |
| Observation Window | Multi-layer tempered explosion-proof safety window |
| Brine Management | External brine tank with automatic air-bubbling agitation |
| Water Supply System | Automatic water supply with integrated purification system |
| Smart Controller | Programmable color LCD touch screen controller with PC Link, LAN, and USB data logging |
| Interior Material | Premium SUS316L stainless steel |
| Safety Protection | Over-temperature protection, over-current protection, water shortage protection, leakage protection |
| Applicable Standards | ASTM B117, IEC 60068-2-11, IEC 60068-2-52, ISO 9227, SAE J2334 |
