- ISO 4892
- ASTM G154
- SAE J2020
- ISO 4892-3
- ASTM D4587

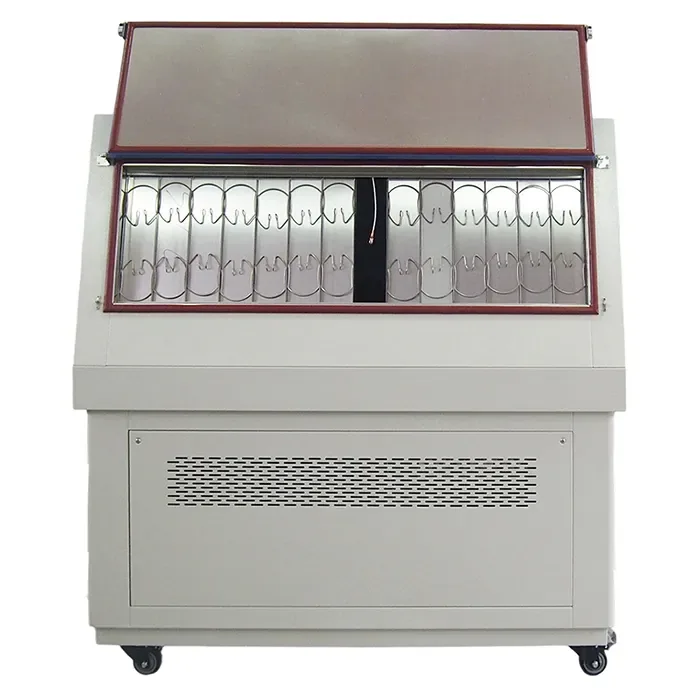

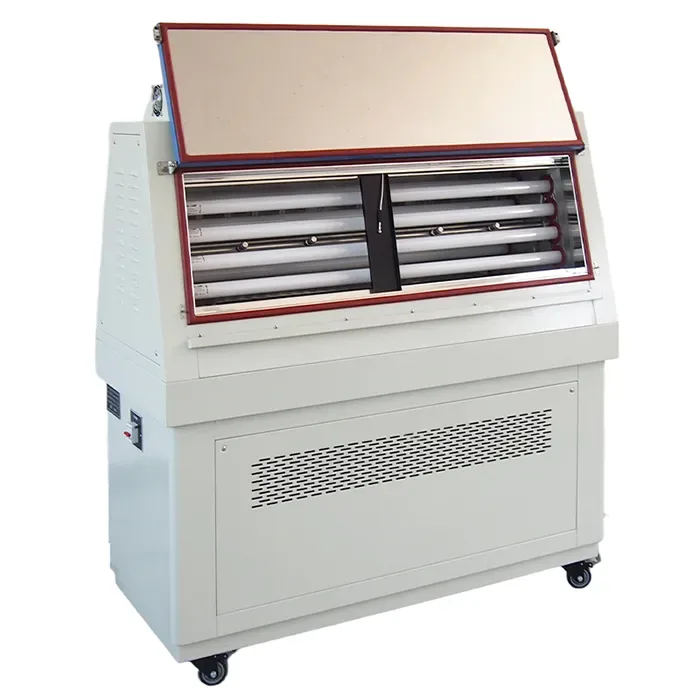

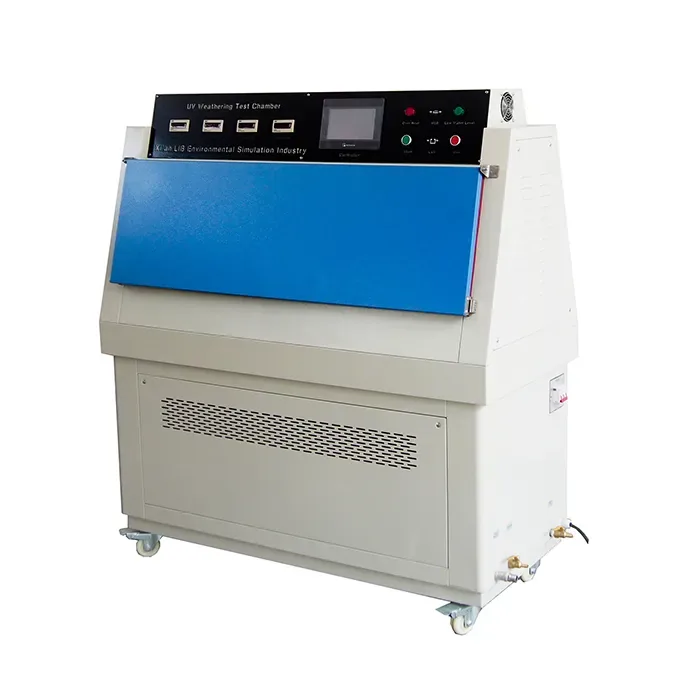

UV Accelerated Weathering Tester
LIB · Weathering, UV & Ozone

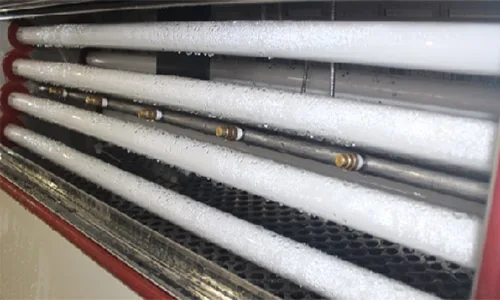

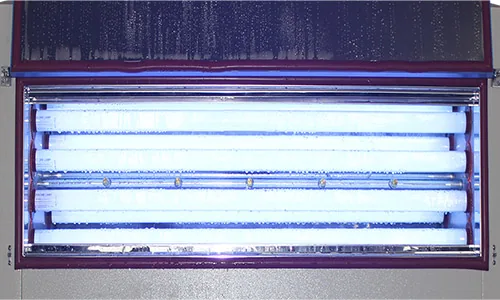

Recreate Years of Outdoor Exposure in Just Weeks The UV accelerated weathering tester brings industry-proven performance to laboratories seeking faster, more reliable durability validation. By using precision-controlled UVA-340 or UVB-313 lamps , it replicates the most destructive portion of sunlight responsible for material degradation. An advanced condensation cycle simulates real-world dew conditions—often more aggressive than rain—accelerating failure mechanisms such as cracking, fading, and loss of strength.
เอกสารดาวน์โหลด
ข้อมูลจำเพาะ
| Internal Dimension (mm) | 450*1170*500 |
|---|---|
| Overall Dimension (mm) | 680*1300*1500 |
| Specimen Holder Size (mm) | 75*150 |
| Specimen Capacity | 56 Pieces |
| Irradiation Source | Fluorescent UV lamps (8) - 40 W |
| Temperature Range | Ambient ～ 90 ℃ ±2℃ |
| Black Panel Temperature (BPT) | 35 ～ 80 ℃ |
| Humidity Range | ≥95% RH |
| Bandwidth | 290 ~ 400 nm |
| Irradiance Control | 0.3~20 W/㎡ |
| Water Spray Cycle | 1~9999H59M (Adjustable) |
| Distance of Specimen and lamp | 50 mm |
