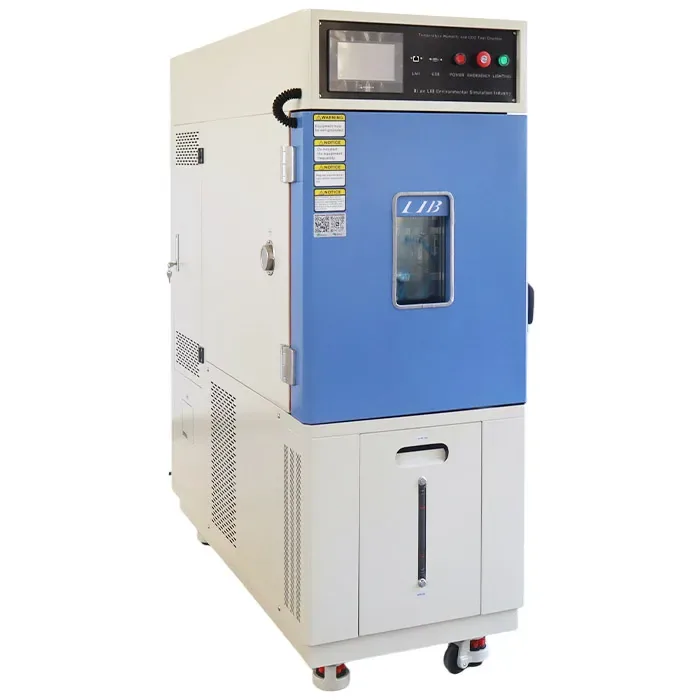

Temperature Humidity and CO₂ Test Chamber
LIB · Temperature & Humidity Chambers
The temperature humidity and CO₂ test chamber is a device that combines 0% to 20% concentration CO2 gas on the temperature and humidity test chamber. It is used for testing products, materials or biological samples under the combined control of temperature (-60℃ to +150 ℃), humidity (10% to 98% RH) and CO2 concentration.Widely used in electronics and materials testing to evaluate product durability, in biotechnology and pharmaceuticals , and in food research. The small benchtop, upright, and walk-in types of Temperature Humidity and CO₂ Test Chambers LIB can all be customized.
เอกสารดาวน์โหลด
- Lib Th Chamber Cataloglib-th-chamber-catalog.pdfดาวน์โหลด PDF
- Lib Industry Temperature Humidity Chamber User Manuallib-industry-temperature-humidity-chamber-user-manual.pdfดาวน์โหลด PDF
- Lib Industry Temperature Humidity Chamber Applicable Standardslib-industry-temperature-humidity-chamber-applicable-standards.pdfดาวน์โหลด PDF
- Lib Industry Temperature Humidity Chamber Maintenance Processing Listlib-industry-temperature-humidity-chamber-maintenance-processing-list.pdfดาวน์โหลด PDF
- User Manual For Temperature Humidity Chamberuser-manual-for-temperature-humidity-chamber.pdfดาวน์โหลด PDF
ข้อมูลจำเพาะ
| Internal Dimension (mm) | 100*100*100 D*W*H |
|---|---|
| Overall Dimension (mm) | 2100*1100*1700 D*W*H |
| Interior Volume (Liter) | 100L |
| Temperature Range | -60℃ ~ +150 ℃（customized） |
| Cooling Rate | 1 ℃ / min, average |
| Heating Rate | 3 ℃ / min, average |
| Temperature Accuracy | ± 0.5 ℃ |
| Heat load | 1000W |
| Humidity Range | 10% ~ 98% RH（customized） |
| Humidity Accuracy | ± 1% RH~± 1.5% RH |
| CO2 Range | 0%~20% |
| CO2 Accuracy | <± 0.4% RH |

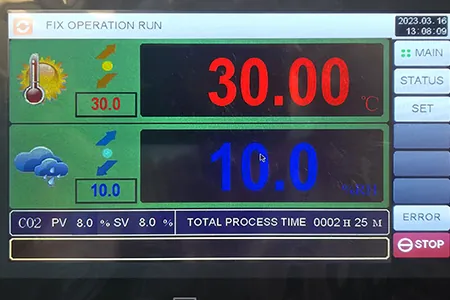

| Controller | Programmable color LCD touch screen controller，Ethernet connection, PC Link |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
