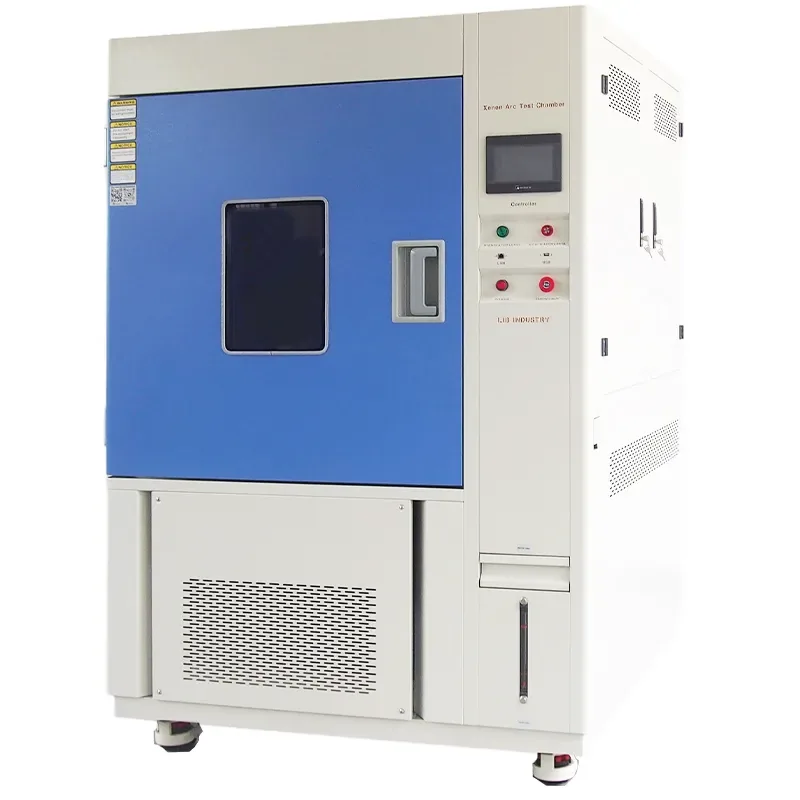

Simulation Xenon Exposure Aging Test Equipment

Designed for laboratories that demand authentic outdoor aging reproduction, the Simulation Xenon Exposure Aging Test Equipment by LIB industry transforms controlled xenon radiation into a full-spectrum degradation platform. Its 4500W water-cooled xenon lamp delivers stable 35-150 W/m² irradiance with ±0.5% control accuracy , covering UV–VIS–IR wavelengths. Environmental conditions are precisely regulated with BPT 35 ～ 85 ℃ , 50–98% RH , and programmable light, spray, and dark cycles.

Uniformity across the workspace is maintained within ±1.5 °C , supported by a SUS 304 stainless-steel test chamber and efficient air-mixing design. A multilingual touchscreen, automatic lamp monitoring, and long-run safety protections make it ideal for evaluating coatings, polymers, automotive interiors, and PV materials under accelerated weathering scenarios.

Standard Models: XL-S-750, XL-S-500 (more custom dimensions available)

Standards Compliance: ASTM G151, ASTM G155, ISO 4892-2, ISO 105-B02/B04, AATCC TM16, IEC 60068-2-5, SAE J2020

Why Industries Trust the Simulation Xenon Exposure Aging Test Equipment from LIB Industry

1. True Solar Replication Performance

By combining full-spectrum reproduction with a highly stable 4500W water-cooled xenon source, the system delivers sunlight-accurate indoor acceleration without intensity drift. Its wide, precisely adjustable irradiance window (35–150 W/m²) allows users to simulate anything from mild outdoor exposure to extreme UV stress.

2. Precision-Controlled Photothermal Testing

A dedicated UV radiometer continuously verifies spectral output, while ±0.5°C black-panel temperature accuracy ensures consistent light-heat interaction on every specimen. Closed-loop irradiance regulation automatically compensates for lamp aging, guaranteeing tight repeatability for long-duration, performance-critical studies.

3. Uniform Exposure & Realistic Weather Cycles

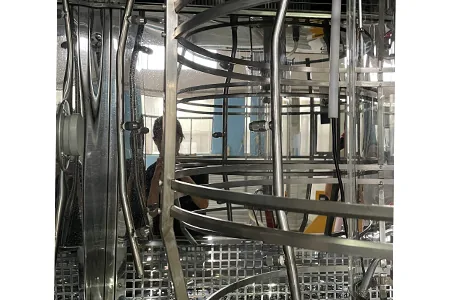

A rotating specimen carousel provides 360° uniform irradiation, supported by sample-level spray nozzles and an auto-cleaning water system to prevent clogging. Integrated condensation cycles recreate dew, moisture, and wet-cold transitions, enabling true outdoor weather chemistry inside a controlled test environment.

4. High-Efficiency Operation & Lower Testing Cost

The water-cooled design delivers superior thermal efficiency, reducing power consumption during extended runs. Standardized mechanical architecture shortens service intervals, while enhanced acceleration performance helps laboratories cut development time and testing cost without compromising data integrity.

Core Technical Parameters —Simulation Xenon Exposure Aging Test Equipment

Engineering Highlights – Xenon Light Fastness Aging Test Device

FAQ - Simulation Xenon Exposure Aging Test Equipment

Q1:Can I test unusual sample shapes or oversized panels?

Yes. The 360° rotating sample drum and customizable racks allow irregularly shaped or large panels to receive uniform light, humidity, and temperature exposure.

Q2: What happens if I want to simulate extreme UV or low irradiance conditions?

LIB industry can provide custom optical filters and irradiance adjustments, enabling simulation of extreme high-UV environments (e.g., tropical sunlight) or low-light aging for sensitive polymers.

Q3: How do I know my data is repeatable across batches?

The system’s independent air circulation, precise black panel temperature, and rotating drum design ensure high repeatability. Each test is validated for identical exposure conditions, even with multiple test cycles or samples.

Unlock Predictable Material Lifespan with LIB Industry’s Simulation Xenon Exposure Aging Test Equipment

Don’t wait for outdoor exposure to reveal your material’s weaknesses. Configure your custom xenon simulation system today and start producing reliable, repeatable, accelerated aging data.

Contact LIB industry now → [email protected]

Why Choose LIB?

Customizable irradiance, filters, and workroom volumes

Multi-standard compliance (ASTM, ISO, IEC, AATCC)

Long-term reliability with water-cooled lamp technology

3-year warranty + lifetime technical support
