IP6K9K Test Machine

LIB · Water Ingress & Rain Testing (IPX)

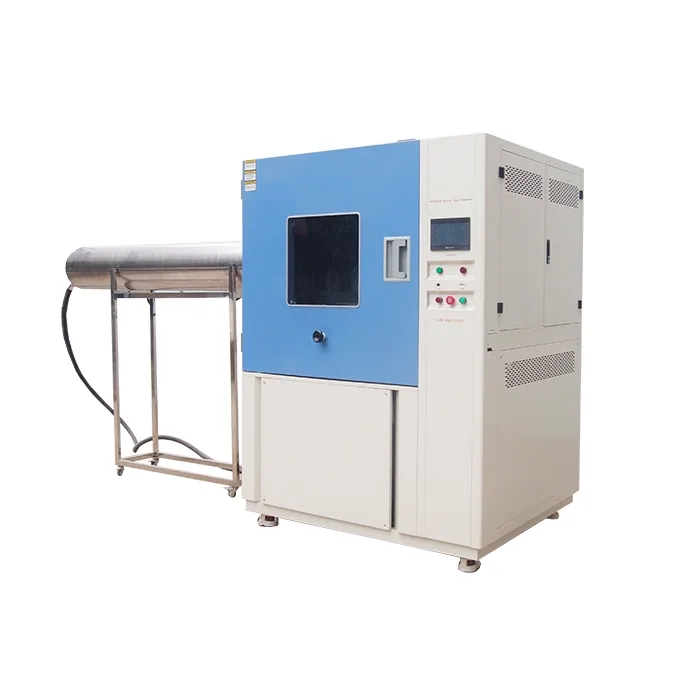

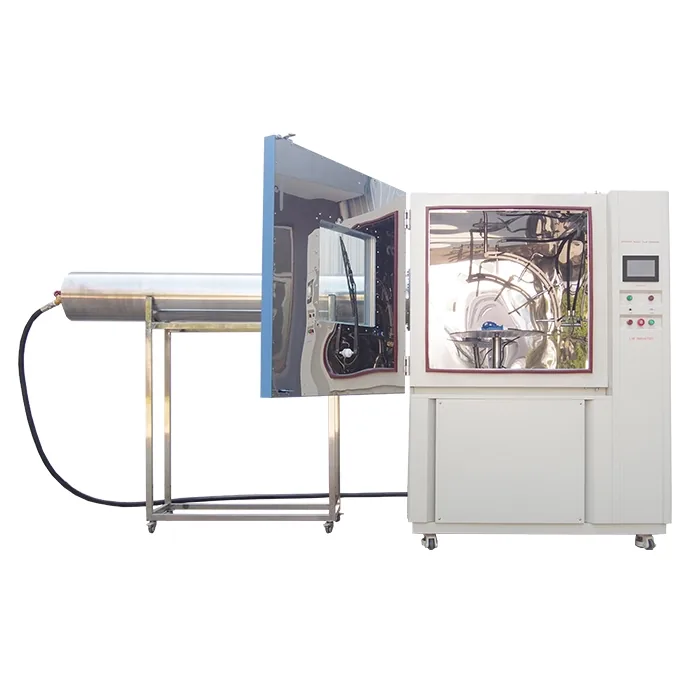

IP6K9K Test Chamber | IPX6K IPX9K High Pressure Water Spray Testing Machine The IP6K9K test chamber is a high-performance environmental testing system designed to evaluate the protection level of product housings under high-pressure, high-temperature water spray conditions . 6 indicates anti-strong water spraying, and K represents the higher water spraying intensity. 9K is mainly to simulate the protection test of high temperature 88℃ and high pressure water 8000-10000kpa.It combines IPX6K strong water jet testing and IPX9K high-pressure hot water testing , making it a critical solution for va

เอกสารดาวน์โหลด

• Lib Ip Test Equipmentlib-ip-test-equipment.pdfดาวน์โหลด PDF

คุณสมบัติ

• ✔ Dual IPX6K & IPX9K Testing System
• One machine supports both high-pressure water jet and high-temperature spray testing.
• ✔ Stable High-Pressure Water Control
• Water pressure is precisely controlled between 8000–10000 kPa for IPX9K testing.
• ✔ High-Temperature Spray Simulation (Up to 88°C)
• Simulates real automotive cleaning and environmental exposure conditions.
• ✔ Fully Automatic PLC Control System
• Touchscreen interface allows users to set:
• Spray time
• Water temperature
• Turntable speed
• Spray angles
• ✔ SUS304 Stainless Steel Chamber
• Corrosion-resistant structure ensures long-term durability and stable performance.

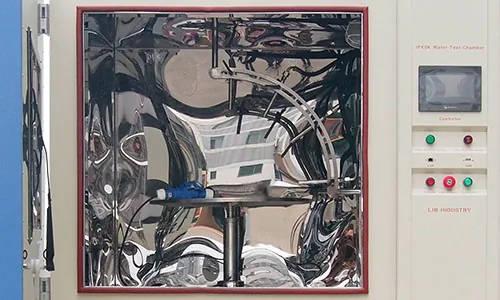

• ✔ Adjustable Sample Turntable
• Speed: 5 ± 1 r.p.m
• Load capacity: 50 kg
• Height adjustable for different sample sizes

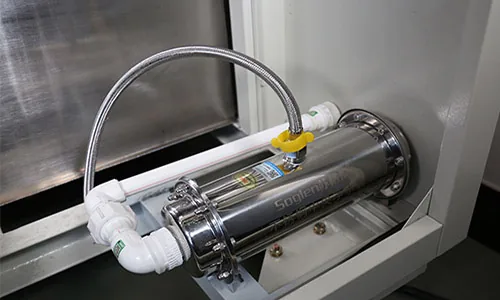

• ✔ Built-in Water Filtration System
• Filters particles down to 0.03 mm to ensure stable nozzle performance.
• learn more info about IP6K9K test chamber
