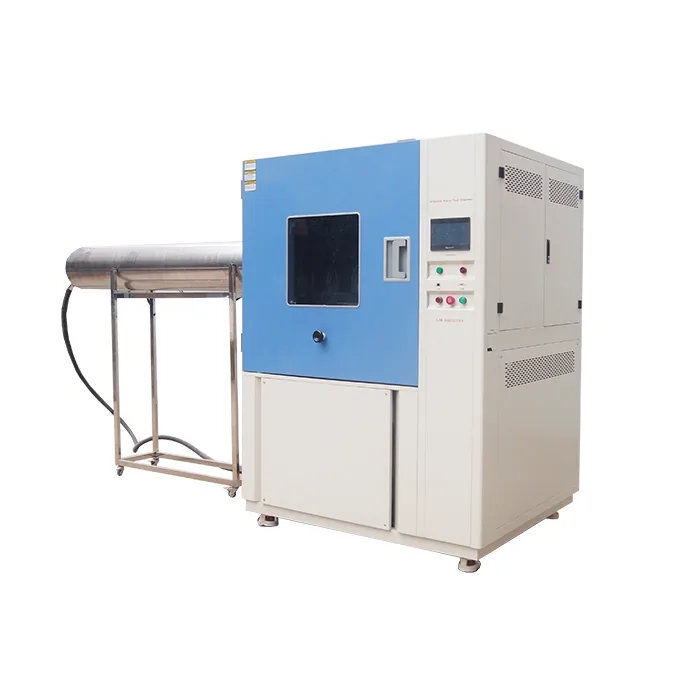

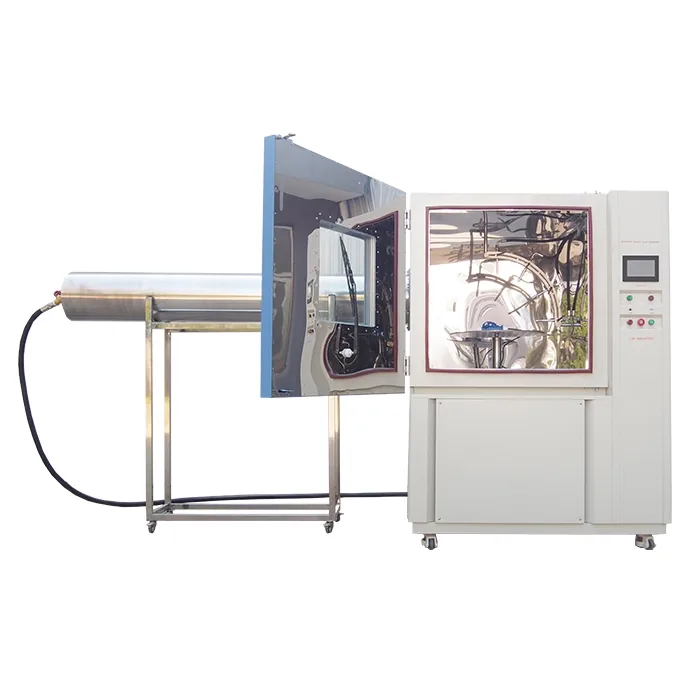

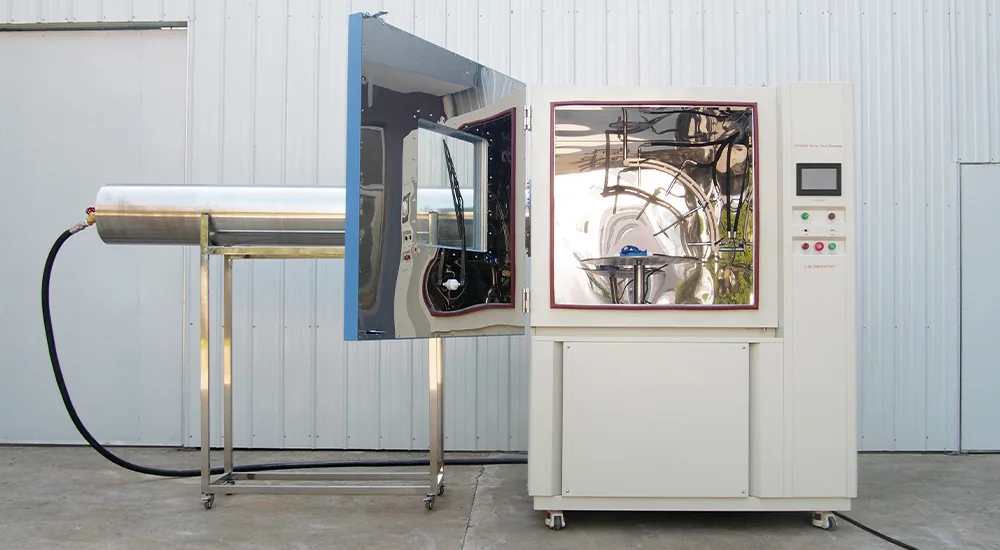

IP6K9K Test Chamber

LIB · Water Ingress & Rain Testing (IPX)

The IP6K9K test chamber is a specialized testing device designed to evaluate the waterproof performance of products under high-pressure and high-temperature water spray conditions,ensuring your products can withstand the most demanding environments. IPX6K indicates resistance to powerful water jets with a flow rate of 100L/min, simulating harsh cleaning or rain scenarios. IPX9K represents an even more rigorous test, involving high-pressure, high-temperature water sprays.

เอกสารดาวน์โหลด

• Lib Ip Test Equipmentlib-ip-test-equipment.pdfดาวน์โหลด PDF

คุณสมบัติ

• Dual Protection Testing – IPX6K & IPX9K in One Unit
• The IP6K9K test chamber supports both IPX6K and IPX9K waterproof tests, enabling users to perform multiple high-pressure water tests in a single unit.
• Precise High-Pressure Spray

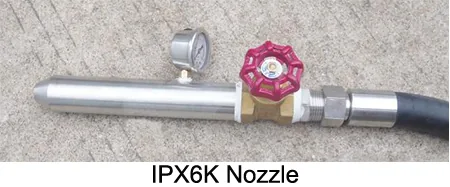

• IPX6K : Spray pressure up to 1000 kPa (10 kg), with a water flow rate of approximately 75 ± 5 L/min.

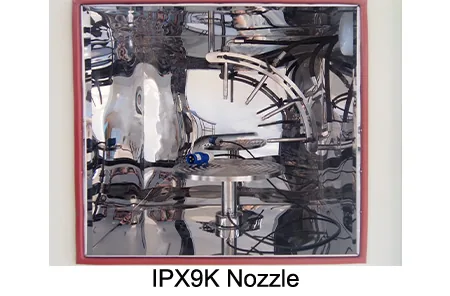

• IPX9K : Injection water pressure between 8000–10000 kPa (80–100 bar), spray flow rate of 14–16 L/min.The spray is directed at four fixed angles—0°, 30°, 60°, and 90°—with precise pressure and flow control to ensure accurate and repeatable testing.

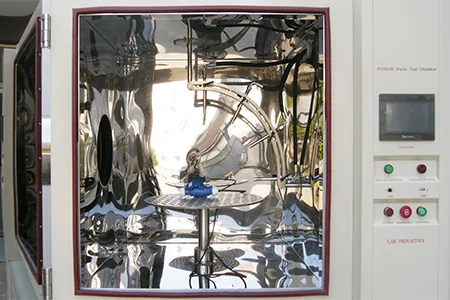

• Flexible and Adjustable T urnt able
• Adjustable height and rotation speed, allowing it to accommodate samples of various sizes and shapes, including a waterproof electrical interface for powering up.
• Automated Water Intake System
• The IP6K9K test chamber allows direct connection to the lab faucet, enabling fully automated water intake and testing. The inlet is a standard 1/2 inch (13.5 mm) diameter for easy installation.
• Safety Monitoring and Alerts
• Equipped with high and low water level alarms, the system ensures uninterrupted testing.
