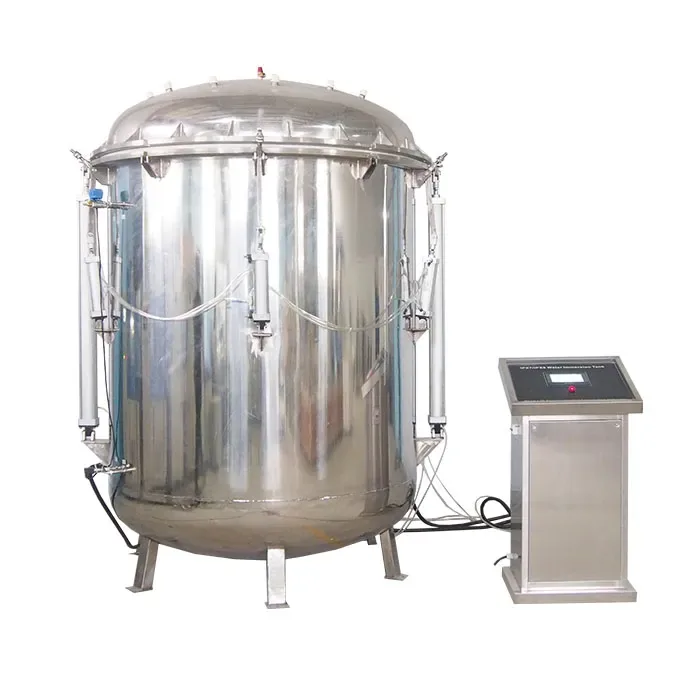

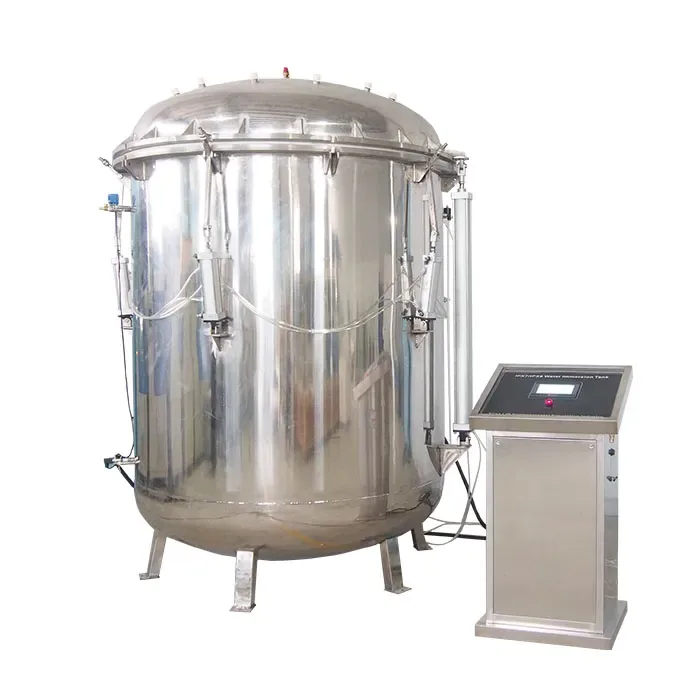

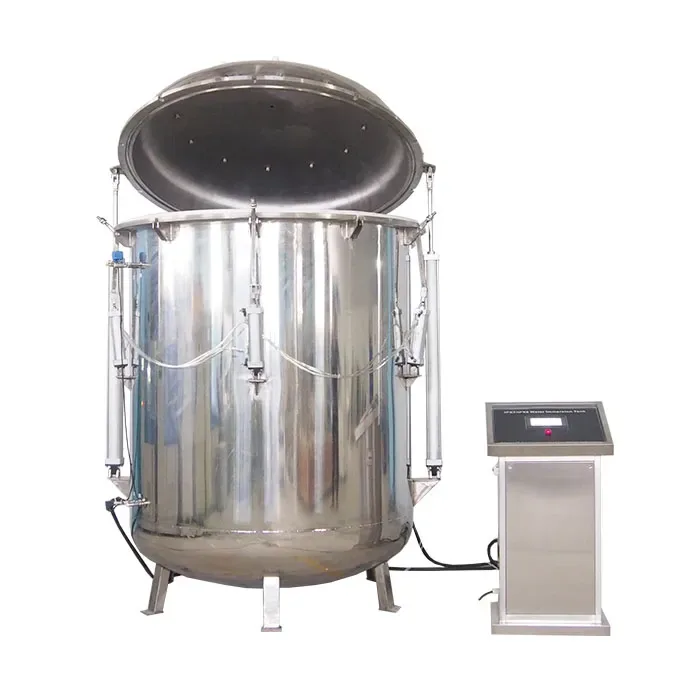

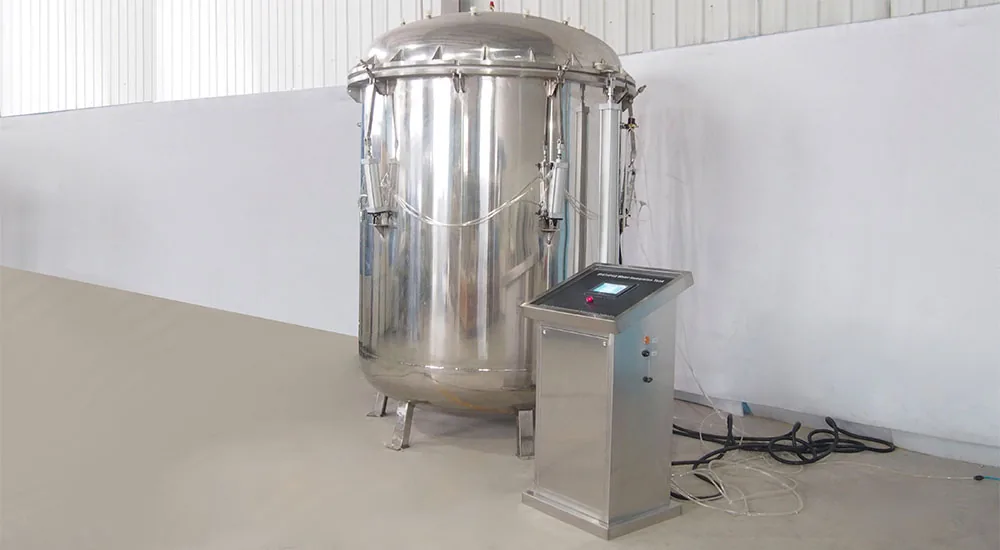

IP68 Water Proof Testing unit
LIB · Water Ingress & Rain Testing (IPX)
The IP68 Testing Unit from LIB industry incorporates two independent testing solutions in one: IP6X Dustproof Testing Unit and IPX8 Waterproof Testing, enabling comprehensive evaluation of products’ ingress protection complying with IEC 60529. The P68 water proof testing unit supports configurable test parameters including immersion depth up to 3 meters(The standard model can simulate water depths up to 50 meters or deeper), duration up to 72 hours and water temperatures +10°C to +40°C, simulating continuous submersion. Programmable cycles, adjustable immersion speed, and automatic water intak
เอกสารดาวน์โหลด
ข้อมูลจำเพาะ
| Internal Dimension (mm) | Diameter 600mm * Height 1500 mm |
|---|---|
| Overall Dimension (mm) | Diameter 800mm * Height 1800 mm |
| Pressure | 50m water depth pressure |
| Open mode | Pneumatic lid |
| Material | A3 steel plate, wall thickness 15mm |
| Water Supply System | Storage water tank, Automatic water supply |
| Water depth | Water depth pressure range 1~50m, adjustable |
| Controller | Programmable color touch screen type controller, display temperature, specimen surface temperature, water depth, run time. |
| Open/close | Open/close lid by pneumatic lift, with safety lock. |
