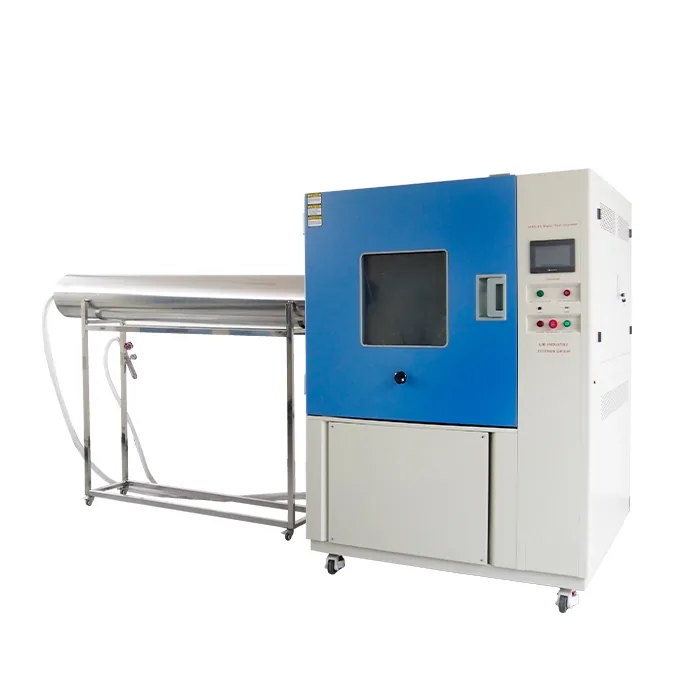

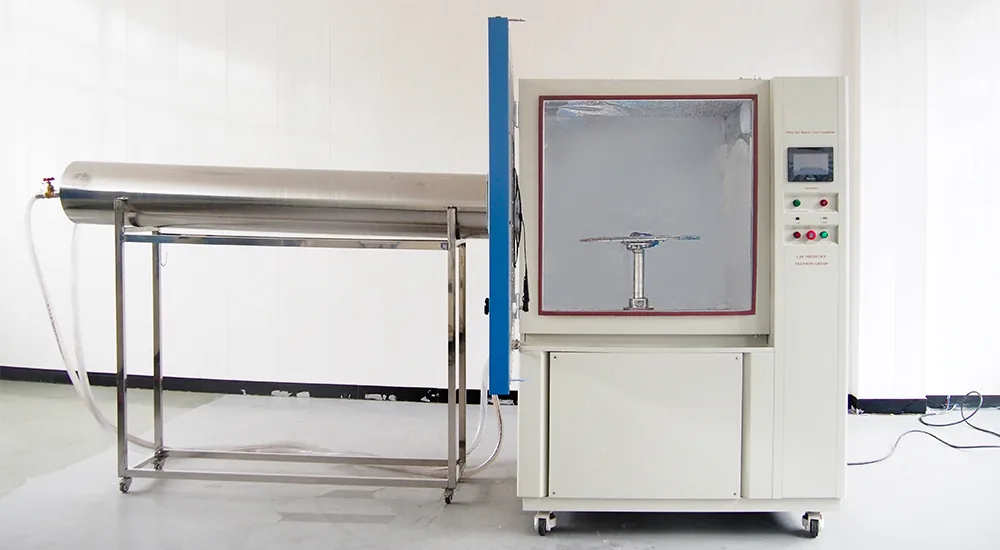

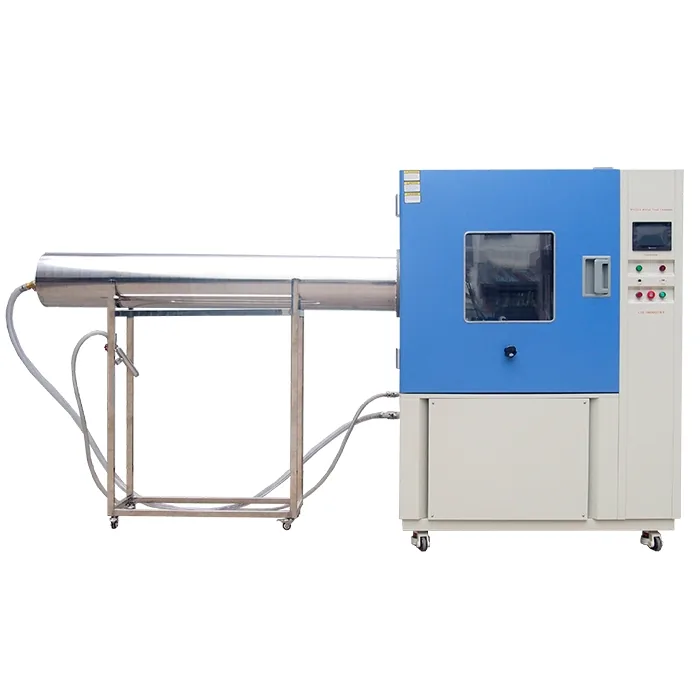

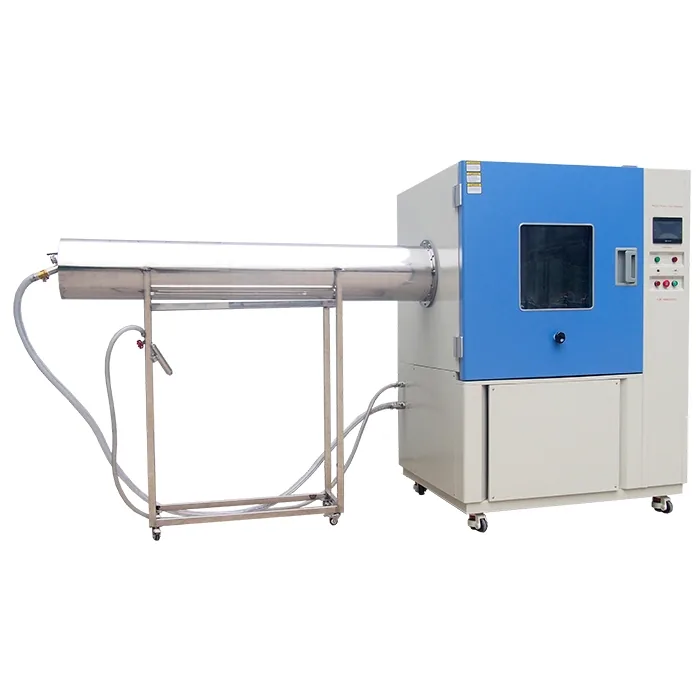

IP56 Waterproof Chamber
LIB · Water Ingress & Rain Testing (IPX)
IP56 waterproof chamber meets the IPX5 and IPX6 waterproof grades in IEC60529 standard, "5" means that the water flow from the nozzle should spray the product shell from any angle, 6: prevents strong water. IP56 waterproof chamber is designed to test IPX5, IPX6 water jet protection level test. Model: R56-800 Standard: IEC 60529, IPX5, IPX6, ISO20653, IEC 60068-2-68, IEC 60598, MIL-STD-810G, GJB 150.8-86, ISO 20653, UL 50E, UL 1598, UL 153, UL1573, UL 60950-1
เอกสารดาวน์โหลด
คุณสมบัติ

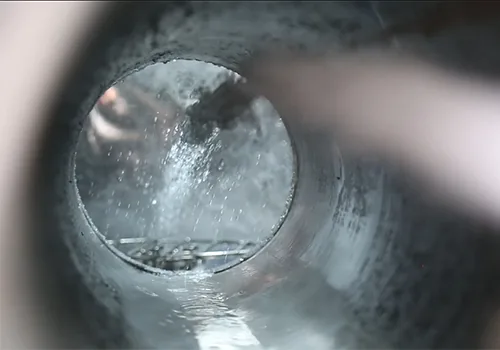

- Nozzle with different aperture: IPX5 test chamber is equipped with nozzle with diameter of 6.3mm;IPX6 test is 12.5mm, which simulates the spray effect of different strengths.

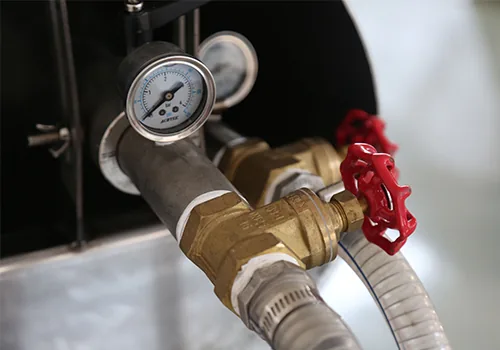

- Precise water flow control: IPX5 water flow is 12.5±0.625 (L/min); IPX6 water flow rate of 100±5 (L/min), through the flow meter can precisely adjust and control the water speed.
- Specific spray distance: The distance from the nozzle to the sample is generally 2.5-3m, which can ensure that the water has the right impact and coverage area when it reaches the sample surface.
- Control system function: water spraying parameters such as water spraying time, water spraying cycle, water flow intensity can be set on the touchable controller.

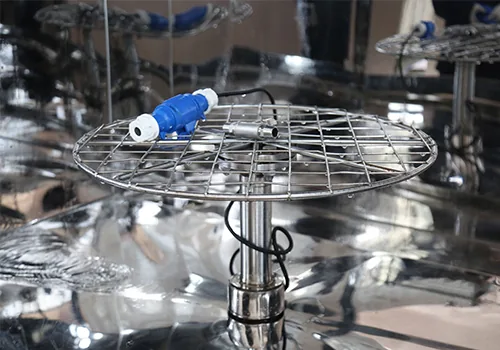

- Rotatable sample table makes sure that specimen can get even water jetting impact, adjustable in height, equipped with waterproof single-phase power interface.
ข้อมูลจำเพาะ

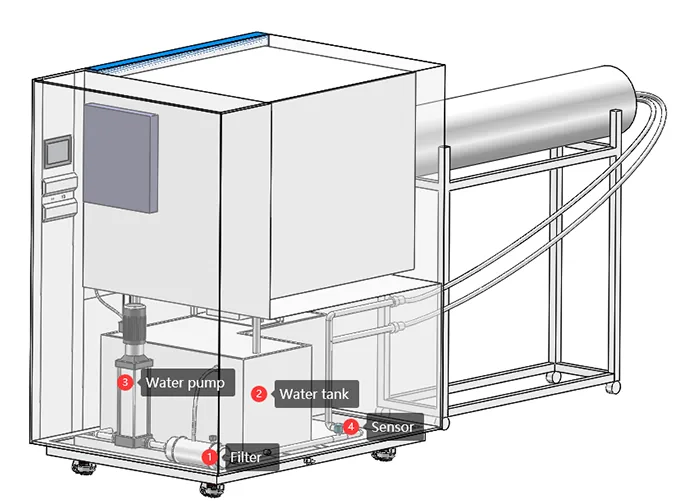

| Configuration of IP56 Waterproof Chamber | ①Filter |
|---|---|
| Filter impurities in 0.03mm particles, avoid nozzle blockage, ensure water spraying uniformity and stable flow, and protect equipment. | ②Water tank |
| Water storage to provide a sufficient water source for the test and balance the water pressure changes so that the water can be recycled. | ③Water pump |
| Provide power to extract water from the tank, and provide sufficient pressure, and can control the flow and pressure of water. | ④Sensor |
| Monitor the operating status of the equipment and feed back the control signal: the monitored information is fed back to the control system. | A series of water pipes are arranged in LIB Industry IP56 waterproof chamber to form a water circulation system, which greatly reduces the water consumption. |
