Explosion Proof Battery Thermal Runaway Chamber
LIB · Battery & Energy-Storage Testing

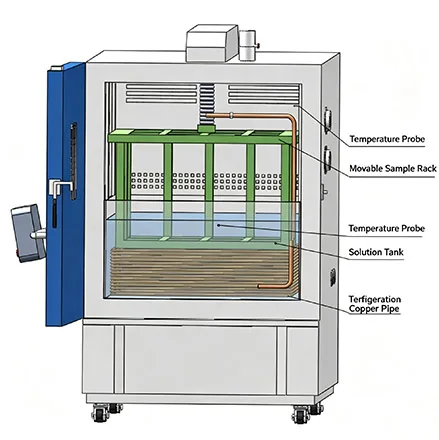

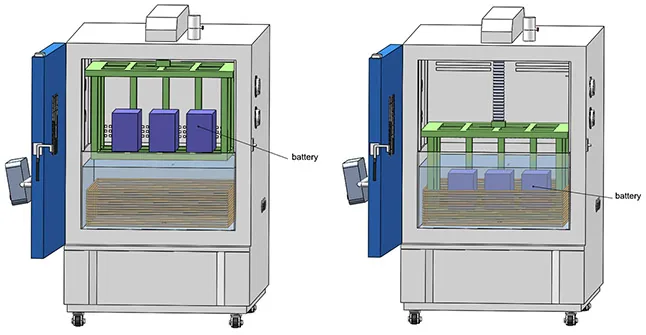

With Cooling Liquid Tank and Automatic Lift Basket The Explosion Proof Battery Thermal Runaway Chamber from LIB industry is an advanced, highly specialized environmental test system engineered specifically for the safety testing of next-generation lithium-ion battery cells, modules, and packs. Designed to meet the stringent demands of the electric vehicle (EV) and energy storage systems (ESS) industries, this chamber offers an unparalleled dual-environment testing framework, allowing engineers to transition seamlessly between standard air-based thermal abuse and advanced liquid immersion cooli
เอกสารดาวน์โหลด
- Lib Th Chamber Cataloglib-th-chamber-catalog.pdfดาวน์โหลด PDF
- Lib Industry Temperature Humidity Chamber User Manuallib-industry-temperature-humidity-chamber-user-manual.pdfดาวน์โหลด PDF
- Lib Industry Temperature Humidity Chamber Applicable Standardslib-industry-temperature-humidity-chamber-applicable-standards.pdfดาวน์โหลด PDF
- Lib Industry Temperature Humidity Chamber Maintenance Processing Listlib-industry-temperature-humidity-chamber-maintenance-processing-list.pdfดาวน์โหลด PDF
- User Manual For Temperature Humidity Chamberuser-manual-for-temperature-humidity-chamber.pdfดาวน์โหลด PDF
ข้อมูลจำเพาะ
| Core Application | Battery Thermal Runaway Abuse Testing (Air & Liquid Immersion Dual Mode) |
|---|---|

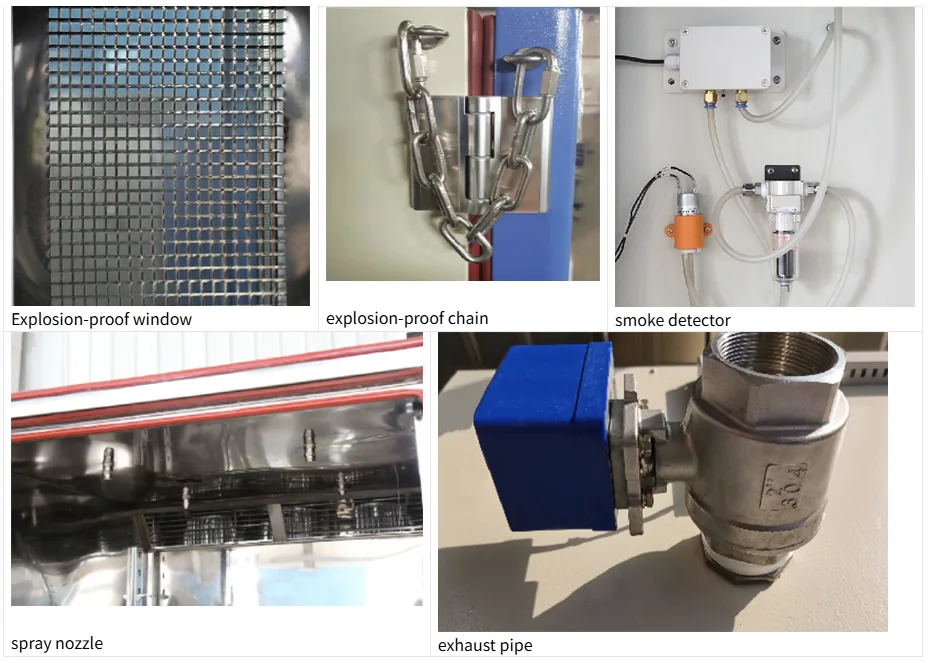

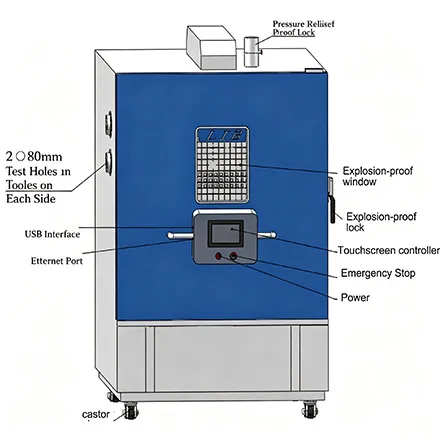

| Explosion-Proof Rating | Ex d IIB T4 Gb / ATEX Compliant Structure |

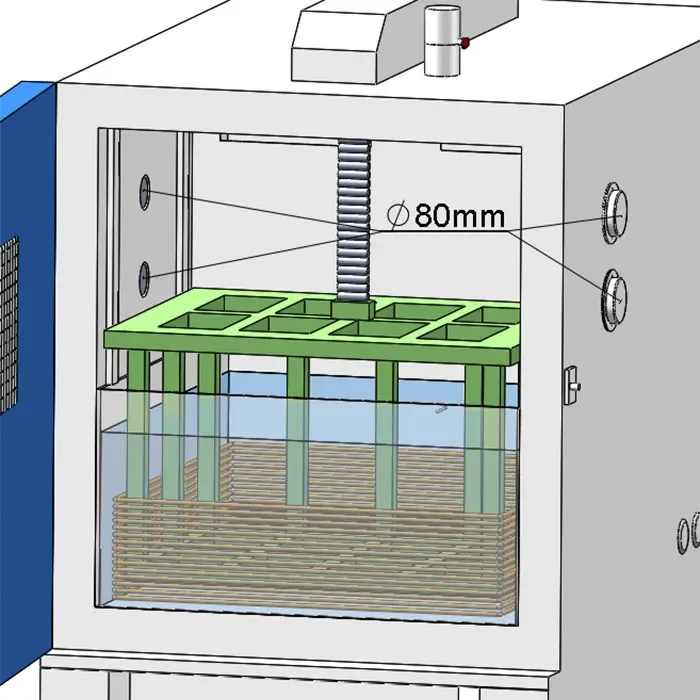

| Lift Basket Payload | Standard 20kg / 50kg (Customizable up to 150kg for Battery Modules) |
| Tank Medium Temperature | Adjustable Fluid Temperature with Continuous Monitoring |
| Chamber Temperature Range | -40°C to +150°C (Optional Extended High-Temperature Capability) |
| Temperature Fluctuation | ± 0.5 ℃ |
| Temperature Deviation | ± 2.0 ℃ |
| Safety Standards | UL 2580 / IEC 62619 / UN 38.3 / SAE J2464 / GB 38031 |
