MT 1 Sieve Residue Testing Device
HITEC · Sieve Residue Testing Device

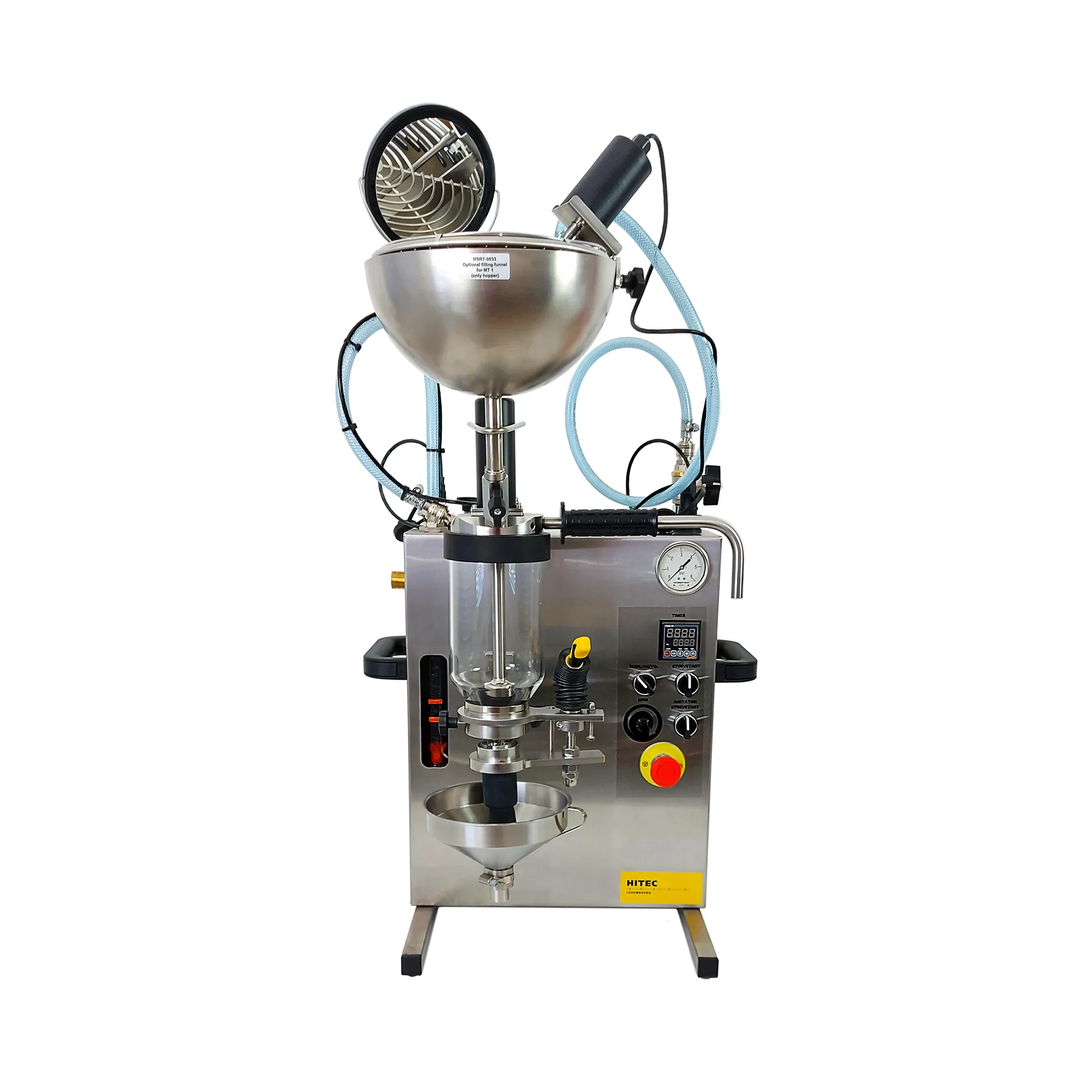

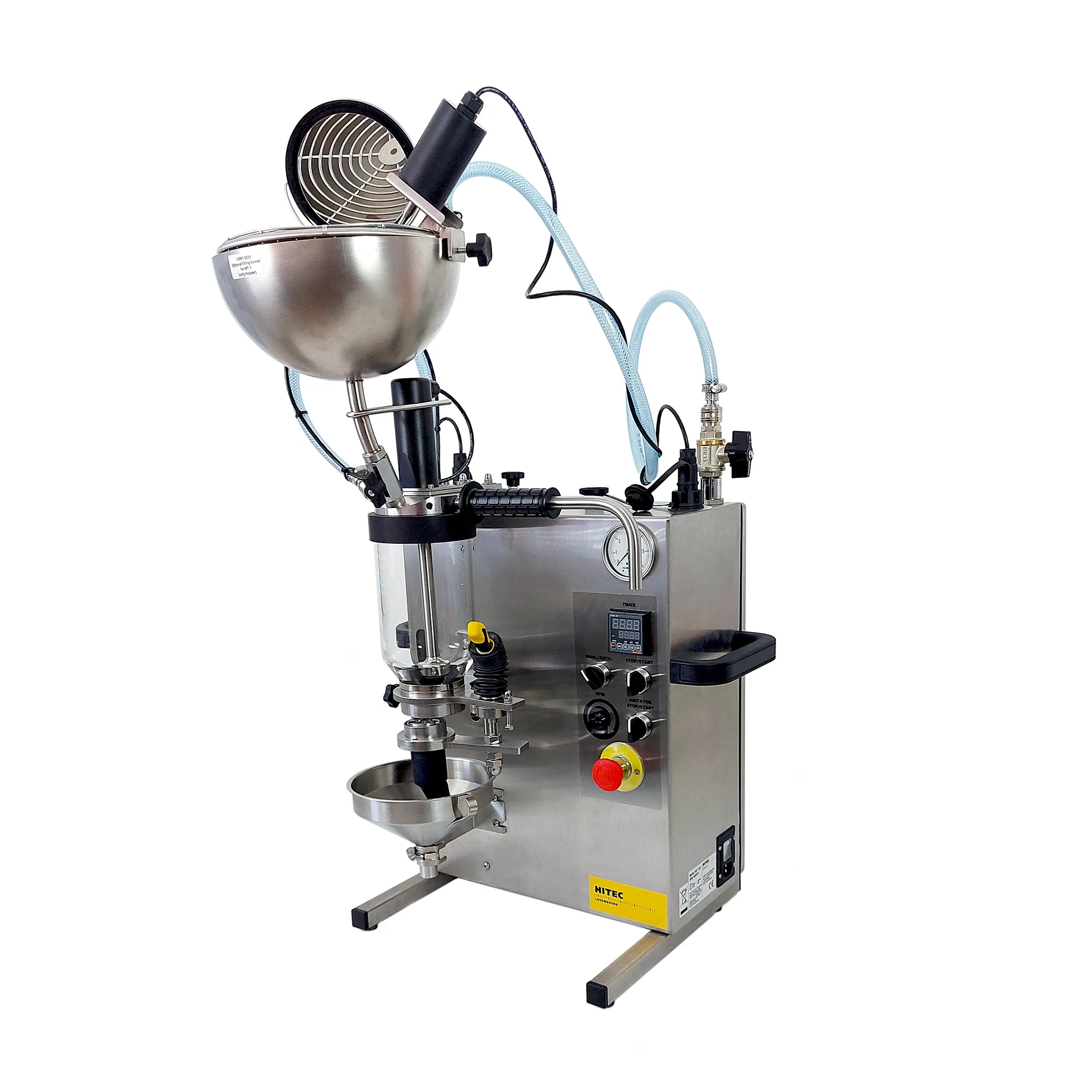

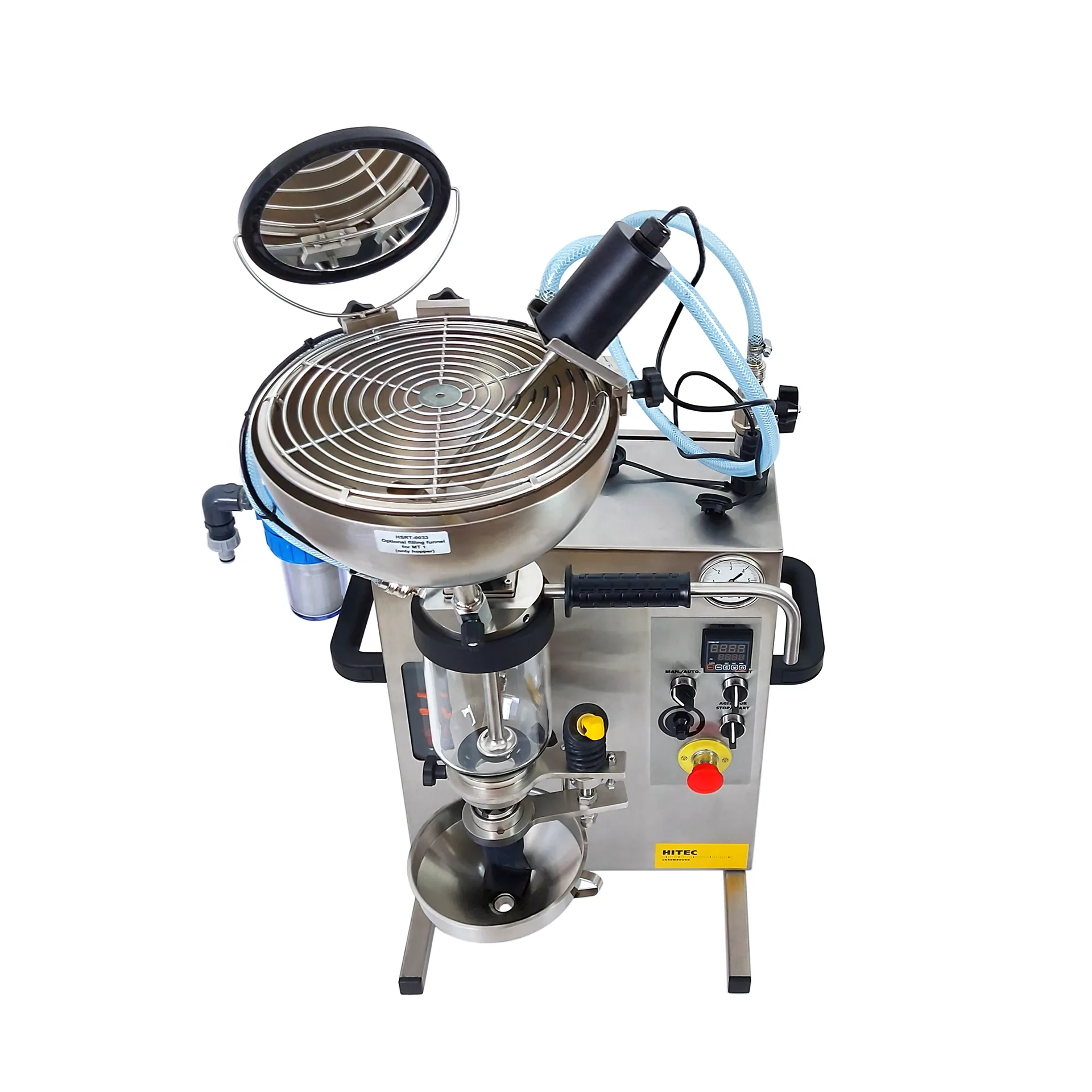

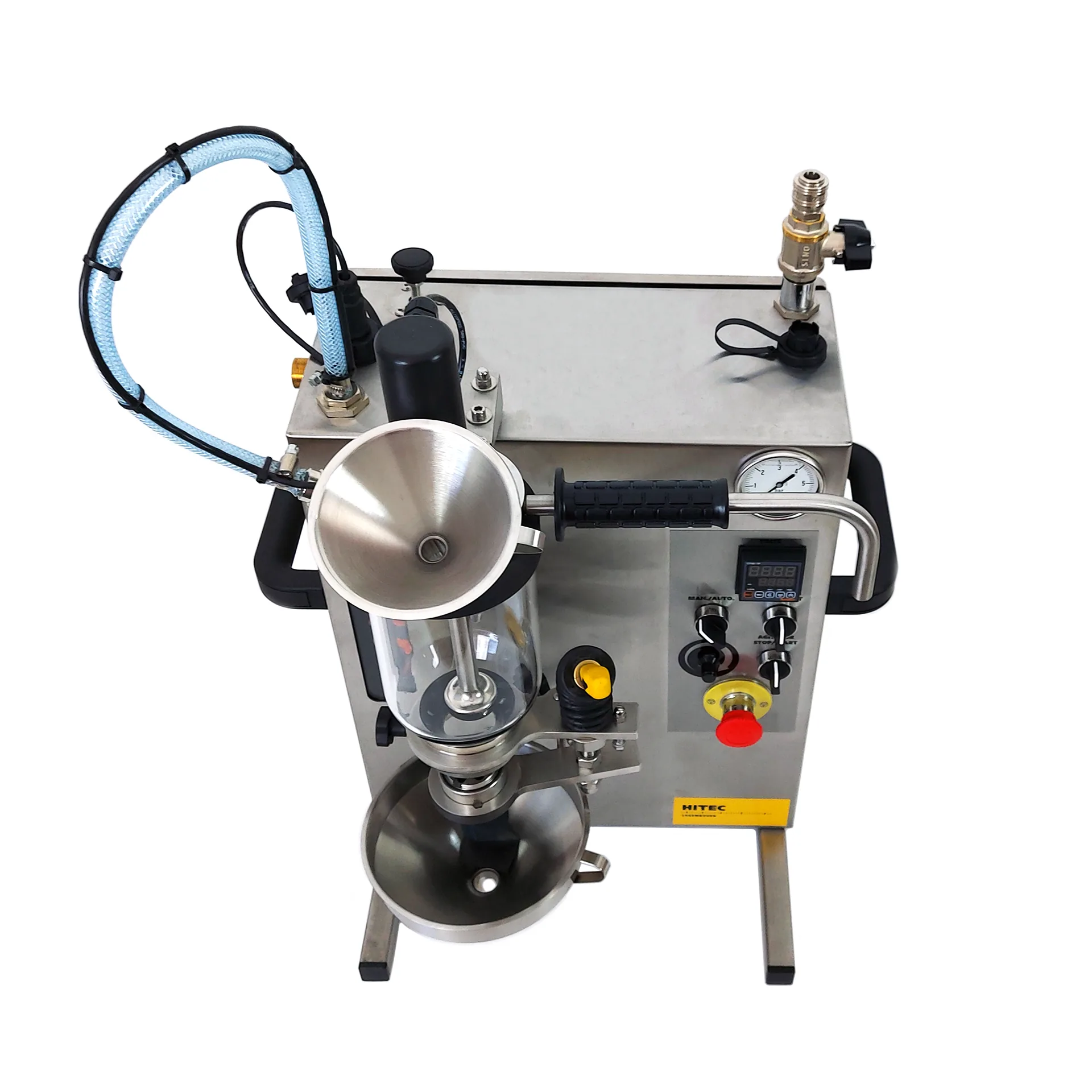

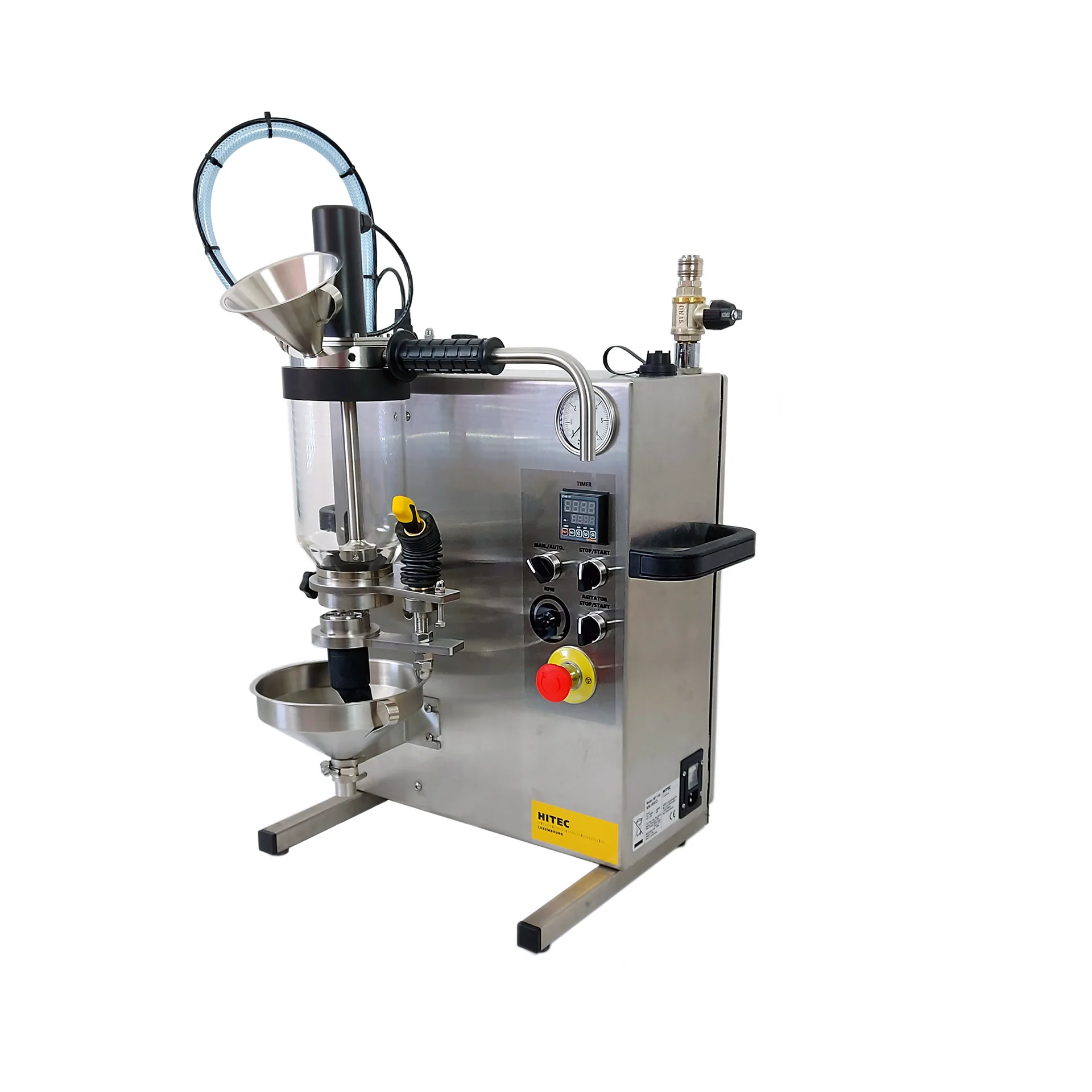

Sieve residue testing device (Mocker apparatus) for pigments, extenders and other powders, designed to DIN EN ISO 787-18. A water jet rotor circulates the sample inside a glass vessel and flushes fines through the sieve, leaving the residue for gravimetric analysis.
เอกสารดาวน์โหลด
ข้อมูลจำเพาะ
| Range of application | Wet sieving, separation, cleansing from mud, screen cut |
|---|---|
| Input materials | Powder, suspension and mud |
| Number of fractions | Standard 1 (max. 2) |
| Charge / solid matter amount | 5 to 200 g |
| Measurement range | 0.020 mm to 0.8 mm |
| Housing | Stainless steel |
| Analysis sample vessel | Stainless steel / Glass |
| Pressure reducing valve, brass, adjustable | 0 – 6 bar |
| Water pressure standard set up | 3 bar – according to ISO 787-18 |
| Flow meter | 60 – 600 l/h |
| Typical flow at the nozzles | 145 l/h |
| Typical total flow rate | ~ 340 l/h |
| Input funnel | Stainless steel |
| Discharge unit with hose | Stainless steel |
| Emission value EN ISO 3740 | LpA eq = < 50 dB (A) |
| Noise parameters | DIN 45635-01 |
| Timer | Programmable digital timer |
| Voltage range | 110 – 240 VAC, 50/60 Hz |
| Water supply requirement | At least 4 bar ±0.2, 600 l/h |
| Weight | 29 kg |
| Dimensions (L x W x H) | 70.0 × 45.0 × 100.0 cm |
