Random Access Sample Buffer (RASB) for IPHT
HITEC · Sample Handling Option

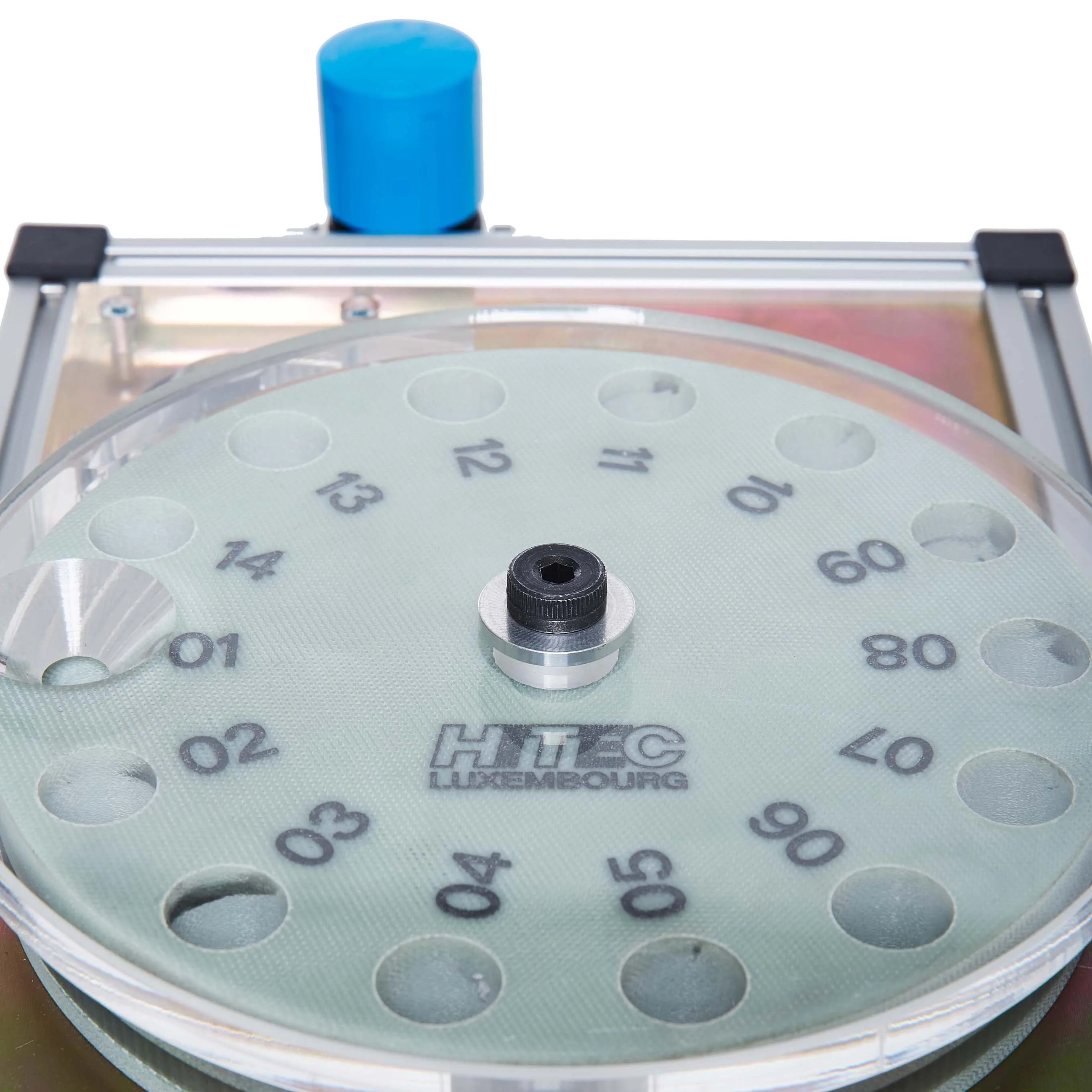

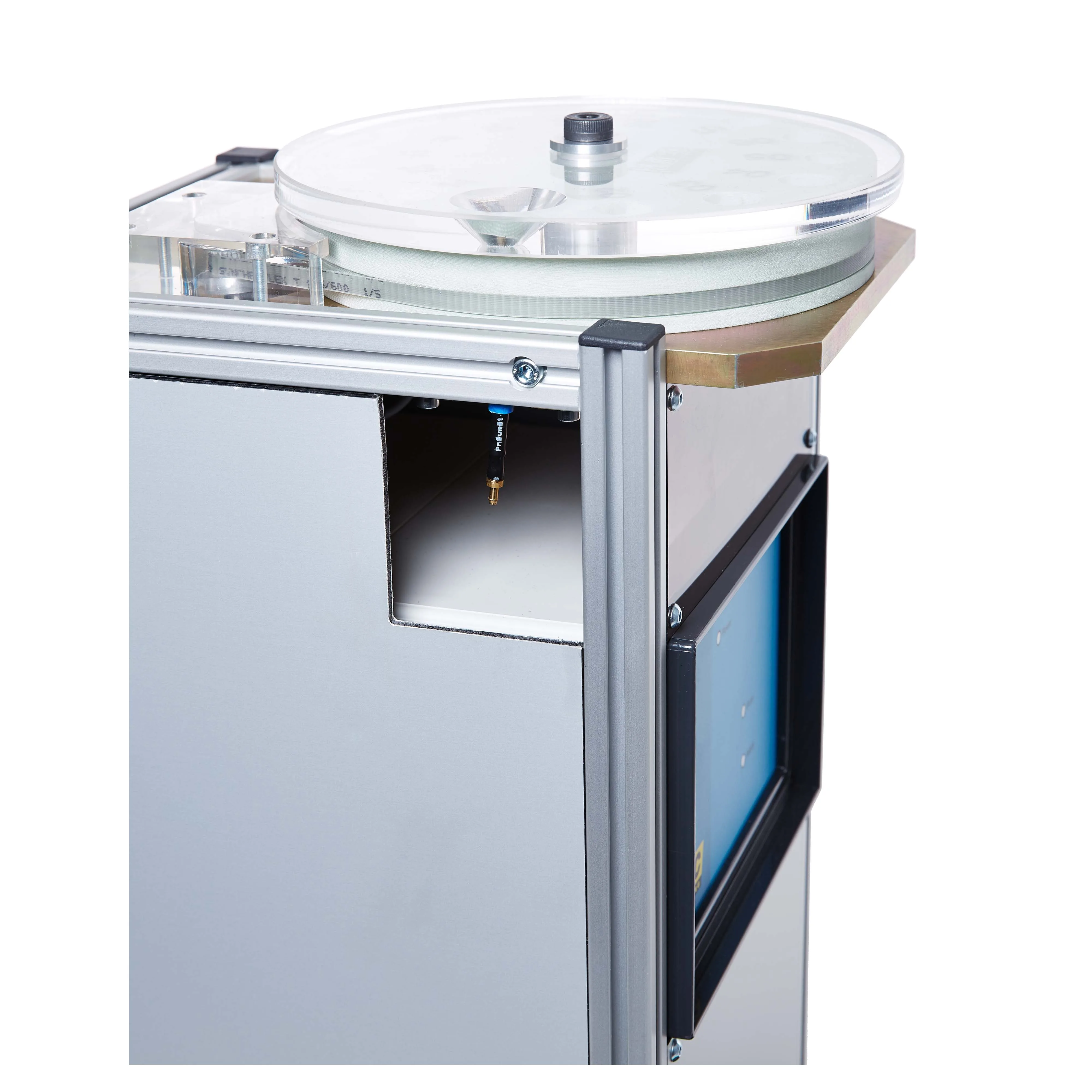

Motorised 14-position sample carousel option for the IPHT. It gives random access to any sample position under control of the IPHT software and pneumatically cleans the sample container between tests; it can be removed at any time to use the IPHT as a simple tester.
ข้อมูลจำเพาะ
| Sample capacity | 14 samples |
|---|---|
| Access | Random access to any position as selected in the control software |
| Carousel | Motorized, automatically transfers the samples to the tester |
| Connection | IPHT secondary serial port, controlled by the IPHT control software |
| Cover | Transparent, prevents accidental spillage |
| Cleaning | Pneumatics automatically clean residues from the IPHT sample container after each test |
| Dimensions (L x W x H) | 22.5 x 23.5 x 43.0 cm |
| Weight | 15 kg |
