R-VS 3000 Specimen preparation
MonTech · Specimen preparation

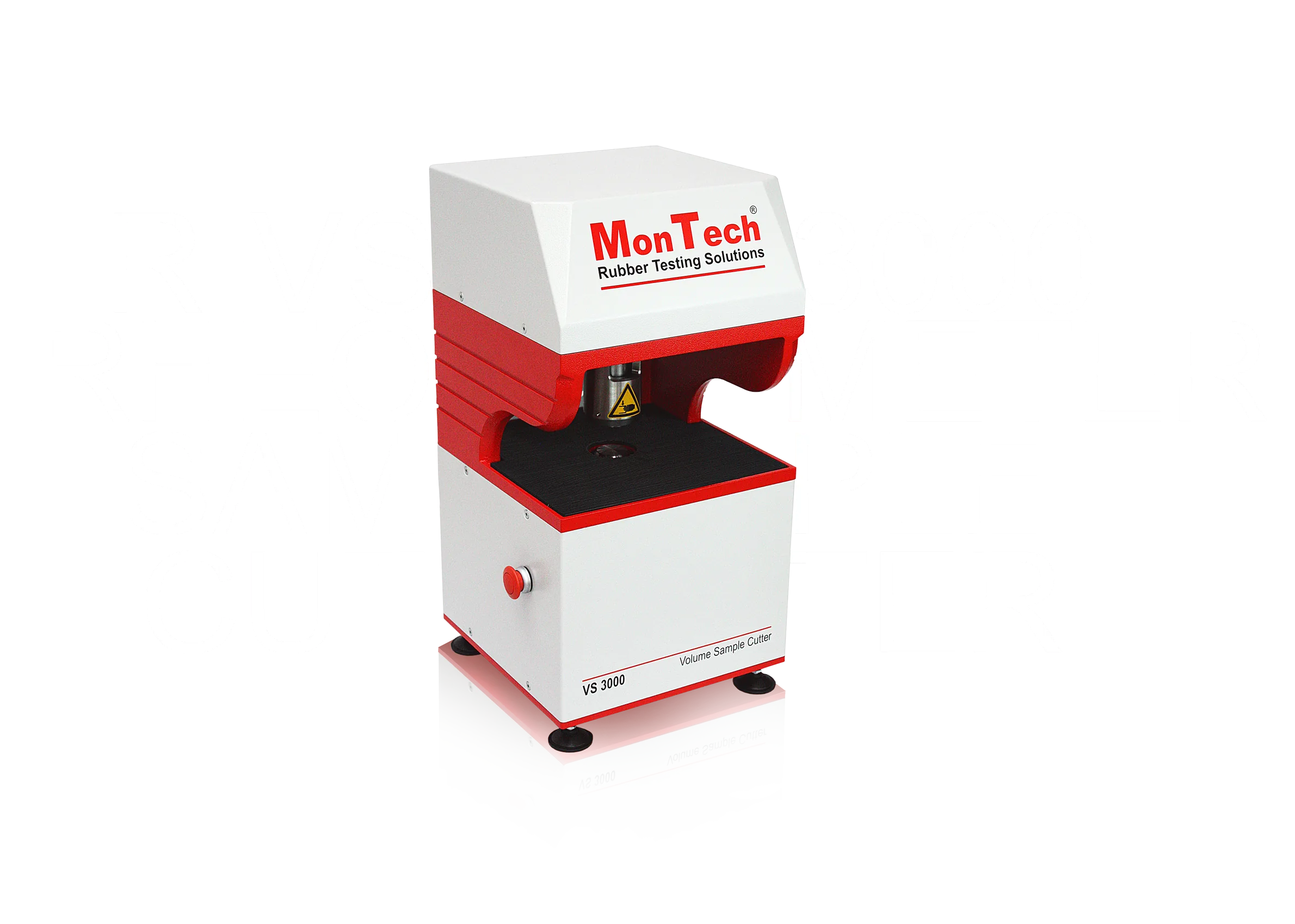

The R-VS 3000 Rheometer volumetric sample cutter with an all new C-frame design accessibility to the cutting area along with the overall stability of the cutter has been improved.
เอกสารดาวน์โหลด
- MonTech General Cataloguemontech-product-catalogue-2023.pdfดาวน์โหลด PDF
- MonTech Specimen and Die cuttingmontech-specimen-and-die-cutting-2021.pdfดาวน์โหลด PDF
- R-VS 3000 datasheetleaflet-r-vs-3000-2020.pdfดาวน์โหลด PDF
ข้อมูลจำเพาะ
| Cutting diameter | 35 mm (others optional) |
|---|---|
| Max. thickness | 18 mm |
| Reproducibility | 0.1 % |
| Sample volume (adjustable) | 2 cm³ to 12 cm³ (adjustable) |
| Compression - time (adjustable) | 1 sec to 15 sec (adjustable) |
| Dimensions (H x W x D) | 600 mm x 430 mm x 380 mm |
| Weight | approx. 90 kg net |
| Electrical | 90-250 V, 1 Amp, 47-63 Hz |
| Pneumatics | min. 5.0 Bar |
