Water Vapor Transmission Rate (WVTR) Tester / Water Vapor Permeability Tester | 572-CT
Toyo Seiki · Permeability / Gas Transmission Rate / Water Vapour Transmission Rate
The Water Vapor Transmission Rate (WVTR) Tester measures the water vapor permeability or water vapor permeability coefficient of packaging materials such as plastic film. Measures water vapor permeability and water vapor permeability coefficient of plastic films, etc. using the differential pressure method.
เอกสารดาวน์โหลด
คุณสมบัติ

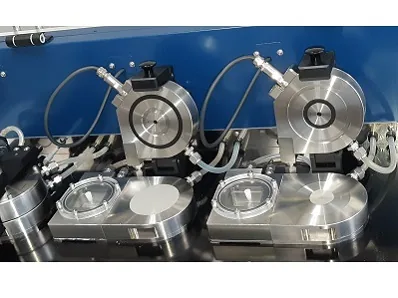

- ● Measuring section supports two types of specimen sizes. (measuring section diameter ∅ 30 mm and ∅ 70 mm)
- ● Modularization of the measuring section allows for additional modules to be added.
- ● High-precision vacuum pressure gauge with a reading accuracy of 0.25.
- ● E-mail function allows messages to be received when an error occurs or a test is completed.
ข้อมูลจำเพาะ
| ISO 15106-5 | Plastics — Film and sheeting — Determination of water vapour transmission rate — Part 5: Pressure sensor method |
|---|
ตารางเปรียบเทียบรุ่น
| CT1W | CT3W | |
| Number of specimen | 1 | 3 |
| Measurement range | 20-85°C, 80-90% RH (depends on the combination) | |
| Temperature control | Constant temperature water circulation (by chiller) | |
| Specimen dimensions | • 50×50mm (Meas. section ∅30mm, through area 707mm2) / • 90×90mm (Meas. section ∅70mm, through area 3848mm2) | |
| Water vapour transmission measurement range | • Type A: 0.001 to 1.000 [g/(m2・24h)] / • Type B: 0.01 to 100.00 [g/(m2・24h)] / Note: Vacuum pressure gauge: Accuracy 0.25% of reading | |
| Supply gas | 0.5MPa (gas cylinder recommended) | |
| Medium for water vapour | Water (Class A1 or better specified in JIS K 0557) | |
| Measurement item | • Water vapour transmission rate [g/(m2・24h)] / • Water vapour permeability coefficient (g・mm/(m2・24h)] | |
| PC & testing software | Provided as standard feature | |
| Option | N/A | Additional measurement module, model MCT1W (1 test station) / Max. 2 additional units possible |
| Power supply | • Main unit: Single-phase, AC100V, 50/60Hz, 5A / • PC: Single-phase, AC100V, 50/60Hz, 3A / • Vacuum pump: Single-phase, AC100V, 50/60Hz, 6A / • Chiller: Single-phase, AC100V, 50/60Hz, 15A | |
| Compressed air | 0.4MPa | |
| Dimensions | W550 × D560 × H470mm | W800 × D560 × H470mm |
| Weight (approx.) | 50kg | 70kg |
