- ISO 8295
- JIS K7125
- JIS P8147
- ASTM D1894
Coefficient of Friction (COF) Tester (Horizontal Plane) | 557-HM-3
Toyo Seiki · Abrasion / Coefficient of Friction (COF)

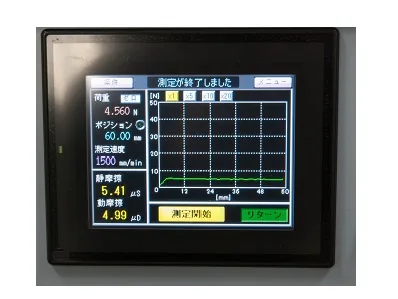

The HM-3 Friction Tester measures and digitally display friction coefficient of films and papers. OPTIONS
เอกสารดาวน์โหลด
ข้อมูลจำเพาะ
| ISO 8295 | Plastics — Film and sheeting — Determination of the coefficients of friction |
|---|---|
| JIS K 7125 | Plastics−Film and sheeting− Determination of the coefficients of friction |
| JIS P 8147 | Paper and board- Determination of the static and kinetic coefficients of friction |
| Model | HM-3 |
| Dimensions of table | W330 × D225 t=5 |
| Table travel distance | 1 to 200mm |
| Table speed range | 5 to 1500mm/min. |
| Load cell | ● 10N / ● 20N / ● 50N / (to be selected) |
| Sled | ● 200g, 63×63mm / ● 1000g, 60×100mm / (to be selected) |
| Power supply | Single-phase, AC100-240V, 50/60Hz, 0.2kVA |
| Dimensions | W540 (max.630) × D350 × H280mm / (W650 × D350 × H330mm, with optional safety cover) |
| Weight (approx.) | 19kg |
| Optional sled, 200g, 63.5 x 63.5mm | Reference standard: ASTM D1894 |
| SP-M20 | Test speed, 5 to 2000mm/min. |
| D3 | Testing software |
| PS-BS1 | Mini printer |
| ASC-LS | Safety cover |
| TBL-MG | Magnet holder type table |
| SL-MG2 | Sled with magnet holder, 63 x 63mm, 200g |
| SL-MG1 | Sled with magnet holder, 60 x 100mm, 1000g |
ตารางเปรียบเทียบรุ่น
| Item | Value |
|---|---|
| ISO 8295 | Plastics — Film and sheeting — Determination of the coefficients of friction |
| JIS K 7125 | Plastics−Film and sheeting− Determination of the coefficients of friction |
| JIS P 8147 | Paper and board- Determination of the static and kinetic coefficients of friction |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
| Item | Value |
|---|---|
| Model | HM-3 |
| Dimensions of table | W330 × D225 t=5 |
| Table travel distance | 1 to 200mm |
| Table speed range | 5 to 1500mm/min. |
| Load cell | ● 10N / ● 20N / ● 50N / (to be selected) |
| Sled | ● 200g, 63×63mm / ● 1000g, 60×100mm / (to be selected) |
| Power supply | Single-phase, AC100-240V, 50/60Hz, 0.2kVA |
| Dimensions | W540 (max.630) × D350 × H280mm / (W650 × D350 × H330mm, with optional safety cover) |
| Weight (approx.) | 19kg |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
| Item | Value |
|---|---|
| Optional sled, 200g, 63.5 x 63.5mm | Reference standard: ASTM D1894 |
| SP-M20 | Test speed, 5 to 2000mm/min. |
| D3 | Testing software |
| PS-BS1 | Mini printer |
| ASC-LS | Safety cover |
| TBL-MG | Magnet holder type table |
| SL-MG2 | Sled with magnet holder, 63 x 63mm, 200g |
| SL-MG1 | Sled with magnet holder, 60 x 100mm, 1000g |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
